DS-KD9403-E6
Face Recognition Door Station UD23390B
E N G L I S H

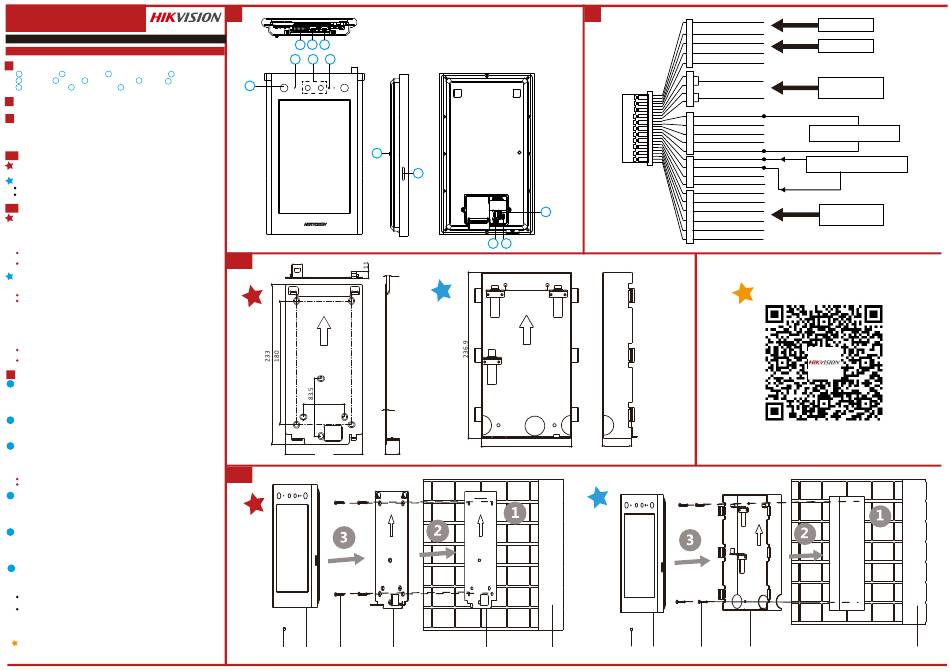

Diagram References
Appearance
1
1 Wiring Terminal 2 3 4
Network Interface Analog & RS-485 Interface IR Supplement Light
5 6 7 8
Microphone Camera Ambient Light Sensor TAMPER 9 Loudspeaker
10 Debugging Port 11 12
microUSB Interface TF Card Slot
Note: The appearance of the device vary according to different model. Refers to the actual device.
2 Terminal
Door station can be wired to alarm input device,door lock, door contact and so on.
3 Installation
Before you begin:
1. Accessories that you need to prepare for installation: Mounting plate and gang box.
2. Make sure the power supply meet the power requirements of the door station (12 VDC, 2 A).
3. Make sure all the related equipment is power-off during the installation.
4. Wire the cables during installation.
3.1 Accessory
Mounting Plate
The dimension of the mounting plate is 233 mm (W) × 112.4 mm (H) × 21 mm (D).
Gang Box
The dimension of the mounting plate is 236.9 mm (W) × 128.4 mm (H) × 40.8 mm (D).
The installation hole should be bigger than the actual size. The suggested dimension of the
installation hole is 237.5 mm (W) × 128.9 mm (H) × 41.3 mm (D).
3.2 Mounting
Surface Mounting
1. Paste the mounting template on the wall according to the installation requirements. Drill holes
acording to the template. Insert the expansion bolts into the screw holes.
2. Fix the mounting plate to the wall with 4 supplied screws.
3. Fix the device to the mounting plate and fix the device with the set screws.
Note:
Do not touch the SD card slot and other devices during the process of plugging in and unplugging the
power interface.
Apply Silicone sealant among the joints between the device and the wall (except the lower side) to
keep the raindrop from entering.
Flush Mounting
1. Cave an installation hole on the wall. Pull the cable out from the wall.
Note:
The suggested dimension of the installation hole is 237.5 mm (W) × 128.9 mm (H) × 41.3 mm (D).
The suggested length of the cables left outside is 250 mm.
2. Install the gang box into the wall.
a. Insert the gang box into the installation hole. Mark the gang box screw holes' position with a
marker, and take out the gang box.
b. Drill 4 screw holes according to the marks on the wall, and insert the expansion sleeves into the
screw holes.
c. Fix the gang box with 4 expansion bolts.
3. Insert the door station into the gang box and fix it with set screw.
Note:
Do not touch the SD card slot and other devices during the process of plugging in and unplugging the
power interface.
Apply Silicone sealant among the joints between the device and the wall (except the lower side) to keep
the raindrop from entering.
Configuration
4
Activate Device
1
You are required to activate the device first by setting a strong password for it before you can use the device.
1. Power on the device to enter the activation page automatically.
2. Create a password and confirm it.
3. Tap Next to activate the door station.
Note: Enter an 8 to 16 characters admin password.
Edit Network Parameters
2
1. Hold the main page and enter the admin password to enter the settings page.
2. Tap Network Settings and edit parameters including IP address, subnet mask and gateway.
3. Exit the page to save the settings.
No. Settings
3
1. Hold the main page and enter the admin password to enter the settings page.
2. Tap Local Settings and edit device No. including Phase No., Building No., Unit No., Floor No.,
No. and Community No.
3. Exit the page to save the settings.
Note:
The No. of main door station is 0. The No. of sub door station ranges from 1 to 8.
1 unit should add at least 1 main door station. Up to 8 sub door station can be added to the
main door station.
Add Resident
4
1. Hold the main page and enter the admin password to enter the settings page.
2. Tap User Management and add users.
3. Set room No. and add card, face and fingerprint. Select user permission to add.
4. Exit the page to save the settings.
Note: Refers to the User Manual for details.
Call Resident
5
The door station can work as main/sub door station, and outer door station, which correspond
to different calling resident modes respectively.
Call from Main/Sub Door Station
On the calling page, enter the room No. and tap call button to call resident.
Call from Outer Door Station
Enter Building No. + # + Unit No. + # + Room No. and tap call button to call resident.
6 Unlock Door
The device support unlock the door by presenting card, entering password, and fingerprint. Here takes unlock
by entering password and unlock by presenting card for example.
Note: You should create the password and add the card to the device first.
Unlock by Entering Password
Common Password
Tap call icon, enter # + password and tap ulock icon to unlock the door.
Public Password
Note: Create the public password via iVMS-4200 Client Software remotely first.
Tap call icon, enter # + public password + # to unlock the door.
Unlock by Face
Face forward at the camera to unlock.
Note:The door station can be configured via iVMS-4200 Client Software remotely.
Refer to Video Intercom Face Recognition Door Station User Manual (scan the QR code) for details.
1
1 2 3
5 6 7
4
8
3.1
4
80
60
2
21
112.4
3.2
Set Screw Door Station Screws Mounting Plate
2
9
12
10 11
60
Unit:mm 128.4
Mounting Template Wall
Yellow
485A+
485A-
Blue
Green 485B+
485B-
White
Yellow/Black
GND
DC 12V IN
Red
Black GND
Yellow/Red AIN1
Yellow/White AIN2
AIN3
Yellow/Blue
Yellow/Green AIN4
Blue/Black
GND
Brown
AO1+
Grey
AO1-
Orange
AO2+
Purple
AO2-
White/Blue
NC1
White/Green
COM1
White/Red
NO1
Grey/Blue
NC2
Grey/Green COM2
Grey/Red NO2
40.8 Unit:mm
Set Screw Door Station Screws Gang Box
Card Reader
Reserved
Power Input
Alarm Input Device
Alarm Output Device
Lock Control
Wall
