It takes two three-module gang boxes. The dimension of the gang box is: 338.8(L) ×
134 (W) × 56(D) mm.
•
The dimensions above are for reference only. The actual size can be slightly different from the theoretical
dimension.
Steps:
1. Cave the installation hole, and pull the cable out.
The suggested dimension of installation hole is 321.8(L) × 315(W) × 45.5(D) mm. The suggested
length of cables left outside is 270 mm.
Video IntercomModule Door Station · User Manual

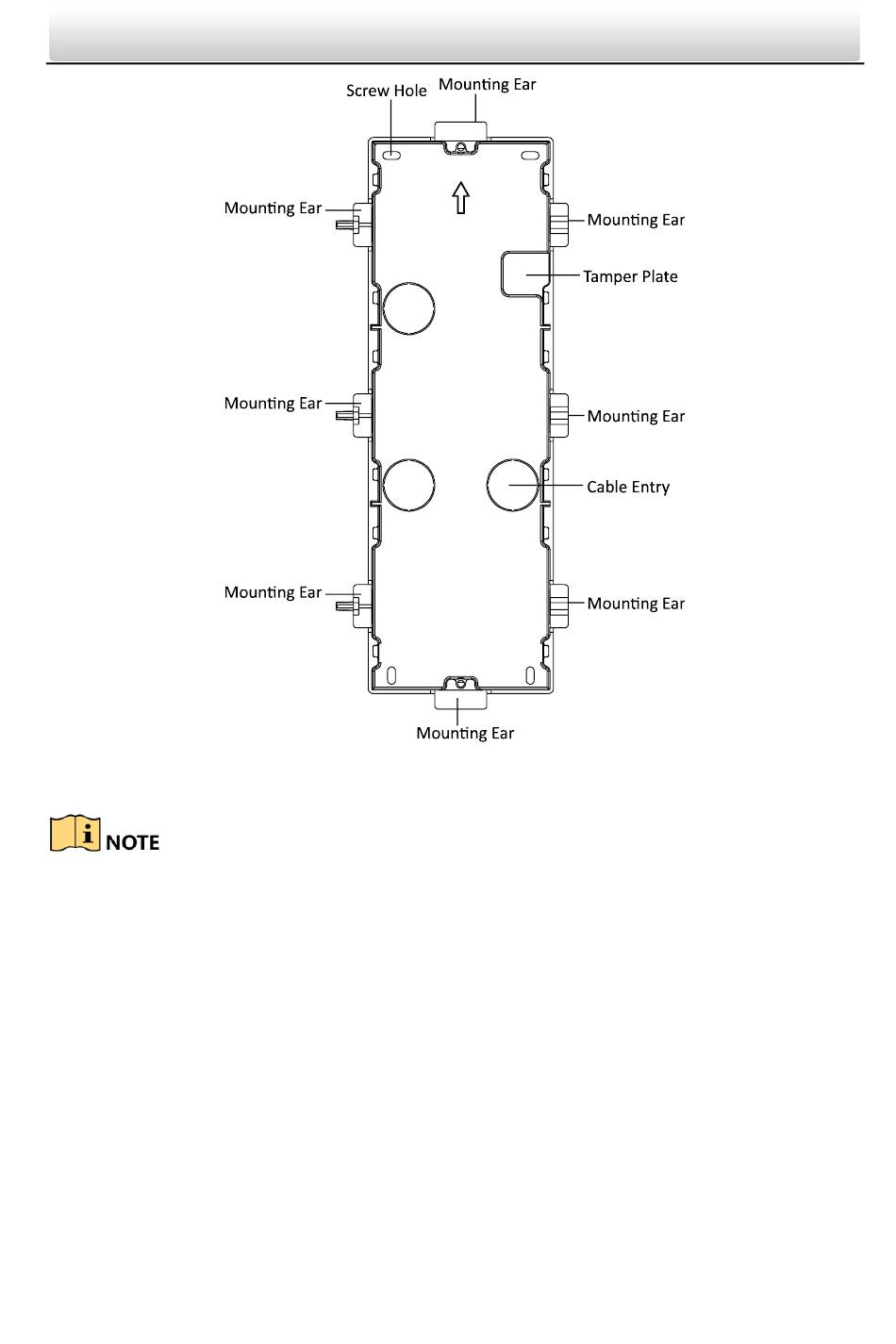

Figure 4-54 Appearance Description
52
