HIKVISION DS-KH6320-LE1 Kurzanleitung

DS-KH6320-LE1(B)
NetworkIndoorSta�on UD26870B-C
ENGLISH

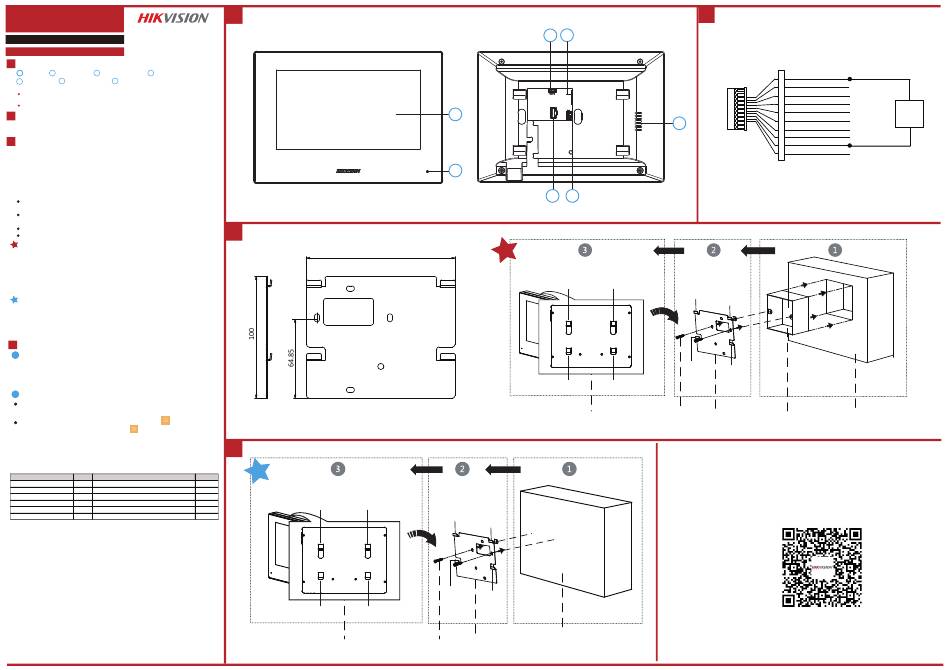

Diagram References
1 Appearance
1 Screen 2 Microphone 3 Debugging Port 4 Network Interface
6 Alarm Terminal 7 Power Supply Terminal
5 Loudspeaker
Note:
The appearance of the device varies according to different models. Refers to the actual device for detailed
informa�on.
The debugging port is used for debugging only.
2 Terminal and Wiring
There are 10 pins in the terminal on the rear panel of the indoor sta�on: 1 reserved pins, 8
alarm input pins, and 1 GND pin.
3 Installation
It supports wall moun�ng. There are two installa�on modes.
Installa�on Accessory Descrip�on
The wall moun�ng plate and junc�on box are required to install the indoor sta�on onto
the wall.
The dimension of junc�on box should be 75 mm (width) × 75 mm (length) ×
(depth). The dimension of wall moun�ng plate is shown.
Before You Start
Make sure the device in the package is in good condi�on and all the assembly parts
are included.
The power supply the indoor sta�on supports is 12 VDC. Or the standard PoE is
supported. Please make sure your power supply matches your indoor sta�on.
Make sure all related equipments are power-off during the installa�on.
Check the product specifica�on for the installa�on environment.
Wall Moun�ng with junc�on Box
1. Chisel a hole in the wall. The size of the hole should be 76 mm (width) × 76 mm
(length) × 50 mm (depth).
2. Insert the junc�on box to the hole chiseled on the wall.
3. Fix the wall moun�ng plate to the junc�on box with 2 screws.
4. Hook the indoor sta�on to the wall moun�ng plate �ghtly by inser�ng the plate
hooks into the slots on the rear panel of the indoor sta�on, during which the lock catch
will be locked automa�cally.
Wall Moun�ng without junc�on Box
1. Insert 2 expansion tubes into the wall.
2. Fix the wall moun�ng plate to the junc�on box with 2 screws.
3. Hook the indoor sta�on to the wall moun�ng plate �ghtly by inser�ng the plate
hooks into the slots on the rear panel of the indoor sta�on, during which the lock catch
will be locked automa�cally.
Getting Started
4
Activate Indoor Station
1
You are required to activate the device first by setting a strong password before
you can use the device.
1. Power on the device. It will enter the activation page automatically.
2. Create a password and confirm it.
3. Tap OK to activate the indoor station.
Quick Configuration
2
After Activation, you can follow the wizard to complete quick configuration, including
language settings, password reset method settings, network settings, indoor station
settings, time settings, linked devices settings, etc.
If you want to enter the wizard page, you can tap Settings → → Configuration,
and enter the admin (activation) password. Tap to enter the system maintenance
page.
The power supply must conform to LPS. The recommended adaptor models and manufacturers are shown
as below. Use the attached adapter, and do not change the adaptor randomly.
Model Current Manufacturer
ADS-26FSG-12 12024EPG 2A SHENZHEN HONOR ELECTRONIC CO.,LTD
ADS-26FSG-12 12024EPCU/EPC 2A SHENZHEN HONOR ELECTRONIC CO.,LTD
ADS-26FSG-12 12024EPB 2A SHENZHEN HONOR ELECTRONIC CO.,LTD
MSA-C2000IC12.0-24P-BR 2A Moso Power Supply Technology Co.,Ltd.
MSA-C2000IC12.0-24P-AU 2A Moso Power Supply Technology Co.,Ltd.
ADS-26FSG-12 12024EPI-01 2A SHENZHEN HONOR ELECTRONIC CO.,LTD
1 1
50 mm
3
3
Standard
CEE
NEMA
BS
Lock Catch Lock Catch
NBR
AS
IS
Lock Catch Lock Catch
Rear Panel (without Interface)
3
1
2
6
122
Lock Catch
Lock Catch
Rear Panel (without Interface)
Unit:mm
Hook
Hook
Hook
Hook
Screw Wall Moun�ng Plate
2
4
5
7
Lock Catch
Hook
Hook
Hook
Hook
Lock Catch
Screw Wall Moun�ng Plate
Wall
Black AIN8
Black
AIN7
White AIN6
White AIN5
Alarm
White
AIN4
Input
White AIN3
Device
White AIN2
White AIN1
White GND
White
RES
Junc�on Box Wall
Scan the QR code to get User Manual
for detailed informa�on.
