8. Connect the cables and module-connecting line 1 to the corresponding interfaces of the main unit, then
place the main unit into the upper grid.
Connect the other end of the module-connecting line1 to the input interface of the sub module. Connect
all sub modules via module-connecting lines.

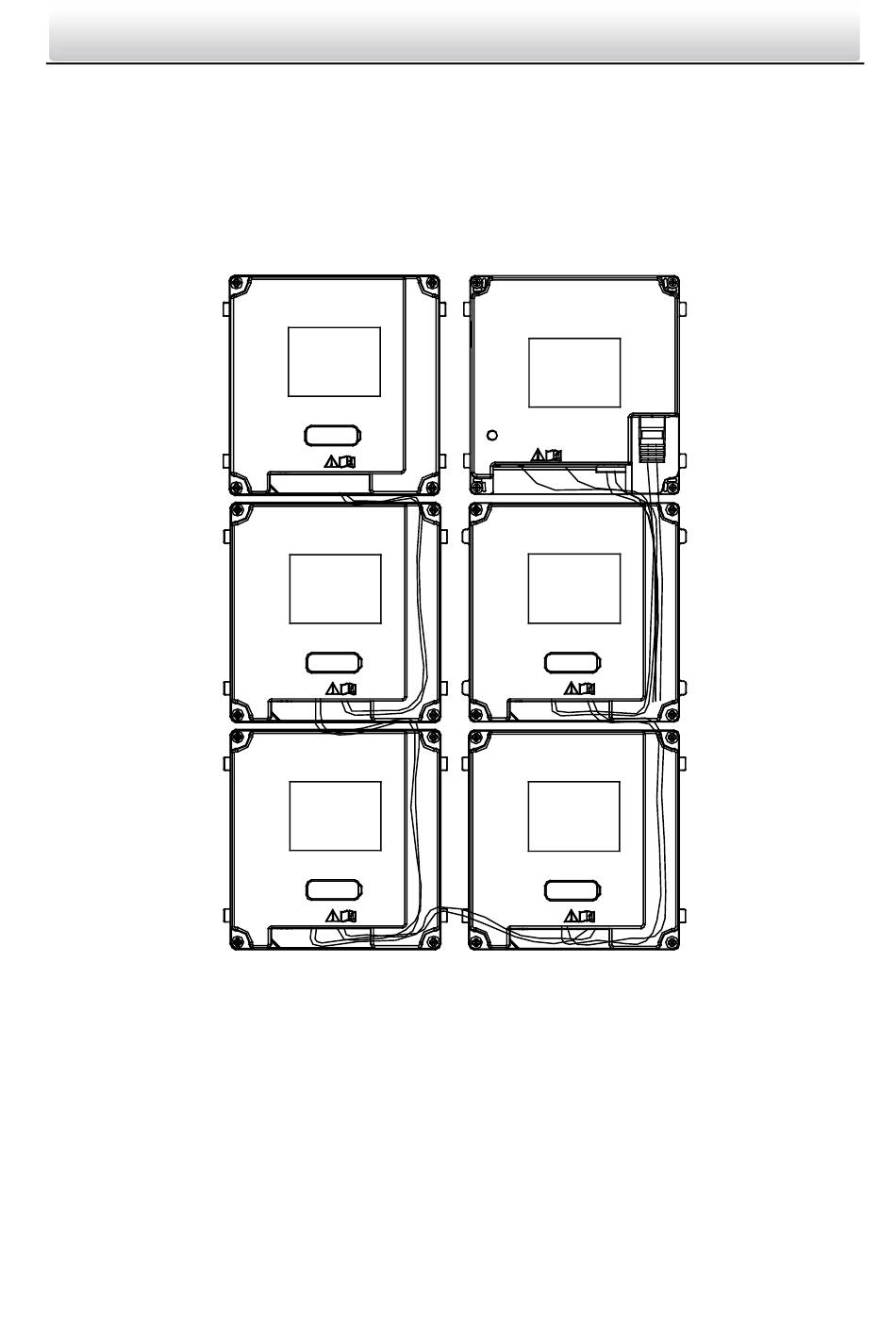

Organize the line with cable tie in the package. The suggested line connection picture as below.
9. Insert the modules in to the frame after wiring. Main unit must be placed in the top grid on the left.
Video IntercomModule Door Station · User Manual
Figure 4-49 Line Connection Effect Picture
48
