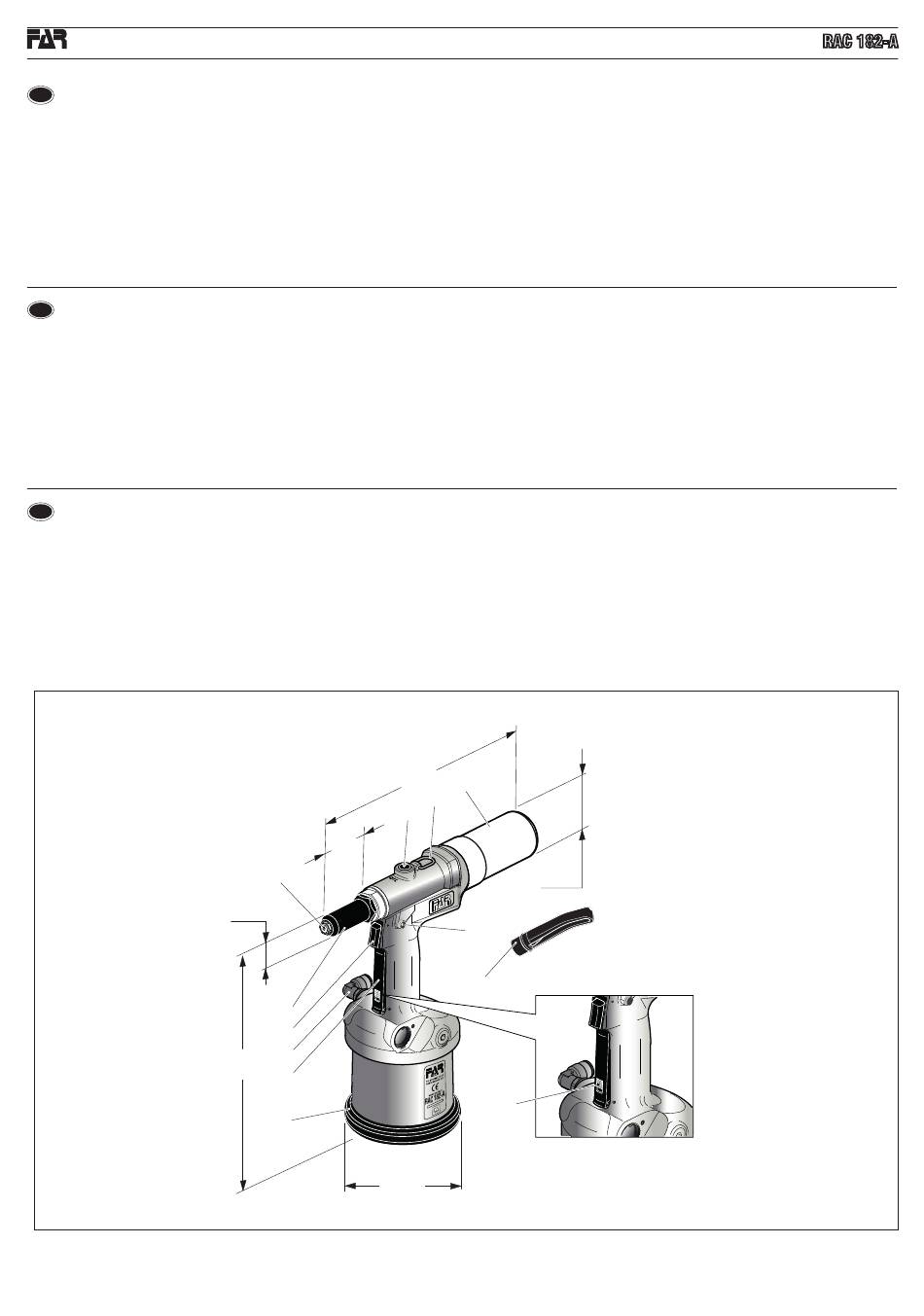

MAIN COMPONENTS

GB
A) ........................................................................................ Oil tank plug
B) ............................................................................... Balancer connection
C) ..................................................................................... Nails container
D) .......................................................................... Suction regulation knob
E) ............................................................................Rubber protective base
F) ...................................................................... Compressed air connection

PARTI PRINCIPALI

I
A) ................................................................................ Tappo serbatoio olio
B) .................................................................................Attacco bilanciatore
C) .................................................................................. Contenitore chiodi
D) ................................................................. Pomello regolazione aspirazione
E) ..............................................................................Fondello di protezione
F) .................................................................... Allacciamento aria compressa
F

PARTIES PRINCIPALES

A) ......................................................................... Bouchon réservoir d'huile
B) ....................................................................................Etrier de support
C) .................................................................................... Conteneur clous
D) ........................................................................ Bouton réglage aspiration
E) ................................................................................. Culot de protection
F) .......................................................................... Raccord d'air comprimé
18
A
57
L
Ø 23
I
H
F
278,5
G
E
Ø 115
75036144 - RAC182-A – rev 00 - ( 03-2021 )
G) ..................................................................................... Suction control
H) ........................................................................... Tensile strenght button
I) ..............................................................................Sleeve carrying nozzle
L) ............................................................................................... Nozzle
M) ........................................................................ Suction Device always on
T) .......................................................................................... Nails baffle
G) .............................................................................. Comando aspirazione
H) ................................................................................Pulsante di trazione
I) ............................................................................... Cannotto porta ugello
L) ................................................................................................ Ugello
M) ........................................................... Dispositivo aspirazione sempre attiva
T) .................................................................................... Deflettore chiodi
G) ..............................................................................Commande aspiration
H) .................................................................................Bouton de traction
I) ..................................................................................... Tube porte buse
L) ..................................................................................................Buse
M) ...........................................................Dispositif d'aspiration toujours active
T) .................................................................................... Déflecteur clous
295
C
B
Ø 50
D
T
M
RAC 182-A
