Installation and user manual

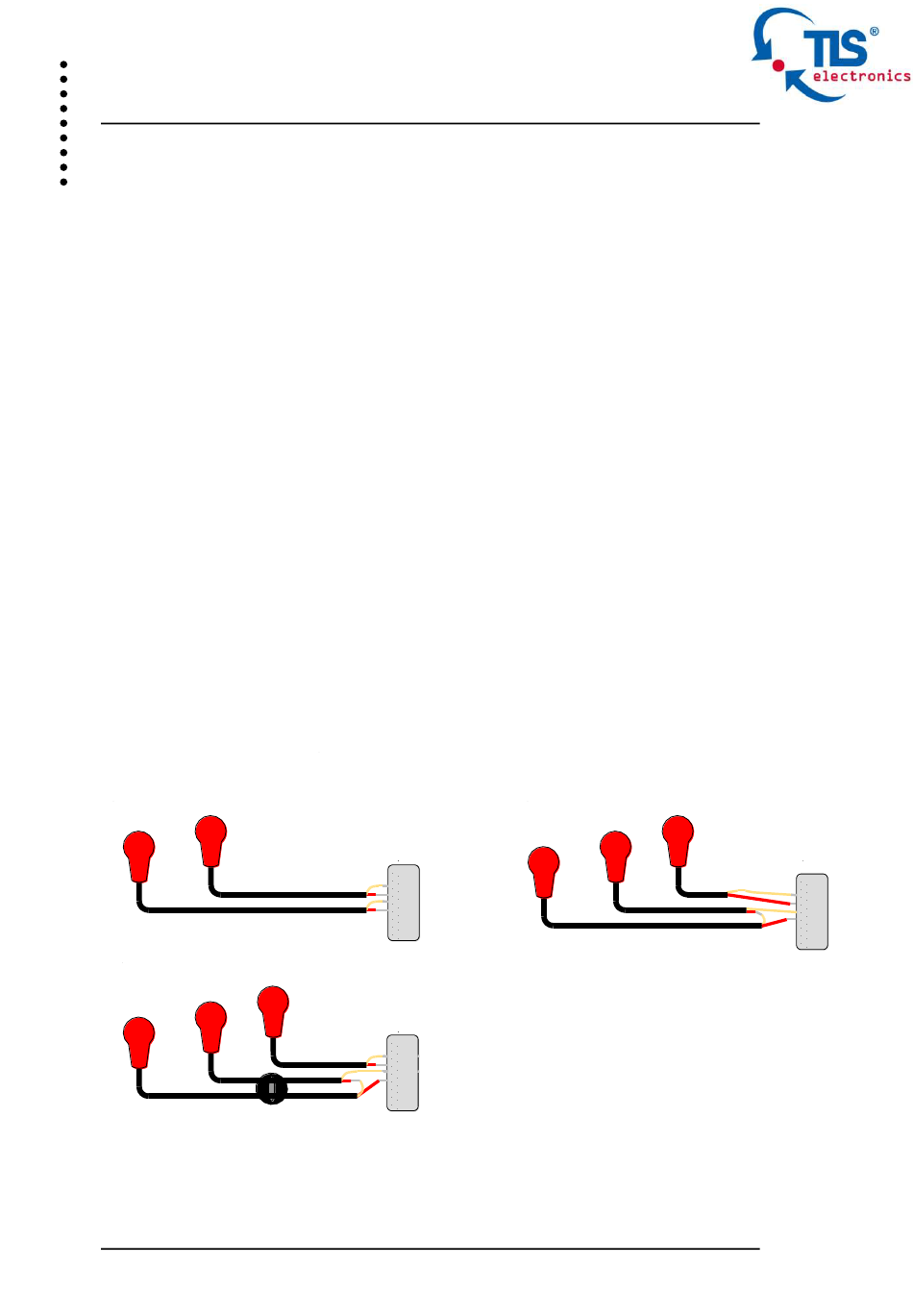

C 4.5.2 Connection examples IR emitter
2 x IR Emitter single:
Here you can connect 2 single IR emitters for IR controllable devices
to each output. The IR emitters are connected respectively to the
terminals 3, 4 (IR1 + GND) as well as 5, 6 (IR2 + GND).
3 x IR Emitter single:
Here you can connect 2 single IR emitters to one output. These are
connected to the terminals 5 and 6 (IR2 + GND).
Connect one more emitter to the terminals 3 and 4 (IR1 + GND).
1 x IR emitter single and 1 x IR emitter double:
Here you can connect 1 single IR emitter and 1 double IR emitter to
one output each. The single IR emitter is connected to the terminals
3, 4 (IR1 + GND), whilst the double IR emitter is connected to 5, 6
(IR2 + GND).
2x 8640027, IR Emitter einfach
1x 8640027, IR Emitter einfach
1x 8640028, IR Emitter zweifach
4.5.3 Infrarot Verlängerung
Stand 03/21
Sketch 8
Anschlussmöglichkeiten IR Emitter
X1
PWR
1
GND
2
IR 1
3
4
GND
5
IR 2
6
GND
TxD
7
GND
8
9
IN SS
X1
C
PWR
1
GND
2
IR 1
3
4
GND
5
IR 2
6
GND
TxD
7
GND
8
9
IN SS
3x 8640027, IR Emitter einfach
X1
PWR
1
GND
2
IR 1
3
4
GND
5
IR 2
6
GND
7
TxD
8
GND
9
IN SS
15
