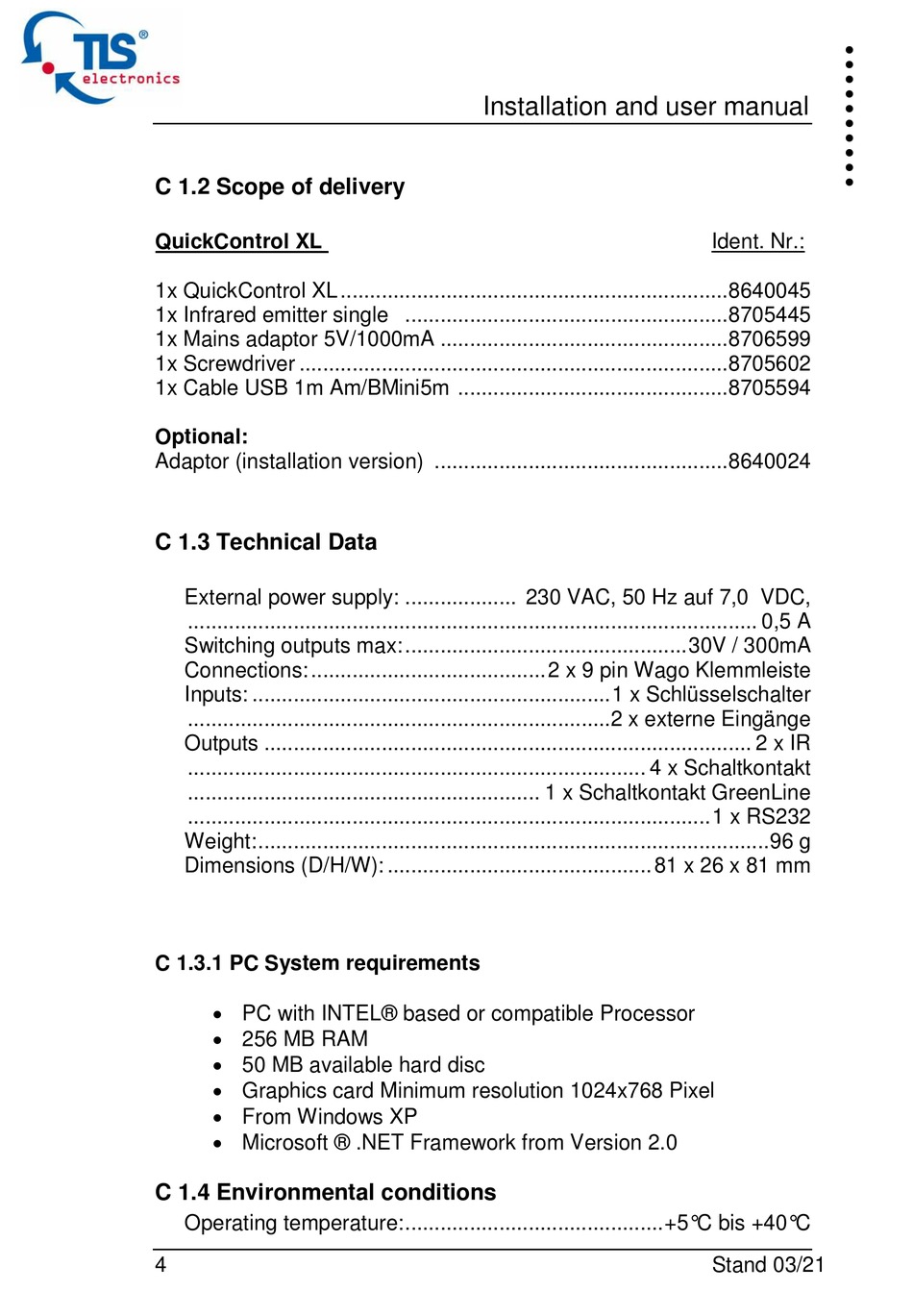

C 1.2 Scope of delivery
QuickControl XL
1x QuickControl XL .................................................................. 8640045
1x Infrared emitter single ....................................................... 8705445
1x Mains adaptor 5V/1000mA ................................................. 8706599
1x Screwdriver ......................................................................... 8705602
1x Cable USB 1m Am/BMini5m .............................................. 8705594
Optional:
Adaptor (installation version) .................................................. 8640024
C 1.3 Technical Data
External power supply: ................... 230 VAC, 50 Hz auf 7,0 VDC,
................................................................................................. 0,5 A
Switching outputs max: ................................................ 30V / 300mA
Connections: ........................................ 2 x 9 pin Wago Klemmleiste
Inputs: ............................................................. 1 x Schlüsselschalter
........................................................................2 x externe Eingänge
Outputs ................................................................................... 2 x IR
.............................................................................. 4 x Schaltkontakt
............................................................ 1 x Schaltkontakt GreenLine
......................................................................................... 1 x RS232
Weight: ....................................................................................... 96 g
Dimensions (D/H/W): ............................................. 81 x 26 x 81 mm
C 1.3.1 PC System requirements
 PC with INTEL® based or compatible Processor
 256 MB RAM
 50 MB available hard disc
 Graphics card Minimum resolution 1024x768 Pixel
 From Windows XP
 Microsoft ® .NET Framework from Version 2.0
C 1.4 Environmental conditions
Operating temperature: ............................................ +5°C bis +40°C
