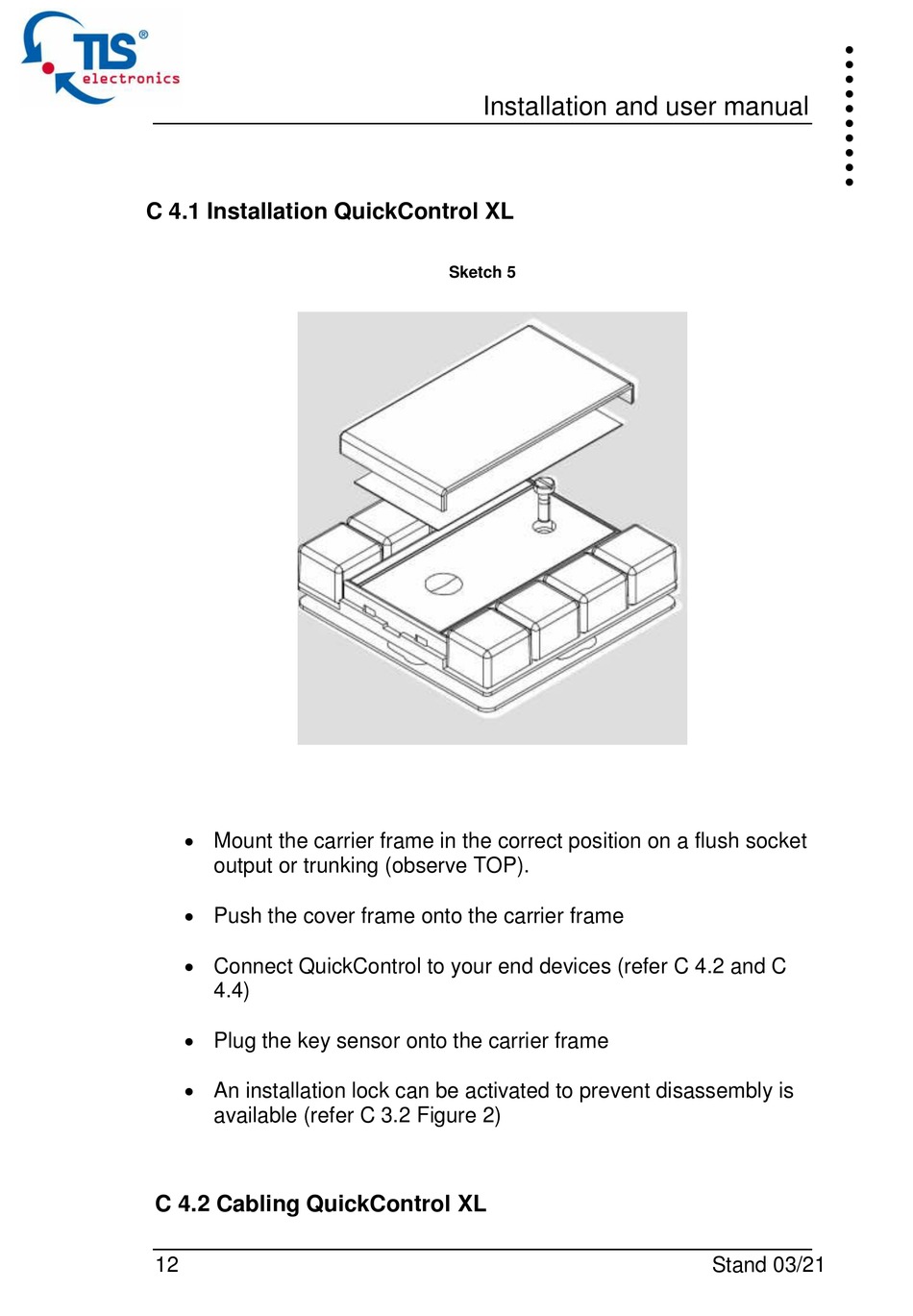

C 4.1 Installation QuickControl XL
 Mount the carrier frame in the correct position on a flush socket
output or trunking (observe TOP).
 Push the cover frame onto the carrier frame
 Connect QuickControl to your end devices (refer C 4.2 and C
4.4)
 Plug the key sensor onto the carrier frame
 An installation lock can be activated to prevent disassembly is
available (refer C 3.2 Figure 2)
C 4.2 Cabling QuickControl XL
12
Installation and user manual
Sketch 5
