can be loosened at the recess. The mechanical installation lock
and the PC connection, operating mode switch and infrared
learning eye can now be used.

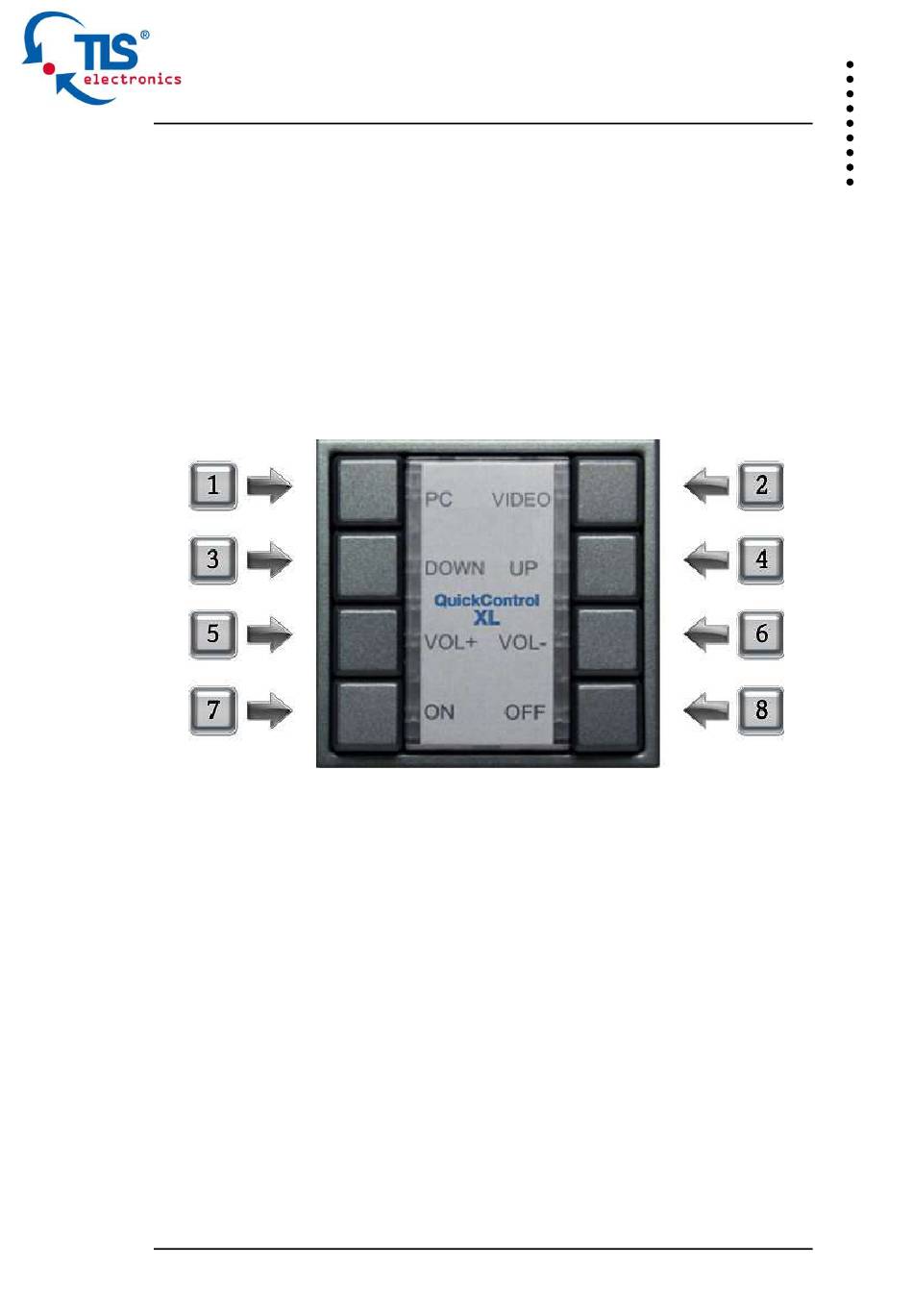

C 3.3 Button numbering
C 3.4 Rear view with cable terminal strips
Two 9-pole terminal strips X1 and X2 are located at the back of
QuickControl. The mains adaptor, 2 infrared emitters, 4 relays and
the mechanical installation lock can be connected to these terminal
strips (key switch to lock the keypad against unauthorised users).
10
Installation and user manual
Sketch 3
Sketch 4
