Press the mounting pins down with a screwdriver (refer C 3.3 Figure
3). This opens the cable terminal underneath. Then insert the
connecting cable of the mains adaptor, infrared receiver, relay etc.
into the opening. Release the mounting pins and the connecting
cable is fastened.

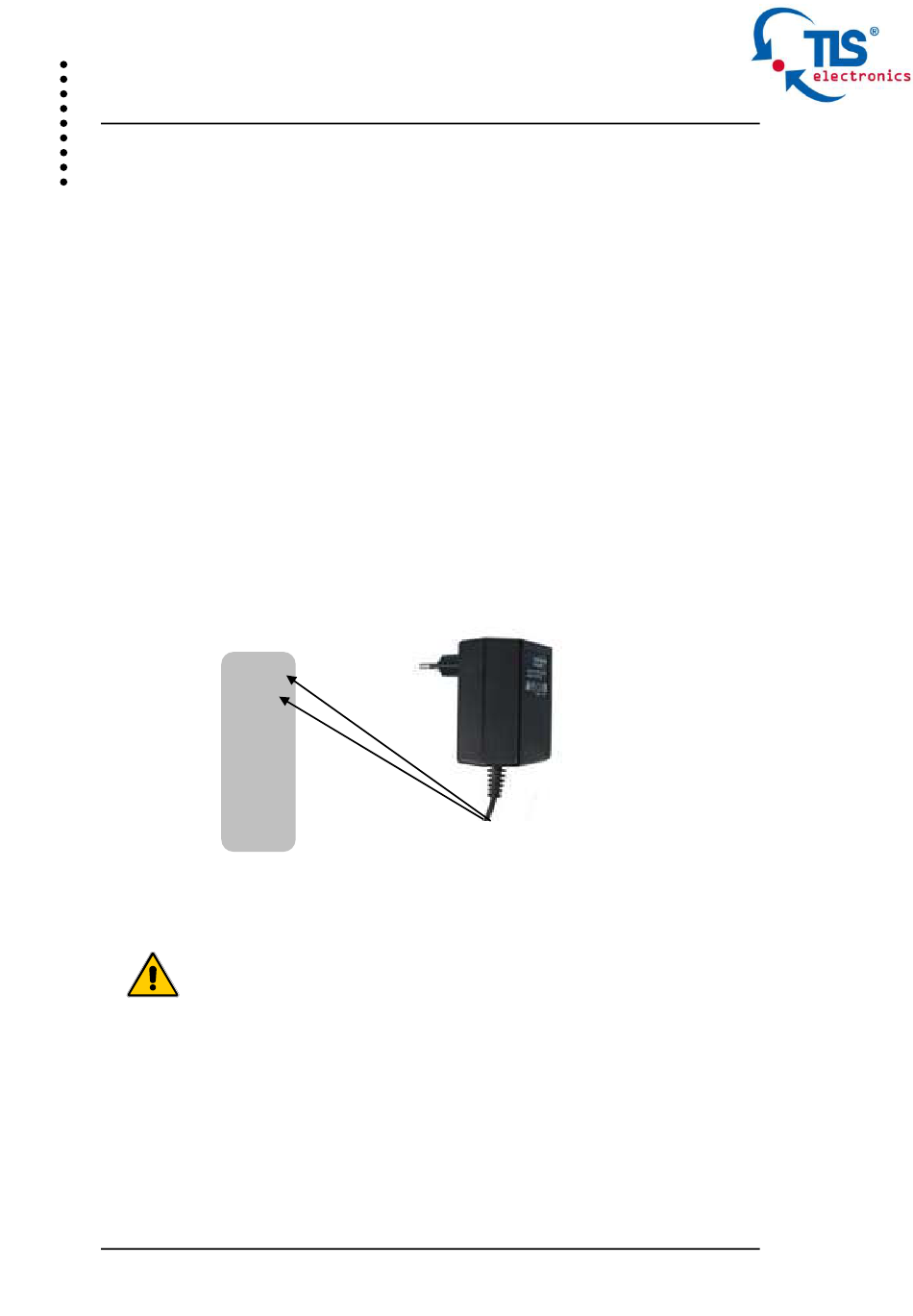

C 4.3 AC adaptor connection
Connect the AC adaptor cable to terminals 1 and 2 (Power + GND) of
the terminal strip X1 (refer C 4.2 Figure 5). The positive supply
voltage is connected to terminal 1 and the earth lead to terminal 2.
X1
1 Power
2 GND
3 IR1
4 GND
5 IR2
6 GND
7 TxD
8 GND
9 IN-SS
Ensure that the white marked cable of the mains adaptor is
connected to the Power terminal.
C 4.4 AC adaptor extension
Stand 03/21
Sketch 6
