Overview - Flex Lde 16-8 125 R Originalbetriebsanleitung

LD 16-8 125 R / LDE 16-8 125 R

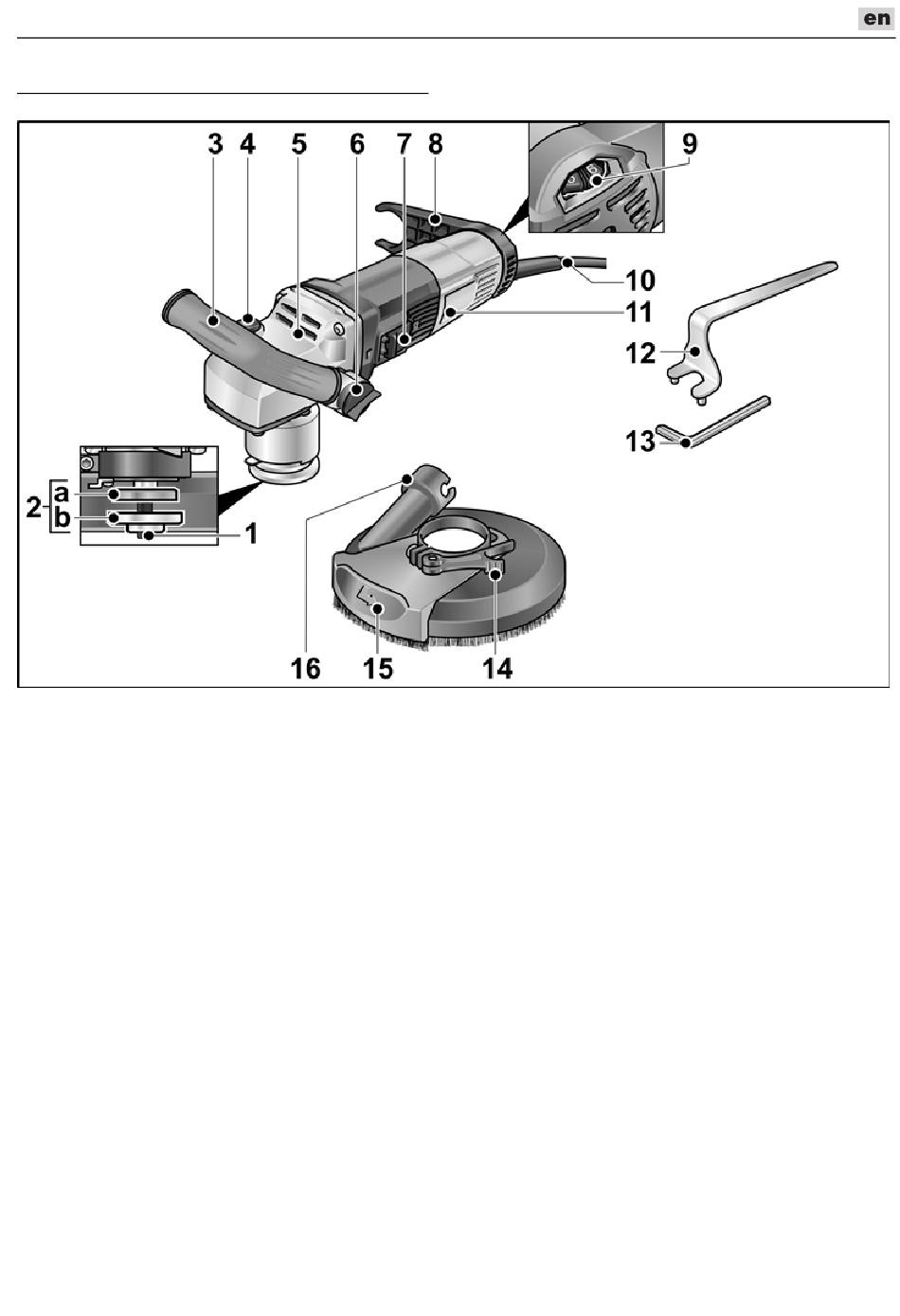

Overview

1 Spindle with threaded flange
2 a Clamping flange
b Clamping nut
3 Handle, adjustable
4 Spindle lock
For holding the spindle during tool
change.
5 Gear head
With air outlet and direction of rotation
arrow.
6 Handle adjustment knob
7 Rocker switch
For switching on and off.
With detent position for non-stop
operation.
8 Hose retainer
9 Setting wheel for speed preselection
10 4.0 m power cord with plug
11 Rating plate
12 Stop wrench
13 Allen key
14 Clamping lever
15 Swivelling edge segment
16 Connection for extractor
