4 Controls
5 Mounting the Print Server
The print server allows to connect up to four printers or plotters.
1. Connect the print server to the printer
• Turn the printer off.
• Disconnect the printer's power cord.
• Remove the data cable connecting the printer to the computer.
• Connect the data cable to the box port.
2. Connect the print server to the network
• Connect the network cable to the print server.
• Connect the print server's power cord to the print server.
• Turn the print server on.
• Connect the printer's power cord to the printer.
• Turn the printer on.
• Press the status button in order to print out a status page.
Hardware Installation Guide
Downloaded from www.Manualslib.com
MHAB-EB-III-IC144 Vers. 1.3
manuals search engine

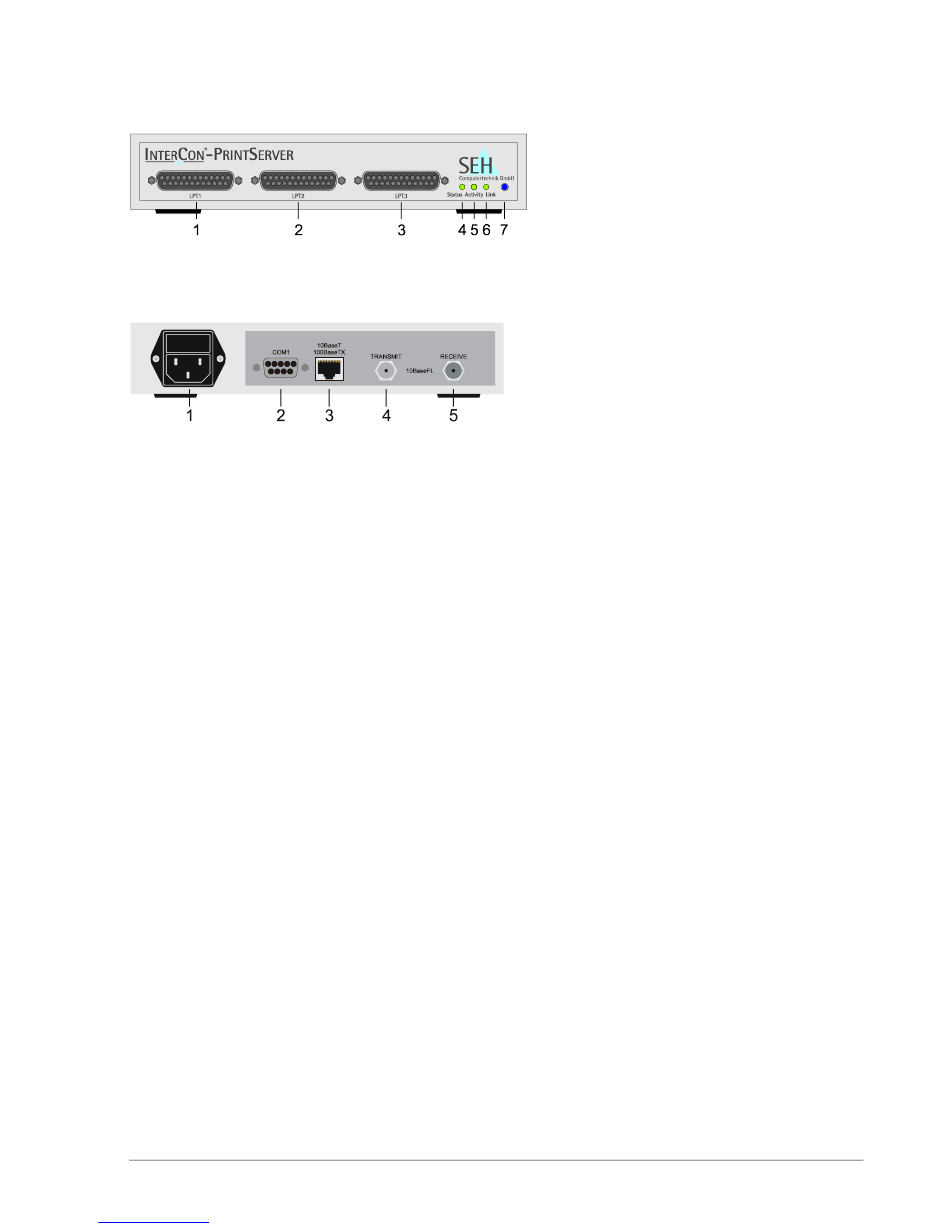

1 Centronics connector for printer 1 (LPT1)
2 Centronics connector for printer 2 (LPT2)
3 Centronics connector for printer 3 (LPT3)
4 Green LED status indicator
5 Yellow LED activity indicator
6 Green LED link indicator
7 Status button
1 Power supply
2 D-Sub9 connector as serial interface COM1
3 RJ-45 connector for 100BaseTX and
10BaseT
4 TX
5 RX
