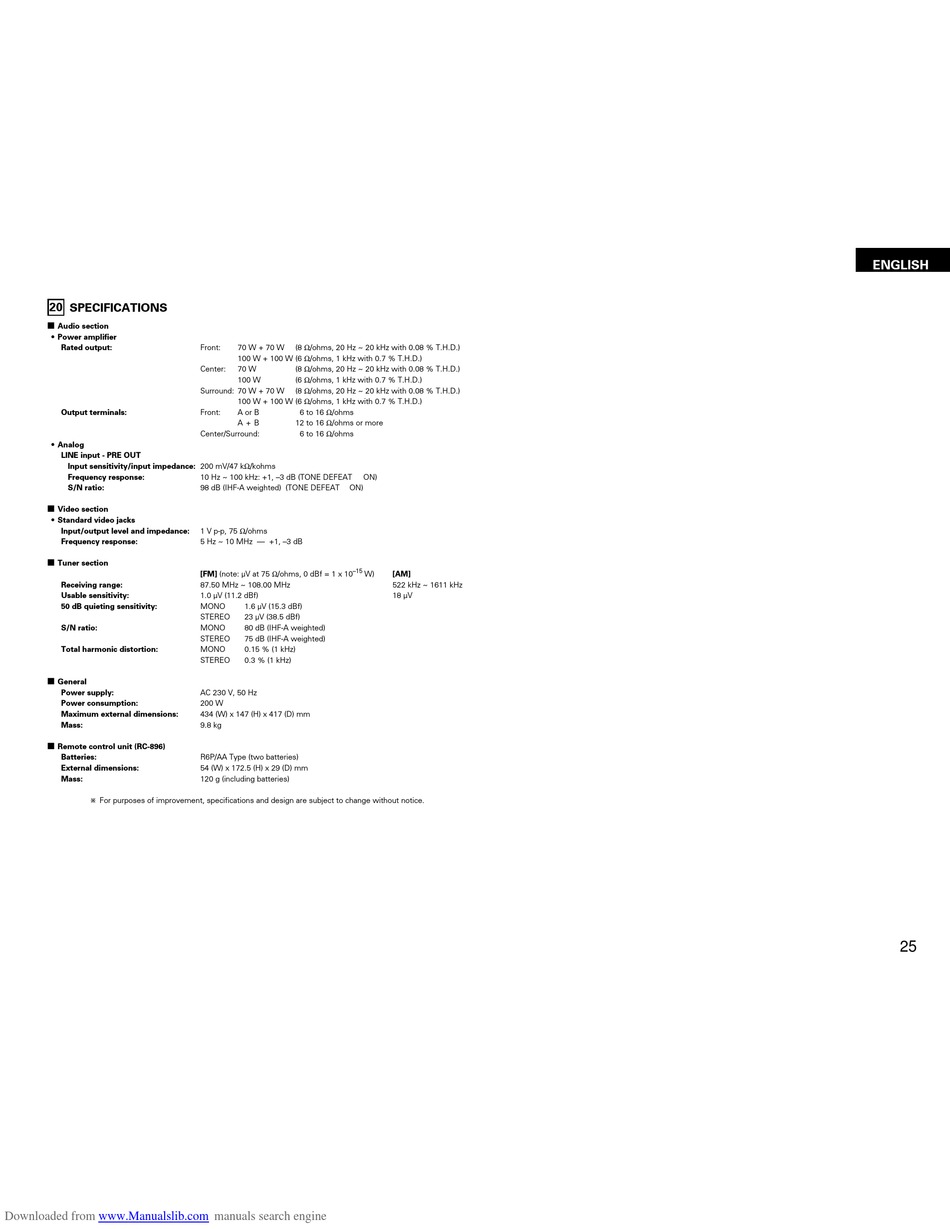

20 SPECIFICATIONS

2 Audio section
• Power amplifier
Rated output:
Output terminals:
• Analog
LINE input - PRE OUT
Input sensitivity/input impedance: 200 mV/47 kΩ/kohms
Frequency response:
S/N ratio:
2 Video section
• Standard video jacks
Input/output level and impedance:
Frequency response:
2 Tuner section
Receiving range:
Usable sensitivity:
50 dB quieting sensitivity:
S/N ratio:
Total harmonic distortion:
2 General
Power supply:
Power consumption:
Maximum external dimensions:
Mass:
2 Remote control unit (RC-896)
Batteries:
External dimensions:
Mass:
For purposes of improvement, specifications and design are subject to change without notice.
Downloaded from www.Manualslib.com
(8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08 % T.H.D.)
Front: 70 W + 70 W
100 W + 100 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
(8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08 % T.H.D.)
Center: 70 W
(6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
100 W
(8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08 % T.H.D.)
Surround: 70 W + 70 W
100 W + 100 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
16 to 16 Ω/ohms
Front: A or B
12 to 16 Ω/ohms or more
A + B
16 to 16 Ω/ohms
Center/Surround:
10 Hz ~ 100 kHz: +1, –3 dB (TONE DEFEAT ON)
98 dB (IHF-A weighted) (TONE DEFEAT ON)
1 V p-p, 75 Ω/ohms
5 Hz ~ 10 MHz — +1, –3 dB
[FM] (note: µV at 75 Ω/ohms, 0 dBf = 1 x 10 –15
W)
87.50 MHz ~ 108.00 MHz
1.0 µV (11.2 dBf)
MONO 1.6 µV (15.3 dBf)
STEREO 23 µV (38.5 dBf)
MONO 80 dB (IHF-A weighted)
STEREO 75 dB (IHF-A weighted)
MONO 0.15 % (1 kHz)
STEREO 0.3 % (1 kHz)
AC 230 V, 50 Hz
200 W
434 (W) x 147 (H) x 417 (D) mm
9.8 kg
R6P/AA Type (two batteries)
54 (W) x 172.5 (H) x 29 (D) mm
120 g (including batteries)
manuals search engine
[AM]
522 kHz ~ 1611 kHz
18 µV
ENGLISH
25
