3 Handlebar
The handlebar is used to hold, guide and transport the
lawn mower.
4 Control bar for self-propulsion
The control bar for self-propulsion engages and
disengages self-propulsion.
5 Lever
The lever is used to set the self-propulsion speed.
6 Quick-clamping devices
The quick-clamping device clamps the upper handlebar
onto the lower handlebar and is used to fold down the
handlebar.
7 Flap
The flap covers the battery, the ECO switch and the
activation key and protects from soiling.
8 Lever
The lever is used to set the cutting height of the front
wheels.
9 Transport handle
The transport handle is used to transport the lawn
mower.
10 Rear axle
The rear axle is used to set the cutting height of the rear
wheels.
11 Battery
The battery supplies the lawn mower with power.
12 Button
The button activates the LEDs on the battery.
13 LEDs
The LEDs indicate the battery charge state and faults.
14 Battery compartment
The battery compartment holds the battery.
15 ECO switch
The ECO switch activates and deactivates ECO mode.
16 Activation key
The activation key activates the lawn mower.
36
17 Locking lever
The locking lever keeps the battery in the battery
compartment.
RMA 2 RPV:
18 Battery compartment
The battery compartment holds a second battery.
RMA 2 RV:
18 Transport compartment
The transport compartment holds a replacement battery.
# Rating plate with machine number
3.2

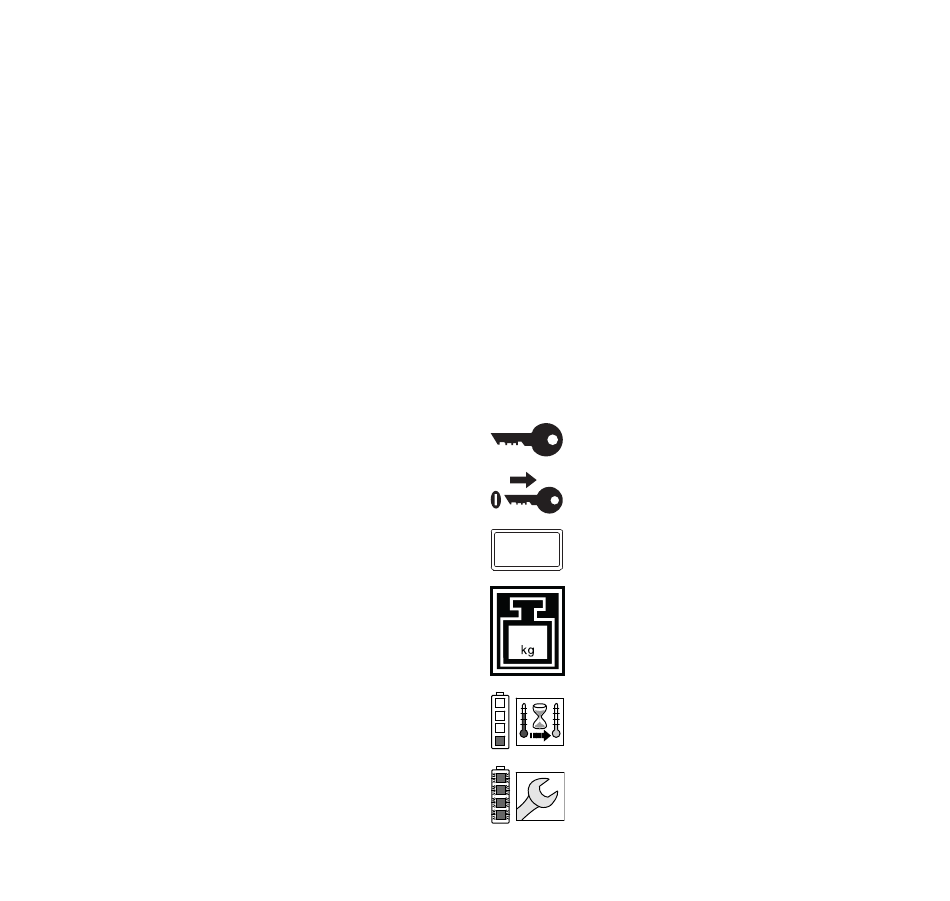

Symbols

The symbols can be on the lawn mower or battery and have
the following meaning:
This symbol identifies the activation key.
This symbol identifies the key receptacle.
This symbol identifies the ECO switch.
ECO ECO
This symbol indicates the weight of the lawn
mower without battery.
XX
1 LED illuminates red. The battery is too warm or
too cold.
4 LEDs flashing red. There is a fault in the
battery.
