Observe the following rules:
1. Maximum number of devices on the 2GO! spine.
The gateway on each spine where it is installed must be included in the total count of 2GO! door units.
Therefore, on each 2GO! riser, there can be two units in total (video door units Ref. 1082/72 and/or door
phone units Ref. 1082/7).
2. Type of usable wires and distances.
The rules shown in the system manual provided with the 1082/20 power unit apply for connecting the
gateway to the 2GO! system (LINE terminals). Refer to the Digivoice technical manual for connecting the
gateway to the Digivoice spine. Use a AWG22 (0.28mm
150m Max.
1082/20
850m Max.
3. Use of line terminals.
The gateway works on 2GO! side as a main door unit. Therefore, if connected directly to the 2GO! power
unit, the terminal must be ON.
The DE video signal distributor Ref. 1795/40 does not require line terminals.
4. Installation
The gateway can be installed in an electrical panel on DIN bar (10 modules) or wall-mounted using bolts
(not provided). Terminal boards, confi guration dip switches and other settings can be accessed when the
electrical panel is open.
14
Downloaded from www.Manualslib.com
2 ) double wire for the DE signal connection.
1082/50 789/2 1038/20
manuals search engine
CONFIGURATION

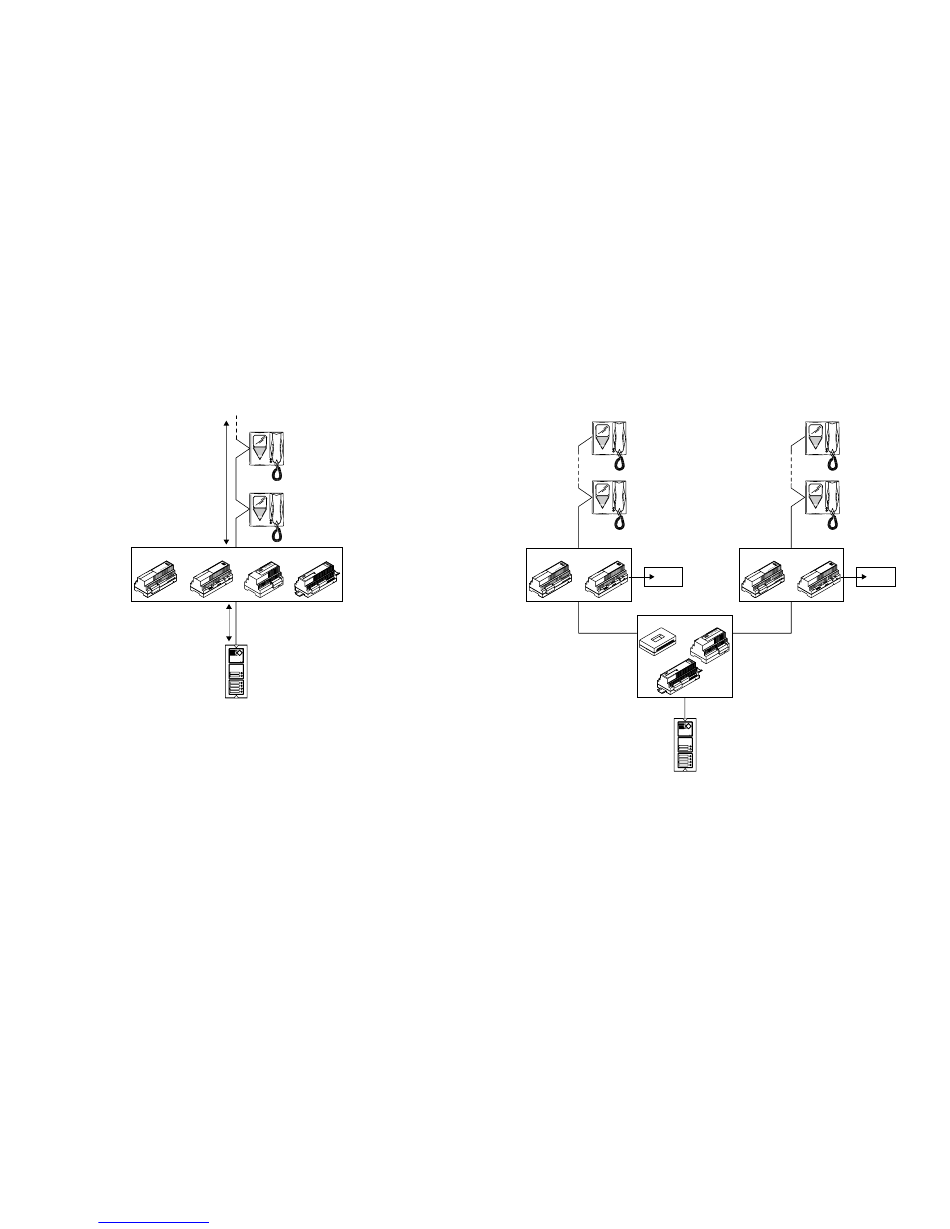

DIGIVOICE COLUMN CODE DEFINITION FOR GATEWAY
The fi rst step consists in assigning to the gateway one of 255 possible column codes. The column code
is needed to address the 2GO! column devices using unique codes in the system. There cannot be two
gateways with the same column code. Refer to the table below for correspondence between dip switches
and code.
Example:
User
1031
User
1000
1082/20
DS1082-010 DS1082-010
User
31
2031
User
0
2000
1082/50 1082/20
Dip-switch
10
1795/40 789/2
1038/20
31
0
1082/50
Dip-switch
20
15
