ENGLISH
The gateway Ref. 1082/50 is used to interface the 2GO! and the Digivoice system to make high-performance
complex video door phone systems (over 8000 users). Up to 255 gateways can be used, corresponding to
255 different buildings in the same compound.
All the potentials and extensions of the Digivoice system can be exploited on street side with a high
number of inputs and up to 5 switchboards using 9 common wires. The building risers require 2 non
polarised wires and exploit the features and performance of the 2GO! system, which include intercom service
between apartment stations and the possibility of using the video door phone answering machine service
Ref. 1082/88, without additional wires.
As for the video signal, an extended differential (DE) video system consisting of camera video signal
converters (Ref. 1742/13A), video distributors (Ref. 1795/40) and video signal regenerators (Ref. 1795/250)
is used on the Digivoice spine.

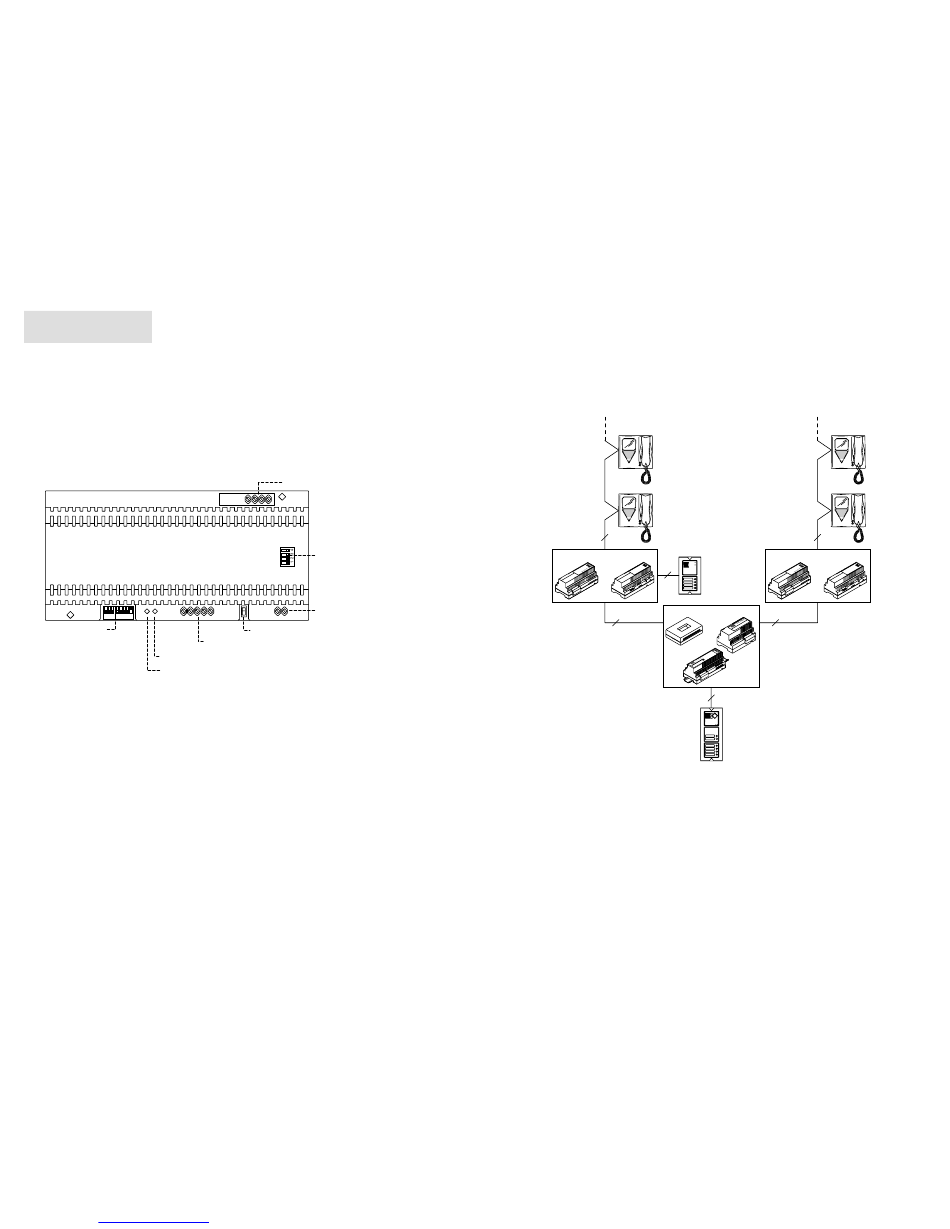

1 2 3 1 2 3 4 5
Gateway
ID dip-switch
Diagnostic LED 2GO! side
Diagnostic LED Digivoice side
DIGIVOICE TERMINAL BOARDS
+V Digivoice power unit
0V Digivoice power ground
D Data line
FA Voice out
FB Voice back
R2 Video power
R1 Video power ground
A Differential video signal wire A
B Differential video signal wire B
2GO! TERMINAL BOARDS
Terminal pair for connecting non-polarised bus
12
Downloaded from www.Manualslib.com
Digivoice terminal board
DE signal
equaliser
dip-switch
2GO! column terminal board
Line terminal
Digivoice terminal board
manuals search engine

INSTALLATION

The gateways are installed between the Digivoice spine and the 2GO! risers on the base of each riser.
Refer to 2GO! system installation instructions contained in the system manual provided with the Ref. 1082/20
power unit for wiring on 2GO! side. Refer to the technical system manual for Digivoice wiring.
Up to 255 gateways can be installed. One 2GO! riser can be connected to each gateway. The gateway in
the 2GO! system takes the place of the main door unit with ID=1, while in the Digivoice system it is seen as
a secondary calling system and can assume as column code one of 255 values set using the 8 dip switches
accessible with the electrical panel is open. No supplementary power units are needed for the gateway.
1082/20
Briefl y, the system confi guration is as follows.
On the 2GO! riser:
• up to 32 apartment stations (brackets, special decoders, 4+N adapters, door phones);
• up to 2 door units;
• 1 power unit;
• 1 centralised video door phone answering machine (in this case, the total number of door units or
apartment units must be decreased by 1).
On Digivoice side:
• the gateway is included in the count of the up to 400 devices which can be connected to a Digivoice
system;
• manages one only audio line and one only extended differential video line (DE).
DS1082-010 DS1082-010
2
1082/50 1082/20
2
1795/40 789/2
7 + doble 7 + doble
1038/20
7 + doble
2
1082/50
