urmet domus 2GO! Bedienungsanleitung Seite 10

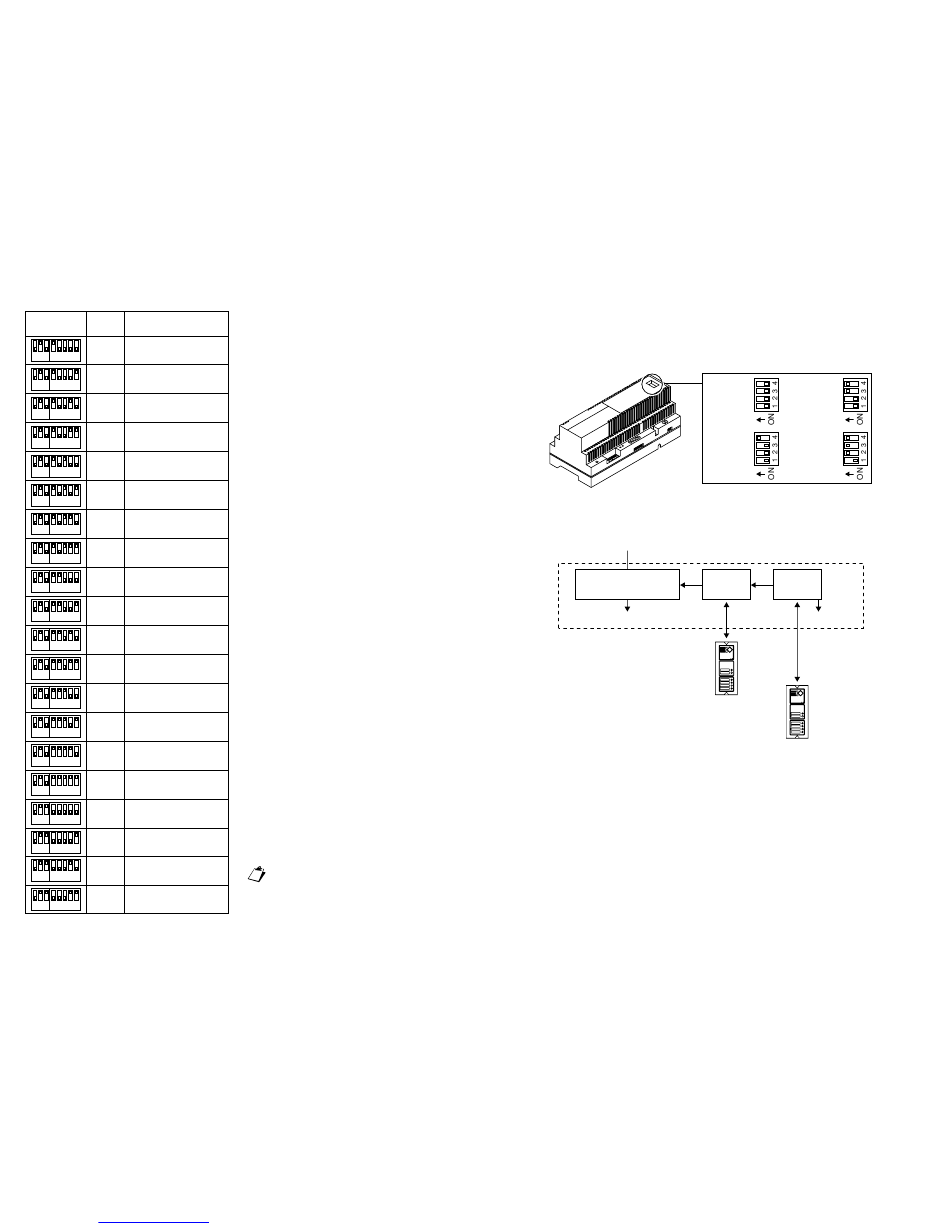

DIP-SWITCH Column Notes
code
80 users from 8000 to 8031
1 2 3 1 2 3 4 5
81 users from 8100 to 8131
1 2 3 1 2 3 4 5
82 users from 8200 to 8231
1 2 3 1 2 3 4 5
83 users from 8300 to 8331
1 2 3 1 2 3 4 5
84 users from 8400 to 8431
1 2 3 1 2 3 4 5
85 users from 8500 to 8531
1 2 3 1 2 3 4 5
86 users from 8600 to 8631
1 2 3 1 2 3 4 5
87 users from 8700 to 8731
1 2 3 1 2 3 4 5
88 users from 8800 to 8831
1 2 3 1 2 3 4 5
89 users from 8900 to 8931
1 2 3 1 2 3 4 5
90 users from 9000 to 9031
1 2 3 1 2 3 4 5
91 users from 9100 to 9131
1 2 3 1 2 3 4 5
92 users from 9200 to 9231
1 2 3 1 2 3 4 5
93 users from 9300 to 9331
1 2 3 1 2 3 4 5
94 users from 9400 to 9431
1 2 3 1 2 3 4 5
95 users from 9500 to 9531
1 2 3 1 2 3 4 5
96 users from 9600 to 9631
1 2 3 1 2 3 4 5
97 users from 9700 to 9731
1 2 3 1 2 3 4 5
98 users from 9800 to 9831
1 2 3 1 2 3 4 5
99 users from 9900 to 9931
1 2 3 1 2 3 4 5
18
Downloaded from www.Manualslib.com
An additional alphabetic keyboard is needed
for systems with more than 99 gateways.
Refer to the Urmet Domus customer service
for correct dip switch settings.
manuals search engine
VIDEO SIGNAL COMPENSATION
The distance between the main cameras can be set using the 4 dip switches on the hood to compensate the
extended differential video signal.
The main camera can be at most 850m from the gateway.
The distance of the main camera must be set on the gateway for the video signal to be correctly regenerated
inside the video power unit before being transmitted to the column. If some cameras are out of the set range,
set the closest range then use the video regenerator Ref. 1795/250 for the most distant cameras.
1082/20
DOOR UNIT CONFIGURATION ON 2GO! SIDE
Any video door phone units Ref. 1082/72 or door phone units Ref. 1082/7 connected to the 2GO! risers must
be confi gured as secondary units because the gateways works as a main video door phone unit.
SYSTEM BUSY TIME
The calling modules and the Digivoice switchboards MUST BE confi gured with a busy time of 40s.
DIGIVOICE AUDIO LINES
Select only one voice line on all Digivoice devices.
DS1082-010 DS1082-010
0 - 200m
200 - 450m
COLUMN
1082/50 1038/69 1795/250
0 ÷ 200m 150m
300m
450 - 700m
700 - 850m
200 ÷ 400m
19
