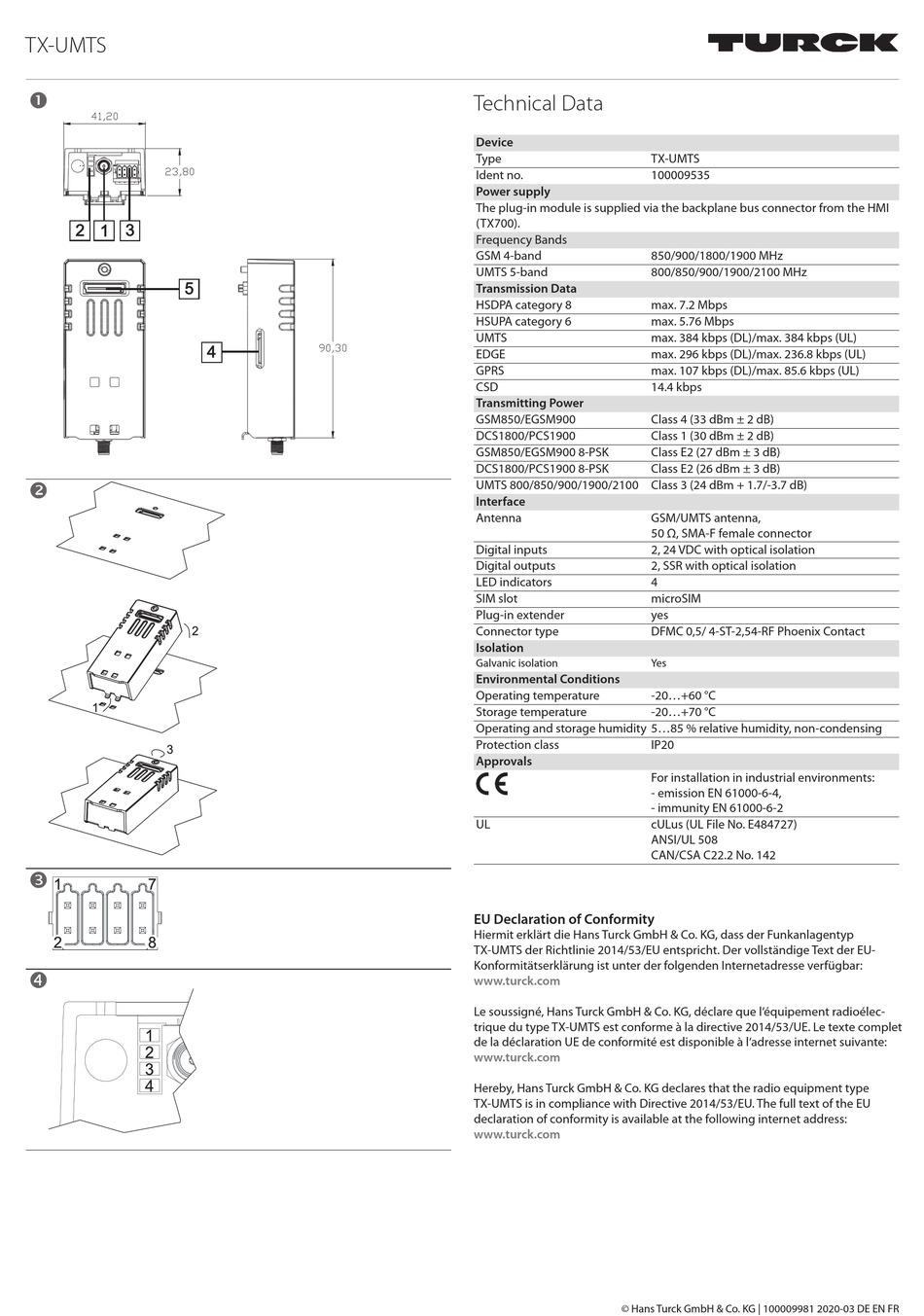

turck TX-UMTS Kurz- Betriebsanleitung

TX-UMTS




Technical Data
Device
Type
Ident no.
Power supply
The plug-in module is supplied via the backplane bus connector from the HMI
(TX700).
Frequency Bands
GSM 4-band
UMTS 5-band
Transmission Data
HSDPA category 8
HSUPA category 6
UMTS
EDGE
GPRS
CSD
Transmitting Power
GSM850/EGSM900
DCS1800/PCS1900
GSM850/EGSM900 8-PSK
DCS1800/PCS1900 8-PSK
UMTS 800/850/900/1900/2100 Class 3 (24 dBm + 1.7/-3.7 dB)
Interface
Antenna
Digital inputs
Digital outputs
LED indicators
SIM slot
Plug-in extender
Connector type
Isolation
Galvanic isolation
Environmental Conditions
Operating temperature
Storage temperature
Operating and storage humidity 5...85 % relative humidity, non-condensing
Protection class
Approvals
UL
EU Declaration of Conformity
Hiermit erklärt die Hans Turck GmbH & Co. KG, dass der Funkanlagentyp
TX-UMTS der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-
Konformitätserklärung ist unter der folgenden Internetadresse verfügbar:
www.turck.com
Le soussigné, Hans Turck GmbH & Co. KG, déclare que l'équipement radioélec-
trique du type TX-UMTS est conforme à la directive 2014/53/UE. Le texte complet
de la déclaration UE de conformité est disponible à l'adresse internet suivante:
www.turck.com
Hereby, Hans Turck GmbH & Co. KG declares that the radio equipment type
TX-UMTS is in compliance with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet address:
www.turck.com
© Hans Turck GmbH & Co. KG | 100009981 2020-03 DE EN FR
TX-UMTS
100009535
850/900/1800/1900 MHz
800/850/900/1900/2100 MHz
max. 7.2 Mbps
max. 5.76 Mbps
max. 384 kbps (DL)/max. 384 kbps (UL)
max. 296 kbps (DL)/max. 236.8 kbps (UL)
max. 107 kbps (DL)/max. 85.6 kbps (UL)
14.4 kbps
Class 4 (33 dBm ± 2 dB)
Class 1 (30 dBm ± 2 dB)
Class E2 (27 dBm ± 3 dB)
Class E2 (26 dBm ± 3 dB)
GSM/UMTS antenna,
50 Ω, SMA-F female connector
2, 24 VDC with optical isolation
2, SSR with optical isolation
4
microSIM
yes
DFMC 0,5/ 4-ST-2,54-RF Phoenix Contact
Yes
-20...+60 °C
-20...+70 °C
IP20
For installation in industrial environments:
- emission EN 61000-6-4,
- immunity EN 61000-6-2
cULus (UL File No. E484727)
ANSI/UL 508
CAN/CSA C22.2 No. 142
