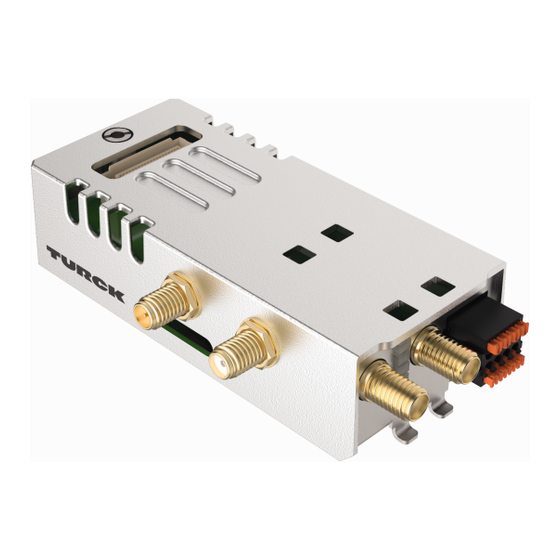

turck TX-LTE-WLAN Kurz- Betriebsanleitung

TX-LTE-WLAN



EU Declaration of Conformity
Hiermit erklärt die Hans Turck GmbH & Co. KG, dass der Funkanlagentyp
TX-LTE-WLAN der Richtlinie 2014/53/EU entspricht. Der vollständige Text der
EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar:
www.turck.com
Le soussigné, Hans Turck GmbH & Co. KG, déclare que l'équipement radioélec-
trique du type TX-LTE-WLAN est conforme à la directive 2014/53/UE. Le texte
complet de la déclaration UE de conformité est disponible à l'adresse internet
suivante: www.turck.com
Hereby, Hans Turck GmbH & Co. KG declares that the radio equipment type
TX-LTE-WLAN is in compliance with Directive 2014/53/EU. The full text of the
EU declaration of conformity is available at the following internet address:
www.turck.com


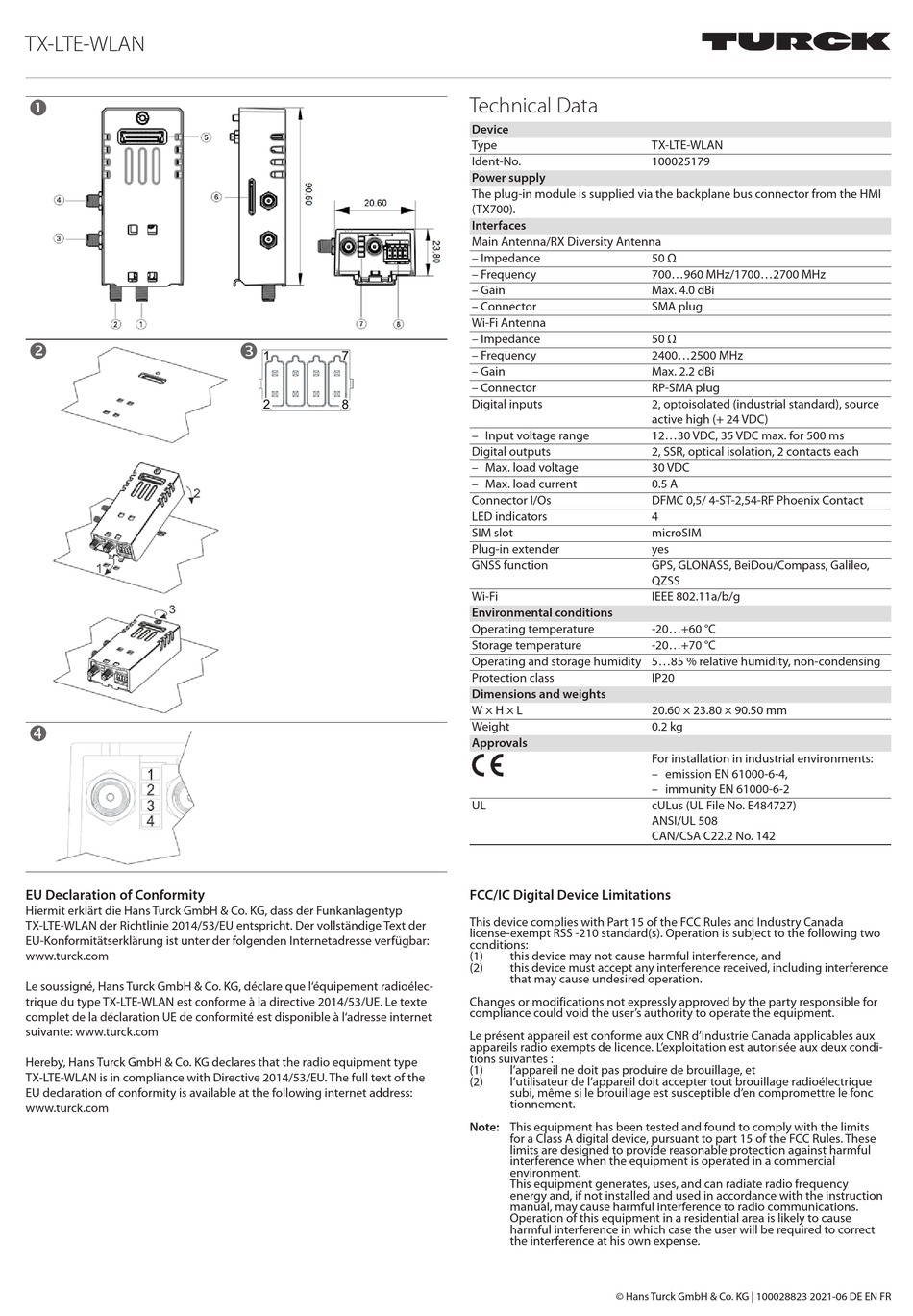

Technical Data
Device
Type
Ident-No.
Power supply
The plug-in module is supplied via the backplane bus connector from the HMI
(TX700).
Interfaces
Main Antenna/RX Diversity Antenna
– Impedance
– Frequency
– Gain
– Connector
Wi-Fi Antenna
– Impedance
– Frequency
– Gain
– Connector
Digital inputs
– Input voltage range
Digital outputs
– Max. load voltage
– Max. load current
Connector I/Os
LED indicators
SIM slot
Plug-in extender
GNSS function
Wi-Fi
Environmental conditions
Operating temperature
Storage temperature
Operating and storage humidity 5...85 % relative humidity, non-condensing
Protection class
Dimensions and weights
W × H × L
Weight
Approvals
UL
FCC/IC Digital Device Limitations
This device complies with Part 15 of the FCC Rules and Industry Canada
license-exempt RSS -210 standard(s). Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux condi-
tions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le fonc
tionnement.
Note: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
© Hans Turck GmbH & Co. KG | 100028823 2021-06 DE EN FR
TX-LTE-WLAN
100025179
50 Ω
700...960 MHz/1700...2700 MHz
Max. 4.0 dBi
SMA plug
50 Ω
2400...2500 MHz
Max. 2.2 dBi
RP-SMA plug
2, optoisolated (industrial standard), source
active high (+ 24 VDC)
12...30 VDC, 35 VDC max. for 500 ms
2, SSR, optical isolation, 2 contacts each
30 VDC
0.5 A
DFMC 0,5/ 4-ST-2,54-RF Phoenix Contact
4
microSIM
yes
GPS, GLONASS, BeiDou/Compass, Galileo,
QZSS
IEEE 802.11a/b/g
-20...+60 °C
-20...+70 °C
IP20
20.60 × 23.80 × 90.50 mm
0.2 kg
For installation in industrial environments:
– emission EN 61000-6-4,
– immunity EN 61000-6-2
cULus (UL File No. E484727)
ANSI/UL 508
CAN/CSA C22.2 No. 142
