Fermax AC-MAX Installationshandbuch Seite 43

Cod. 970073 V12_20
Manual addressing
Number of LED AC pulses
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Note: In order to program the address „100" wait for 16 LED AC pulses. When LED AC and LED RUN
are on, remove jumper from MEM pins and press RES button. The device shall revert from Service
mode to Normal mode with default settings and new address.
Installation
All electric connections must be done without voltage on wires/terminals and with power supply
disconnected. The cross section of power supply wires must be adequate as to avoid voltage drop greater
than 200mV for rated load. It is recommended to use cables with minimal 1mm
30 cm length. Such cables are offered with PWRxD series power supply units.
RS485 address
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
100
EXP2D

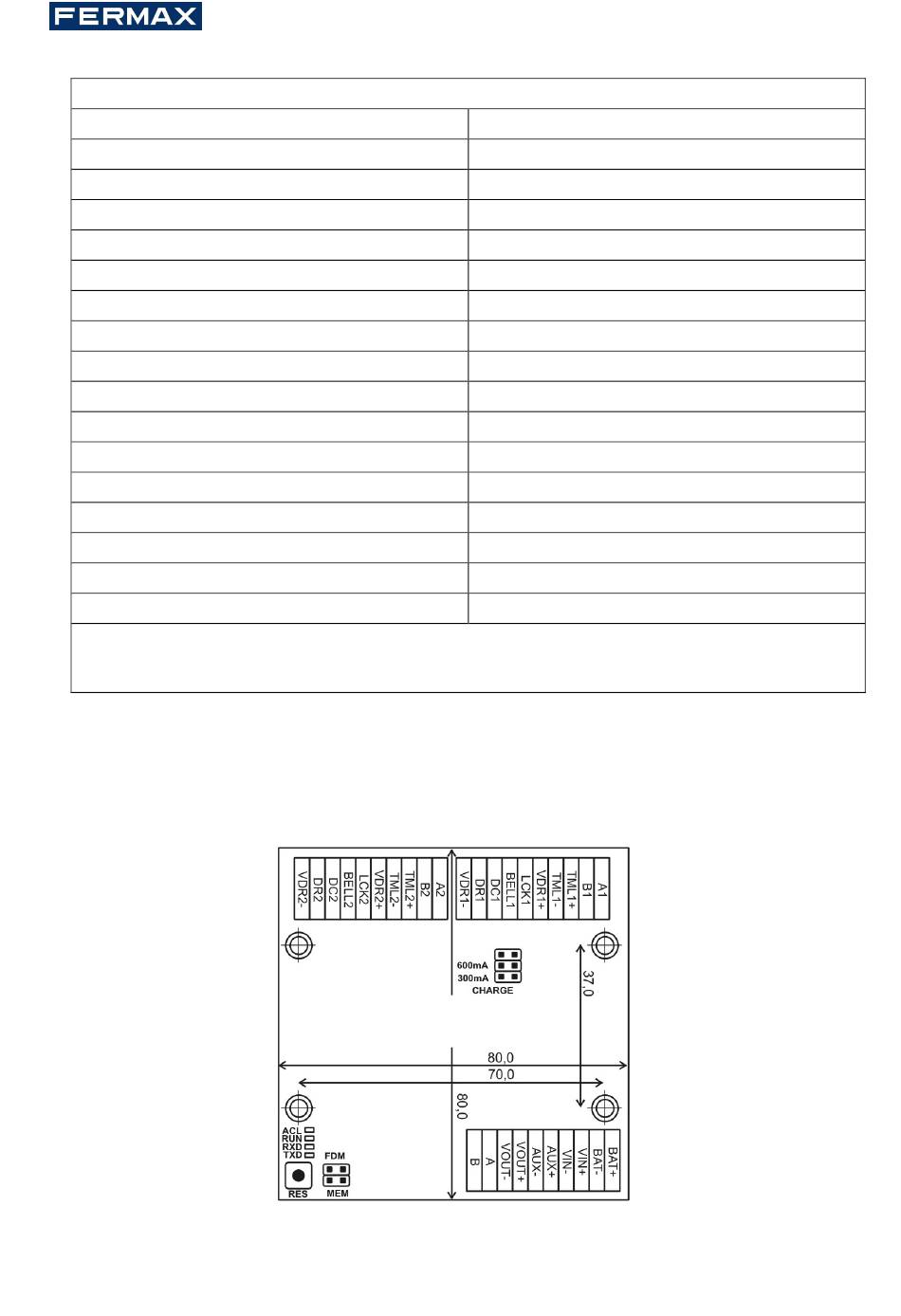

Fig. 17 EXP2D board
cross section and maximal
2
43/120
