EN

Assembly

PLEASE NOTE!
■ Always switch off the device before replacing any accessories.

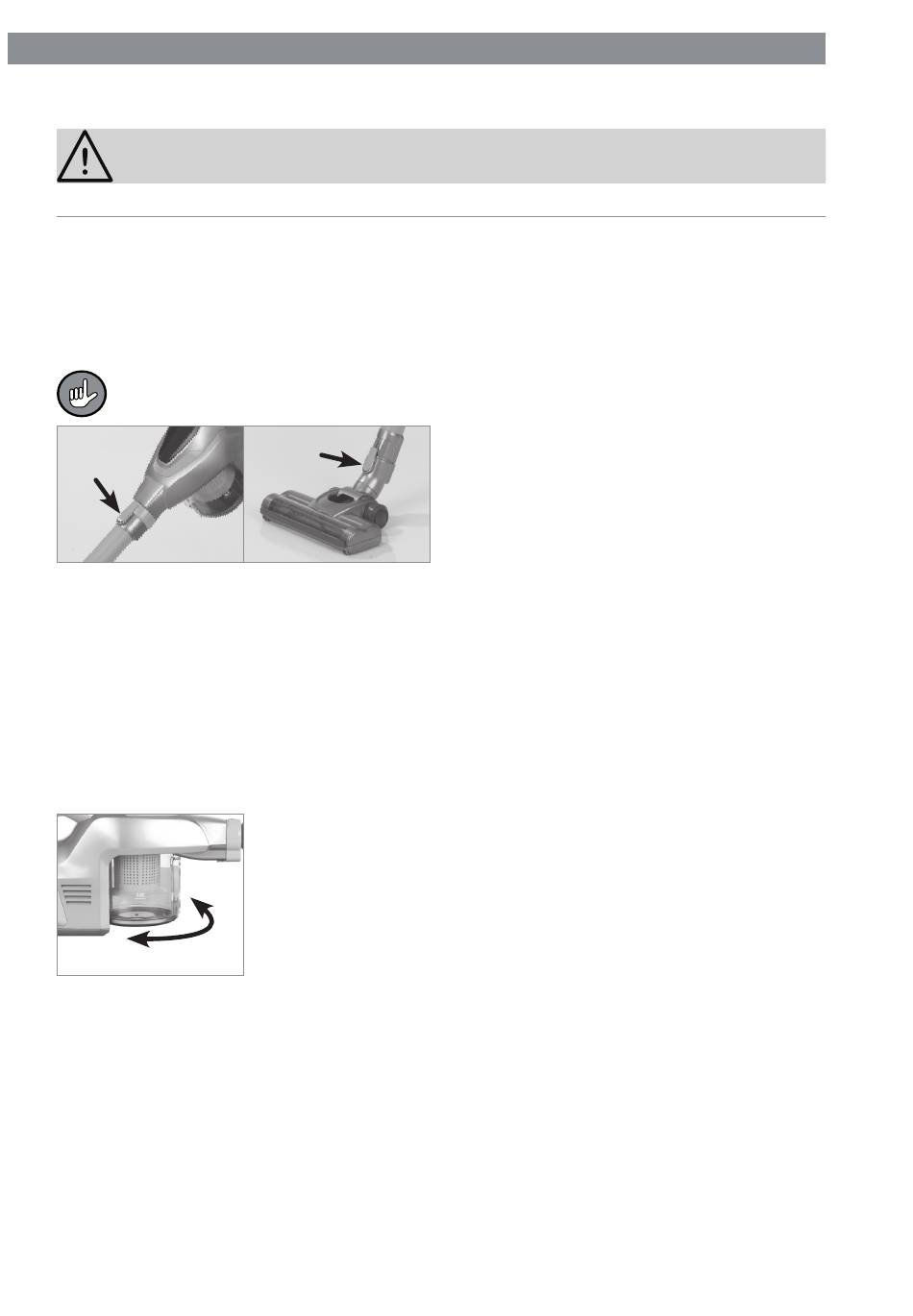

Attaching / Removing the Turbo Nozzle and Extension Tube
No nozzle adapter (14) is required for the turbo nozzle (9) and the extension tube (11).
• Attaching: Put the extension tube directly onto the suction opening (8). The catch
must be heard to engage in place. Attach the turbo nozzle to the extension tube in
the same way.
The turbo nozzle can not be directly attached to the suction opening.

Attaching / Removing Nozzles

With the exception of the turbo nozzle (9), all nozzles are attached with the aid of the
nozzle adapter (14).
• Attaching: Plug the nozzle adapter into the suction opening (8) or the extension
tube (11). Plug the nozzle you want onto the nozzle adapter.
• Detaching: Pull the nozzle and nozzle adapter out of the suction opening or the
extension tube.
Removing / Inserting the Dust Container
closed
open
22
• Removing: Untwist the dust container (7) clockwise. This
releases it from the motor unit (3) and it can be removed.
• Inserting: Insert the dust container into the motor unit. Lightly
turn until the locking lugs on the dust container sit correctly
in the recesses on the motor unit. Rotate the dust container
clockwise to fi x it into the motor unit. The release button on the
dust container must be located below the suction opening (8)
after it has been attached.
• Detaching: Press the release button
on the extension tube or on the turbo
nozzle and pull the extension tube or
turbo nozzle out.
