LSL 118B051 Montageanleitung Seite 6

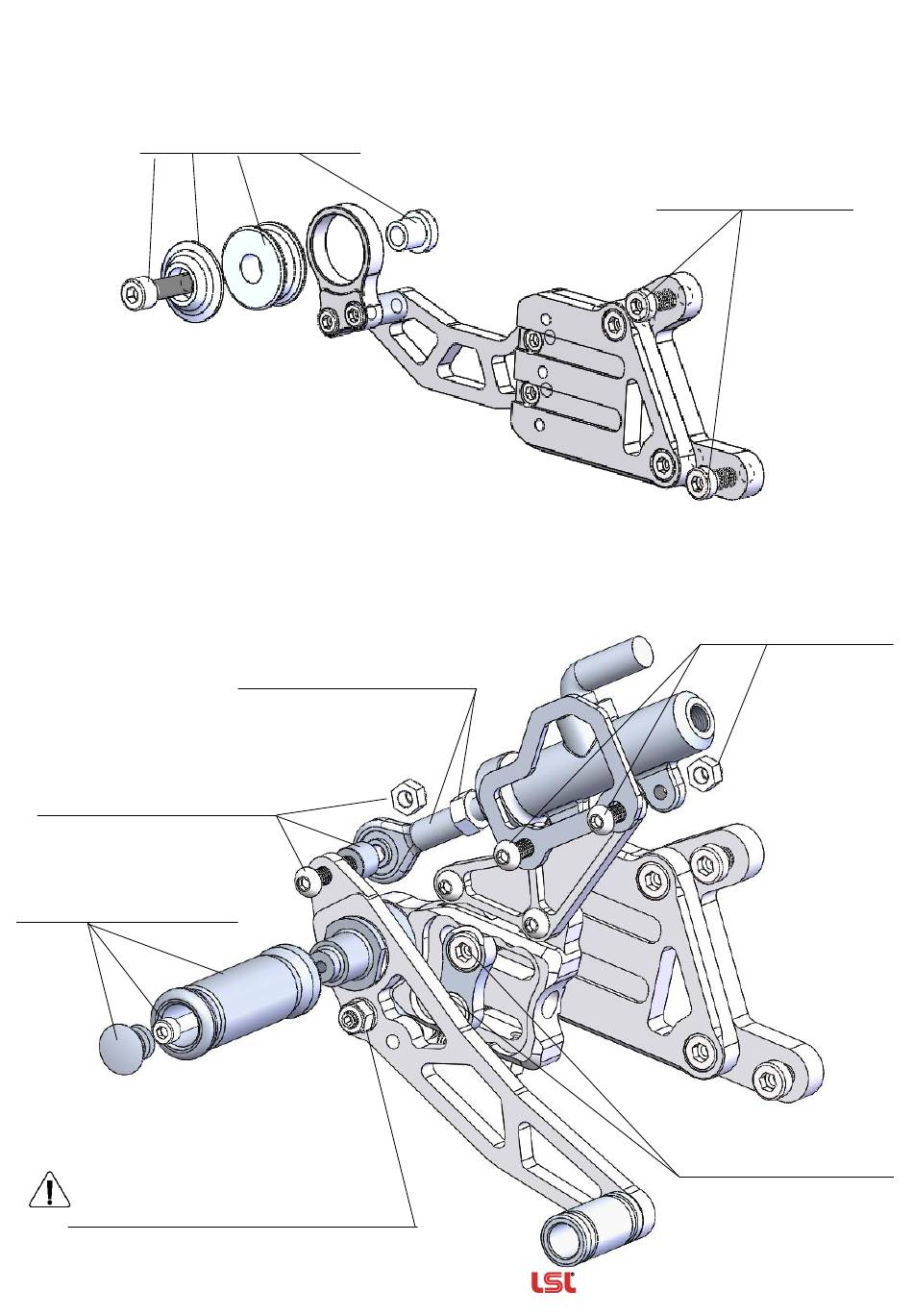

fitting right (1):
Exhaust bracket like original.
bolt/cover/rubber/spacer
fitting right (2):
Mount brake pedal with bolt
M6x35, spacer(10mm) and
selflocking nut M6.
Mount footpeg with M5x25mm
on the stud and use the plastic
cap to close the footpeg.
Excenter – adjust the stop of the brake
pedal and lock with counter-nut. Keep
clearance at the brake cylinder rod to avoid
permanent braking!
——————————————
Rev. 01 21/07/2015
Mount LSL-ball joint at the rod of
the brake cylinder and lock it with
the original counter-nut.
Zubehör von
Mount hanger with
M8x18mm at the frame.
Mount brake cylinder with
bolt 2x M6x25, heelguard
and selflocking nut M6.
Adjust footpeg to your
individual position and fix it
with both bolts M8x25mm
.
—
Das Original
Seite 6 von 9
——
