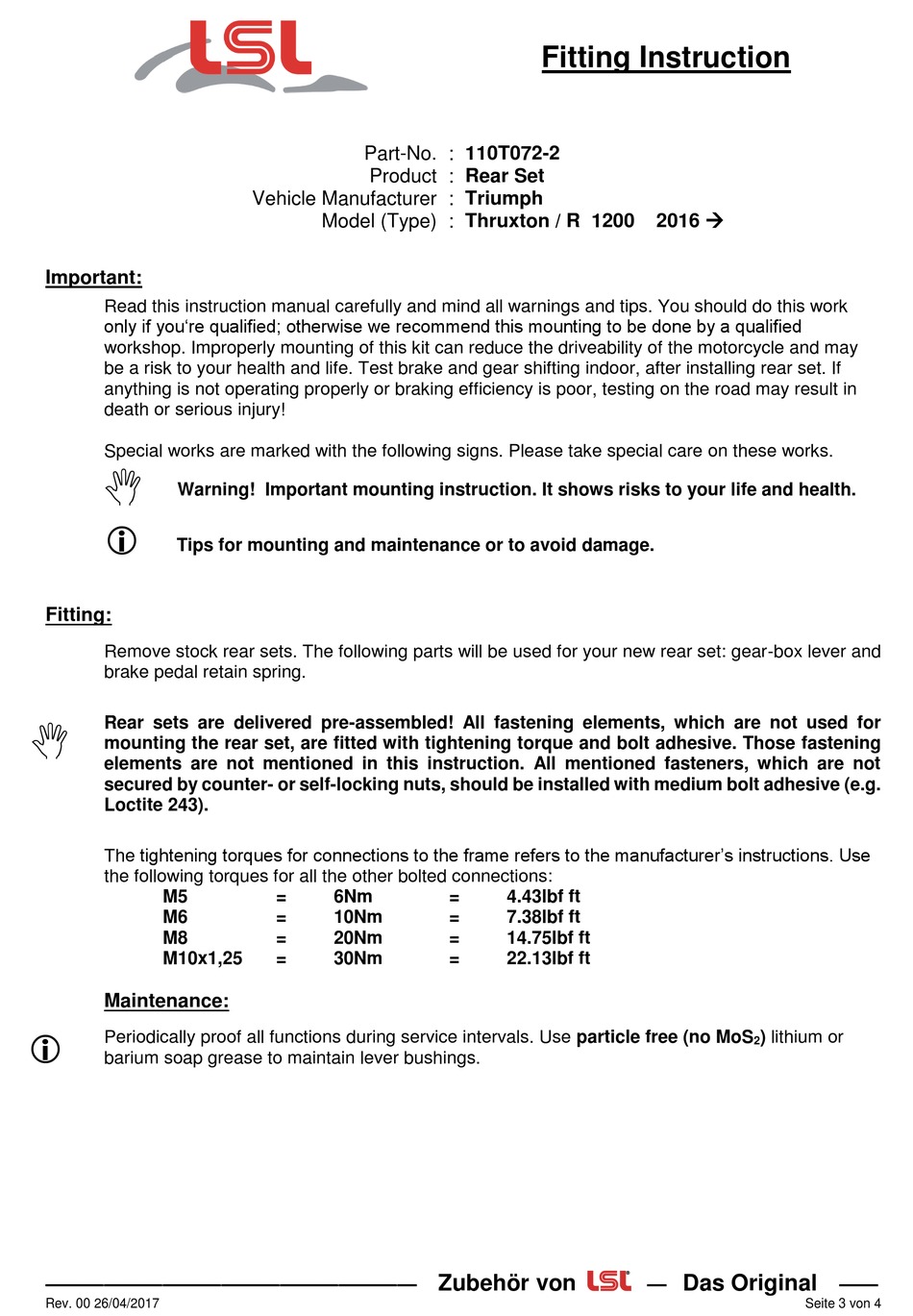

Important:
Read this instruction manual carefully and mind all warnings and tips. You should do this work
only if you're qualified; otherwise we recommend this mounting to be done by a qualified
workshop. Improperly mounting of this kit can reduce the driveability of the motorcycle and may
be a risk to your health and life. Test brake and gear shifting indoor, after installing rear set. If
anything is not operating properly or braking efficiency is poor, testing on the road may result in
death or serious injury!
Special works are marked with the following signs. Please take special care on these works.
Warning! Important mounting instruction. It shows risks to your life and health.
Tips for mounting and maintenance or to avoid damage.
Fitting:
Remove stock rear sets. The following parts will be used for your new rear set: gear-box lever and
brake pedal retain spring.
Rear sets are delivered pre-assembled! All fastening elements, which are not used for
mounting the rear set, are fitted with tightening torque and bolt adhesive. Those fastening
elements are not mentioned in this instruction. All mentioned fasteners, which are not
secured by counter- or self-locking nuts, should be installed with medium bolt adhesive (e.g.
Loctite 243).
The tightening torques for connections to the frame refers to the manufacturer's instructions. Use
the following torques for all the other bolted connections:
M5
M6
M8
M10x1,25
Maintenance:
Periodically proof all functions during service intervals. Use particle free (no MoS
barium soap grease to maintain lever bushings.
———————————————————
Rev. 00 26/04/2017
Part-No. : 110T072-2
Product : Rear Set
Vehicle Manufacturer : Triumph
Model (Type) : Thruxton / R 1200
=
6Nm
=
10Nm
=
20Nm
=
30Nm
Fitting Instruction
=
4.43lbf ft
=
7.38lbf ft
=
14.75lbf ft
=
22.13lbf ft
