• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
FOR VESA ® 200 x 100 MOUNTING PATTERN:
5

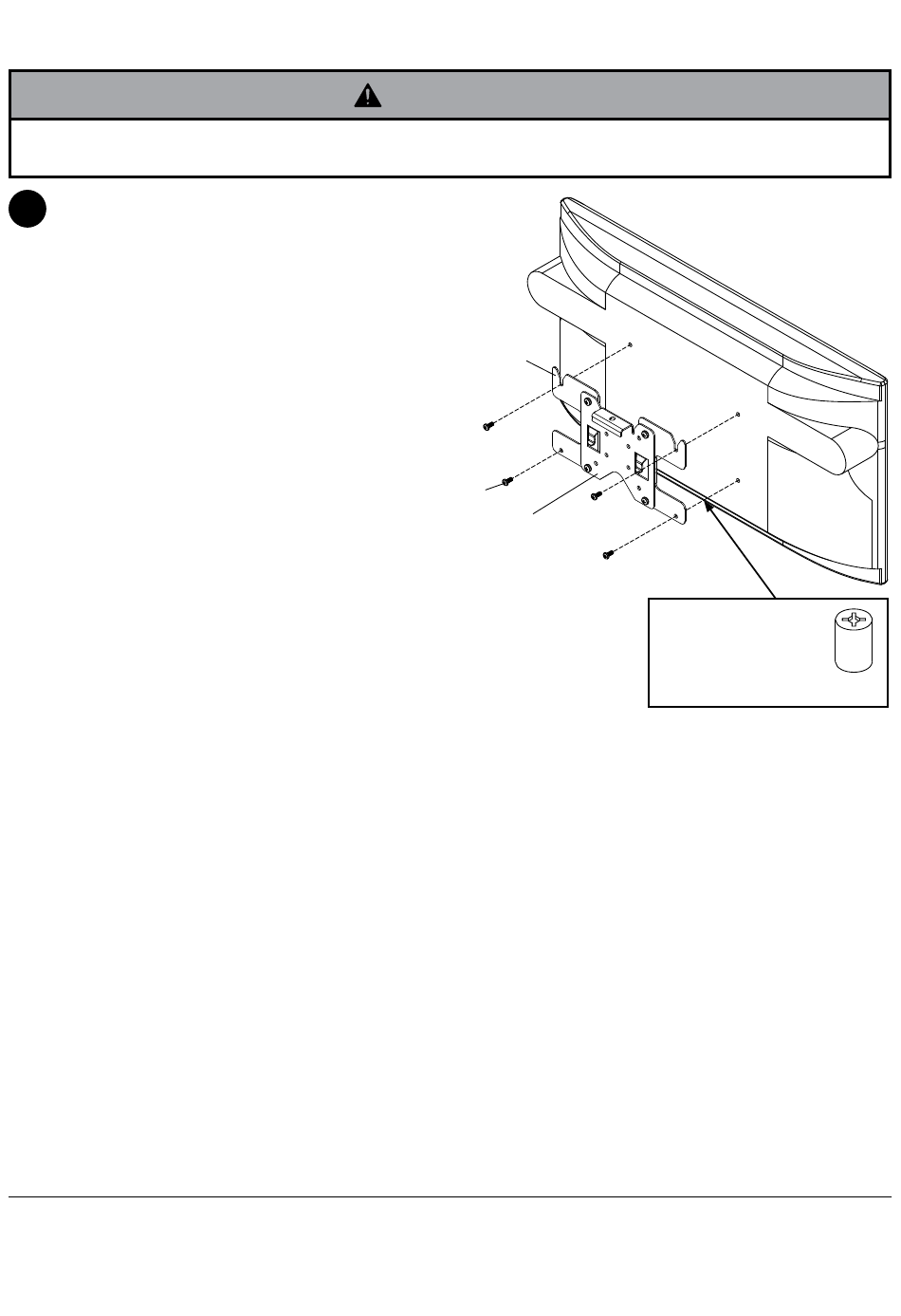

Choose hole pattern as shown. Attach adapter
plates (J) to back of screen using four M4 x 10
mm screws (D).
*NOTE: If hole pattern is in a pocket, attach hook
bracket (B) to back of screen using four
M4 x 20 mm screws (E) and four retaining
spacers (F).
WARNING
J
D
B
7 of 16
*For screens with a
hole pattern in a pocket,
spacers (F) go between
adapter plate (A) and
screen.
ISSUED: 02-05-09 SHEET #: 202-9336-1
F
