Installation to Single Wood Stud Wall

• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud finder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations (not UL approved).
Use a stud finder to locate the edges of the stud. Use of an edge-to-edge stud finder is highly recommended.
1

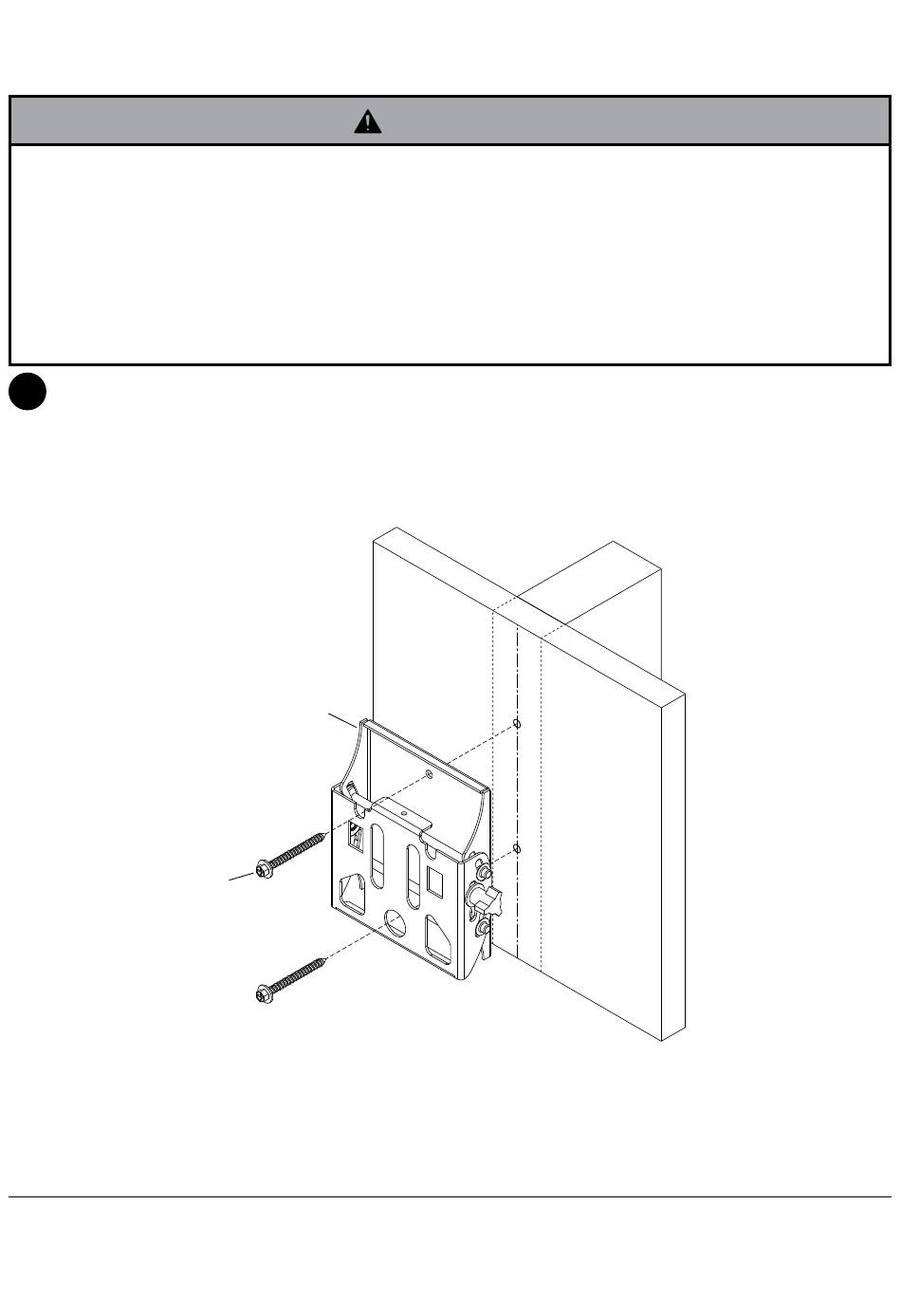

Based on its edges, draw a vertical line down the stud's center. Place tilt assembly (B) on wall as a template,
making sure that the two mounting holes are over the stud centerline. Level tilt assembly, and mark the center of
the two holes. Drill two 5/32" (4 mm) dia. holes 2.5 (65 mm) deep. Make sure that the tilt assembly is level, secure it
using two #14 x 63.5 mm wood screws (G) as shown.
Skip to step 2 on page 6.
B
G
WARNING
4 of 16
ISSUED: 02-05-09 SHEET #: 202-9336-1
