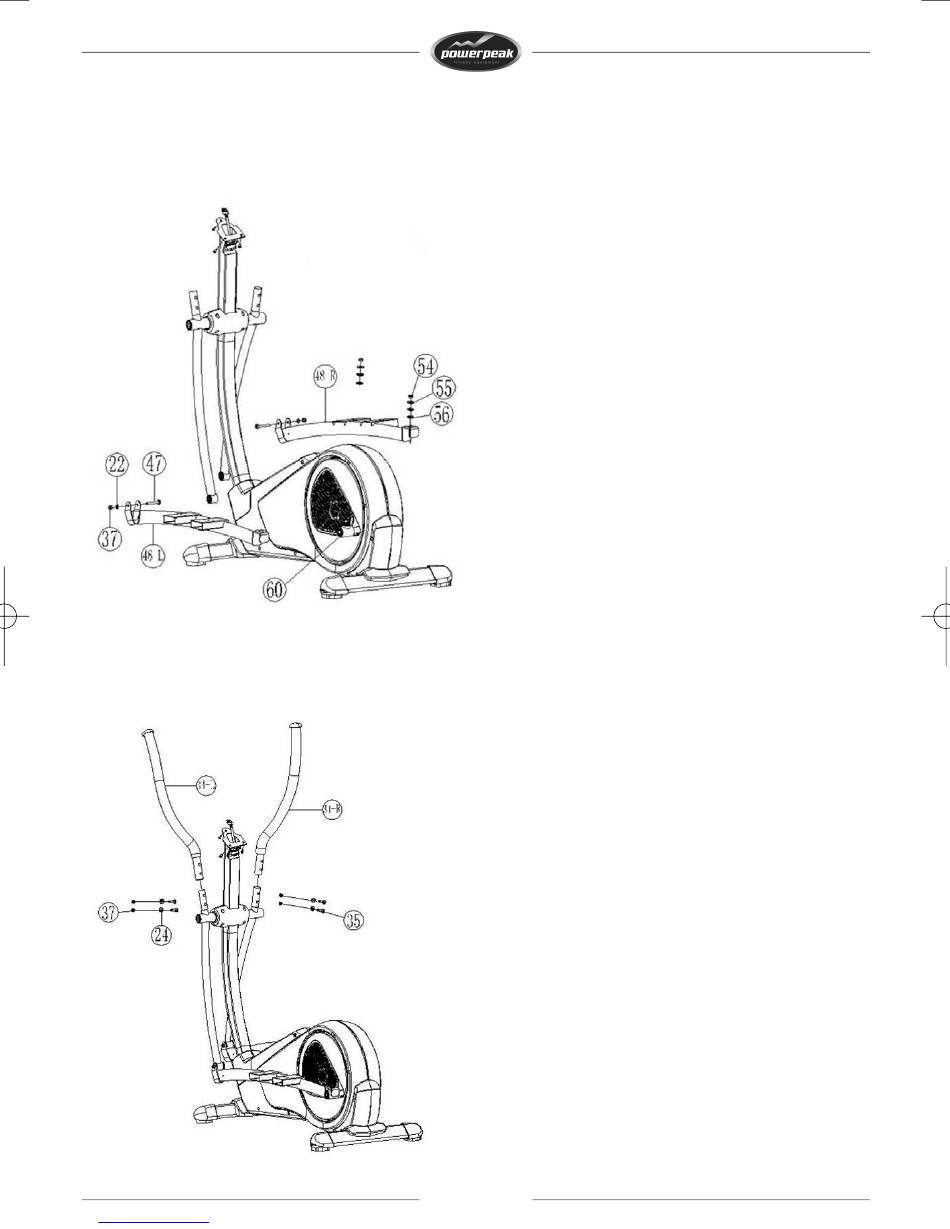

Step 4: attaching the pedal tubes
Attach the left pedal tube (48L) to the left crank (60L) with two plastic washers (56), washer (55) and a
nylon nut (54). Attach the left pedal tube (48L) to the left tube moving handle (36L) with a screw (47),
washer (22) and nylon nut (37). Attach the right pedal tube (48R) in the same way.
Step 5: attaching the moving handles
Attach the left moving handle (34L) on the left bar with two nylon nuts (37), two semi‐circular washers
(24) and two screws (35).
Attach the right moving handle (34R) in the same way.
