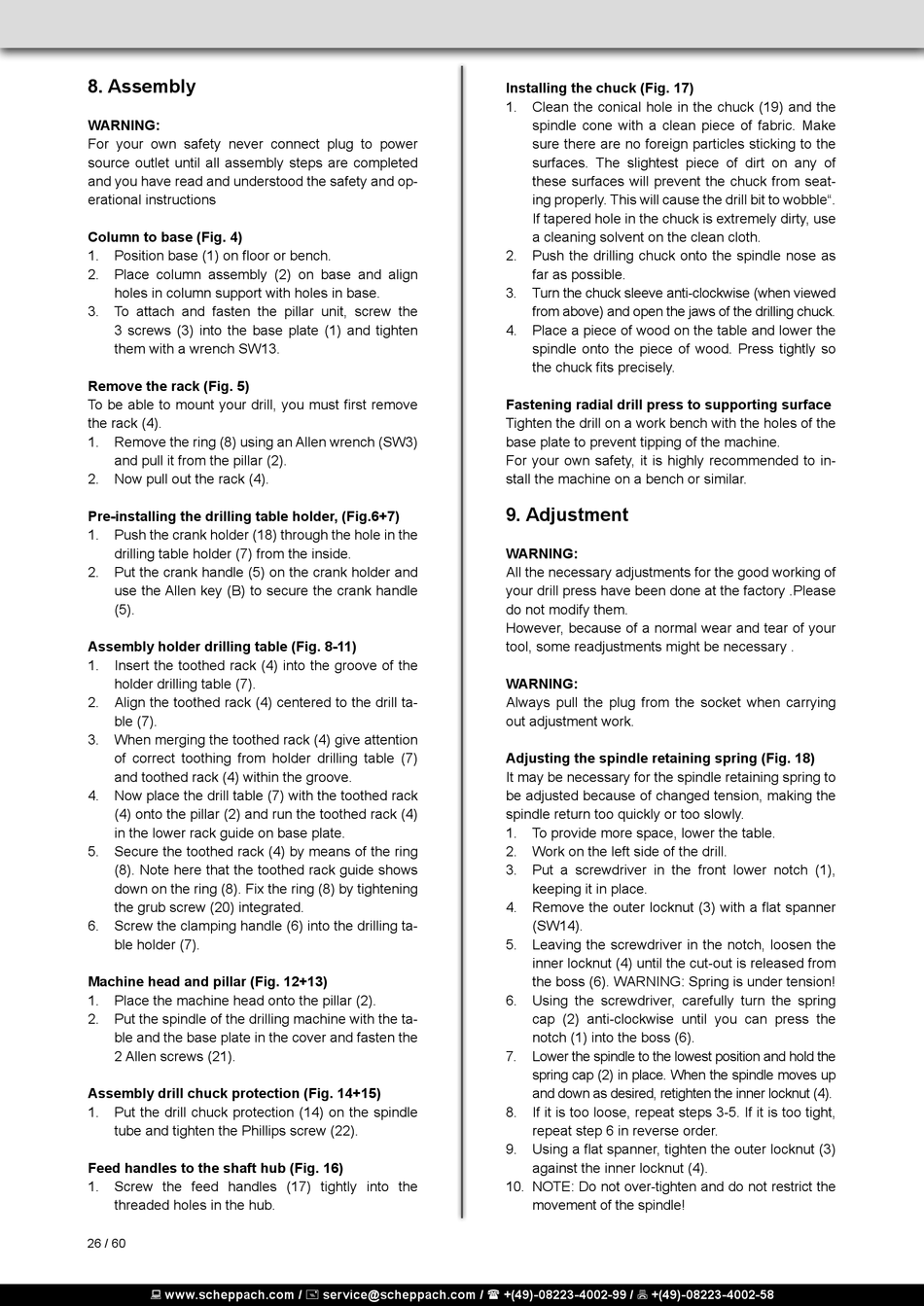

8. Assembly

WARNING:
For your own safety never connect plug to power
source outlet until all assembly steps are completed
and you have read and understood the safety and op-
erational instructions
Column to base (Fig. 4)
1. Position base (1) on floor or bench.
2. Place column assembly (2) on base and align
holes in column support with holes in base.
3. To attach and fasten the pillar unit, screw the
3 screws (3) into the base plate (1) and tighten
them with a wrench SW13.
Remove the rack (Fig. 5)
To be able to mount your drill, you must first remove
the rack (4).
1. Remove the ring (8) using an Allen wrench (SW3)
and pull it from the pillar (2).
2. Now pull out the rack (4).
Pre-installing the drilling table holder, (Fig.6+7)
1. Push the crank holder (18) through the hole in the
drilling table holder (7) from the inside.
2. Put the crank handle (5) on the crank holder and
use the Allen key (B) to secure the crank handle
(5).
Assembly holder drilling table (Fig. 8-11)
1. Insert the toothed rack (4) into the groove of the
holder drilling table (7).
2. Align the toothed rack (4) centered to the drill ta-
ble (7).
3. When merging the toothed rack (4) give attention
of correct toothing from holder drilling table (7)
and toothed rack (4) within the groove.
4. Now place the drill table (7) with the toothed rack
(4) onto the pillar (2) and run the toothed rack (4)
in the lower rack guide on base plate.
5. Secure the toothed rack (4) by means of the ring
(8). Note here that the toothed rack guide shows
down on the ring (8). Fix the ring (8) by tightening
the grub screw (20) integrated.
6. Screw the clamping handle (6) into the drilling ta-
ble holder (7).
Machine head and pillar (Fig. 12+13)
1. Place the machine head onto the pillar (2).
2. Put the spindle of the drilling machine with the ta-
ble and the base plate in the cover and fasten the
2 Allen screws (21).
Assembly drill chuck protection (Fig. 14+15)
1. Put the drill chuck protection (14) on the spindle
tube and tighten the Phillips screw (22).
Feed handles to the shaft hub (Fig. 16)
1. Screw the feed handles (17) tightly into the
threaded holes in the hub.
26 / 60
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Installing the chuck (Fig. 17)
1. Clean the conical hole in the chuck (19) and the
spindle cone with a clean piece of fabric. Make
sure there are no foreign particles sticking to the
surfaces. The slightest piece of dirt on any of
these surfaces will prevent the chuck from seat-
ing properly. This will cause the drill bit to wobble".
If tapered hole in the chuck is extremely dirty, use
a cleaning solvent on the clean cloth.
2. Push the drilling chuck onto the spindle nose as
far as possible.
3. Turn the chuck sleeve anti-clockwise (when viewed
from above) and open the jaws of the drilling chuck.
4. Place a piece of wood on the table and lower the
spindle onto the piece of wood. Press tightly so
the chuck fits precisely.
Fastening radial drill press to supporting surface
Tighten the drill on a work bench with the holes of the
base plate to prevent tipping of the machine.
For your own safety, it is highly recommended to in-
stall the machine on a bench or similar.

9. Adjustment

WARNING:
All the necessary adjustments for the good working of
your drill press have been done at the factory .Please
do not modify them.
However, because of a normal wear and tear of your
tool, some readjustments might be necessary .
WARNING:
Always pull the plug from the socket when carrying
out adjustment work.
Adjusting the spindle retaining spring (Fig. 18)
It may be necessary for the spindle retaining spring to
be adjusted because of changed tension, making the
spindle return too quickly or too slowly.
1. To provide more space, lower the table.
2. Work on the left side of the drill.
3. Put a screwdriver in the front lower notch (1),
keeping it in place.
4. Remove the outer locknut (3) with a flat spanner
(SW14).
5. Leaving the screwdriver in the notch, loosen the
inner locknut (4) until the cut-out is released from
the boss (6). WARNING: Spring is under tension!
6. Using the screwdriver, carefully turn the spring
cap (2) anti-clockwise until you can press the
notch (1) into the boss (6).
7. Lower the spindle to the lowest position and hold the
spring cap (2) in place. When the spindle moves up
and down as desired, retighten the inner locknut (4).
8. If it is too loose, repeat steps 3-5. If it is too tight,
repeat step 6 in reverse order.
9. Using a flat spanner, tighten the outer locknut (3)
against the inner locknut (4).
10. NOTE: Do not over-tighten and do not restrict the
movement of the spindle!
