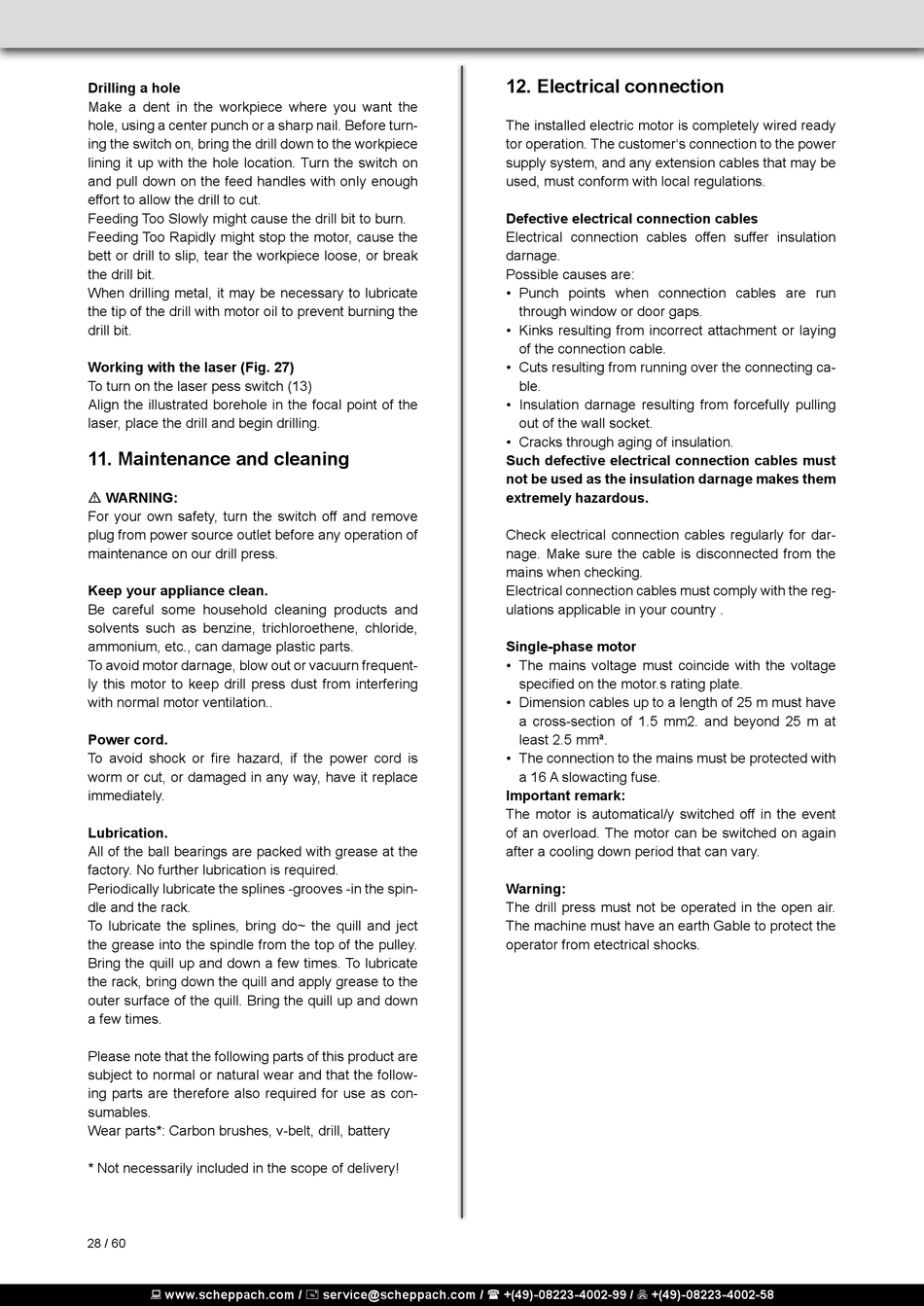

Drilling a hole
Make a dent in the workpiece where you want the
hole, using a center punch or a sharp nail. Before turn-
ing the switch on, bring the drill down to the workpiece
lining it up with the hole location. Turn the switch on
and pull down on the feed handles with onIy enough
effort to allow the drill to cut.
Feeding Too Slowly might cause the drill bit to burn.
Feeding Too Rapidly might stop the motor, cause the
bett or drill to slip, tear the workpiece loose, or break
the drill bit.
When drilling metal, it may be necessary to lubricate
the tip of the drill with motor oil to prevent burning the
drill bit.
Working with the laser (Fig. 27)
To turn on the laser pess switch (13)
Align the illustrated borehole in the focal point of the
laser, place the drill and begin drilling.

11. Maintenance and cleaning

m WARNING:
For your own safety, turn the switch off and remove
plug from power source outlet before any operation of
maintenance on our drill press.
Keep your appliance clean.
Be careful some household cleaning products and
solvents such as benzine, trichloroethene, chloride,
ammonium, etc., can damage plastic parts.
To avoid motor darnage, blow out or vacuurn frequent-
ly this motor to keep drill press dust from interfering
with normal motor ventilation..
Power cord.
To avoid shock or fire hazard, if the power cord is
worm or cut, or damaged in any way, have it replace
immediately.
Lubrication.
All of the ball bearings are packed with grease at the
factory. No further lubrication is required.
Periodically lubricate the splines -grooves -in the spin-
dle and the rack.
To lubricate the splines, bring do~ the quill and ject
the grease into the spindle from the top of the pulley.
Bring the quill up and down a few times. To lubricate
the rack, bring down the quill and apply grease to the
outer surface of the quill. Bring the quill up and down
a few times.
Please note that the following parts of this product are
subject to normal or natural wear and that the follow-
ing parts are therefore also required for use as con-
sumables.
Wear parts*: Carbon brushes, v-belt, drill, battery
* Not necessarily included in the scope of delivery!
28 / 60
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58

12. Electrical connection

The installed electric motor is completely wired ready
tor operation. The customer's connection to the power
supply system, and any extension cables that may be
used, must conform with local regulations.
Defective electrical connection cables
Electrical connection cables offen suffer insulation
darnage.
Possible causes are:
• Punch points when connection cables are run
through window or door gaps.
• Kinks resulting from incorrect attachment or laying
of the connection cable.
• Cuts resulting from running over the connecting ca-
ble.
• Insulation darnage resulting from forcefully pulling
out of the wall socket.
• Cracks through aging of insulation.
Such defective electrical connection cables must
not be used as the insulation darnage makes them
extremely hazardous.
Check electrical connection cables regularly for dar-
nage. Make sure the cable is disconnected from the
mains when checking.
Electrical connection cables must comply with the reg-
ulations applicable in your country .
Single-phase motor
• The mains voltage must coincide with the voltage
specified on the motor.s rating plate.
• Dimension cables up to a length of 25 m must have
a cross-section of 1.5 mm2. and beyond 25 m at
least 2.5 mmª.
• The connection to the mains must be protected with
a 16 A slowacting fuse.
Important remark:
The motor is automatical/y switched off in the event
of an overload. The motor can be switched on again
after a cooling down period that can vary.
Warning:
The drill press must not be operated in the open air.
The machine must have an earth Gable to protect the
operator from etectrical shocks.
