Connections - Simons Voss Technologies RouterNode 2 Kurzanleitung

RouterNode 2, GatewayNode 2,
SmartBridge
Risk of electric shock from connected power supply
The device is supplied with power during operation. Opening the hous-
ing and touching live parts may result in electric shock.
1. If the power supply is connected, do not open the housing.
2. Disconnect the power supply (or disconnect the network cable) be-
fore opening the housing.

4 Connections

EN
NOTE
Unauthorised access with standard access data
The standard access data can be viewed freely. Unau-
thorised persons cannot change the access authorisa-
tions, but they can change the network configuration.
You will then no longer be able to reach the device via
the network and will have to reset it.
Some browsers do not transmit spaces at the begin-
ning of the password.
1. Change the default password.
2. Do not start the password with spaces.

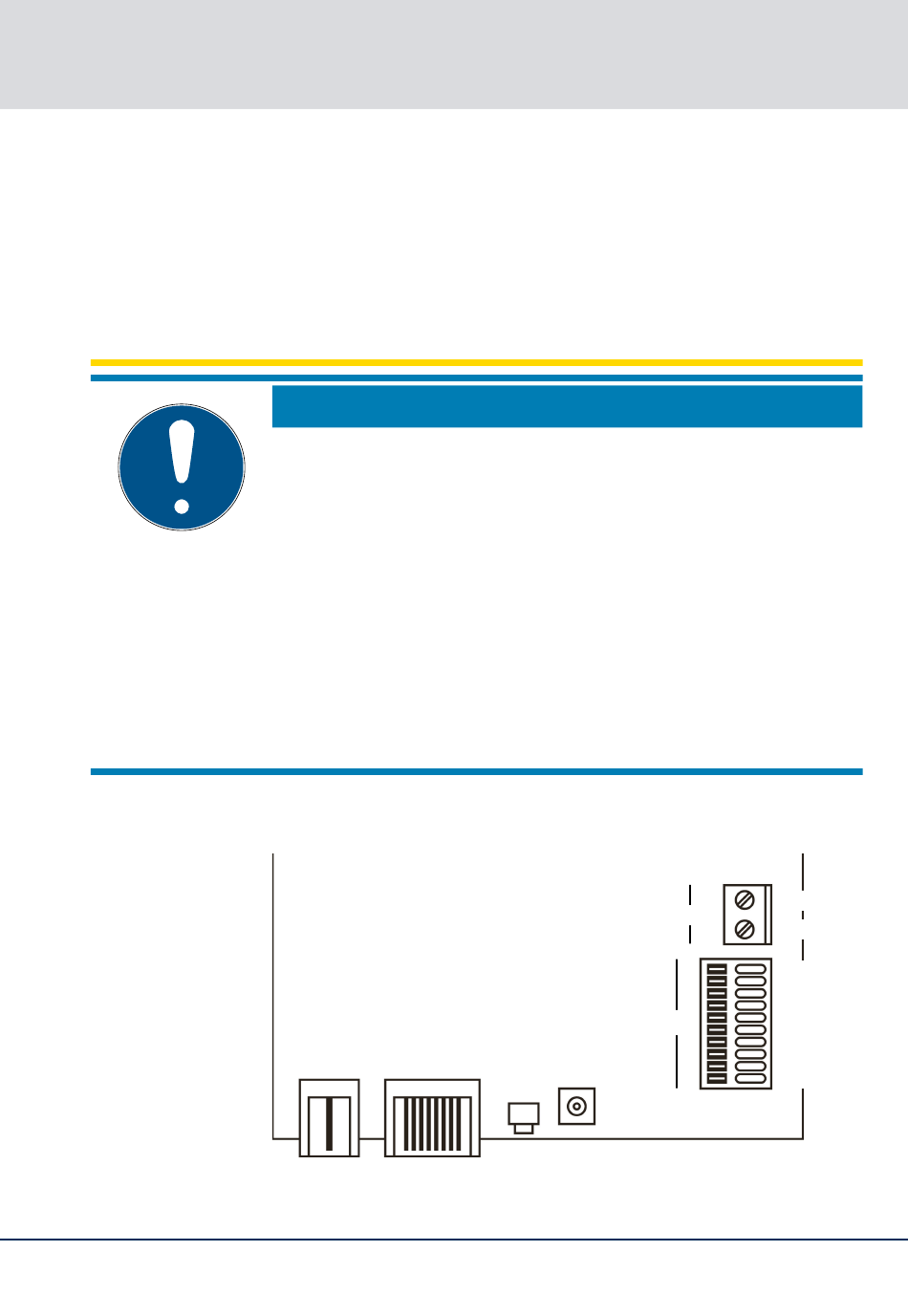

DC In RJ45
4. Connections
IO-Vout
IO
ANT
GND
+ 3.3 V
Analog Input
Unused
DI 3
DI 2
DI 1
O 3
O 2
O 1.NC
O 1.NO
O 1.COM
