3 Layout and function

3 .1 Layout

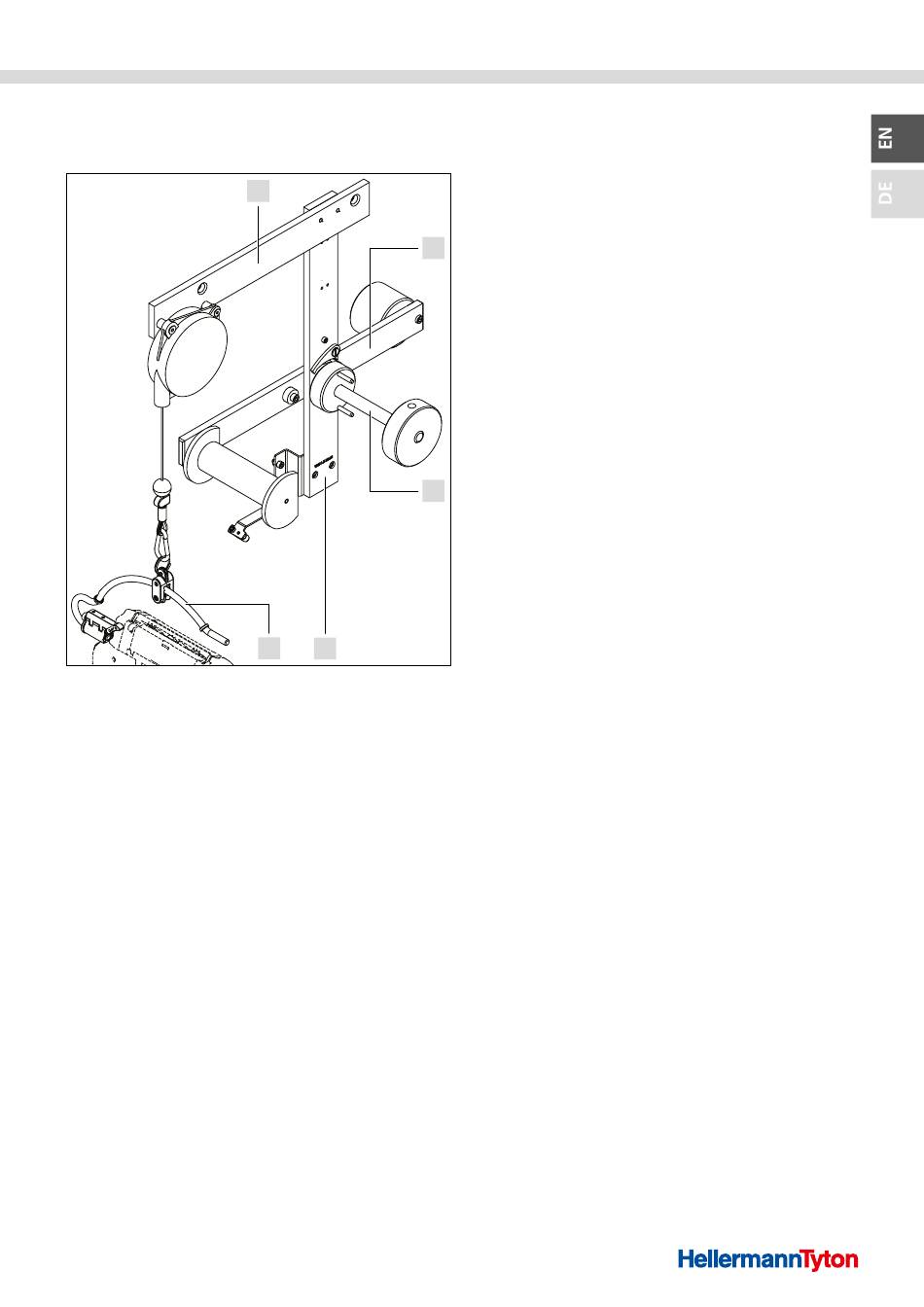

Overview of the AT2000 CPK overhead suspension
1 Rail runner with balancer (cable pull)
2 Band chain tensioner with guide roller and counterweight
3 Reel retainer with clamp ring
4 Column with power supply unit bracket
5 Hanger with adapter

3 .2 Scope of delivery

The overhead suspension is delivered with the
following components and fixing elements:
• 1× rail runner with balancer (cable pull)
• 1× column with power supply unit bracket
• 1× reel retainer with clamp ring
• 1× band chain tensioner with guide roller and
counterweight
• 1× hanger with adapter
• 1× locking pin (adapter)
• 2× fixing screws (adapter)
• 2× fixing screws (rail runner)
• 4× fixing screws (power supply unit bracket)
• 1× cap nut with washer
• 1× operating instructions
f Check the scope of delivery for completeness before
starting installation.
Operating Instructions • Overhead Suspension AT2000 CPK • 03/2020 • 106-29021
1
5 4

3 .3 Function

The AT2000 CPK overhead suspension is used to
install the Autotool 2000 CPK tool in a hanging
position at the workplace. This hanging position
enables flexible and trouble-free work with the
Autotool 2000 CPK tool at the workplace.
The Autotool 2000 CPK tool is hooked on a balancer
2
(cable pull) using a hanger supplied. The balancer
ensures weight compensation making it easier for the
operator during use.

4 Transport and storage

Only proper transport and proper storage help to
minimise possible material damage to the overhead
suspension.
Observe the following basic principles regarding
transport and storage:
f Secure all moving components.
f Only use the original packaging supplied for transport
3
and storage.
f Store the overhead suspension in dry places that are
not exposed to spray water.
f Protect the overhead suspension from direct sunlight
and extreme heat.
f The electronic components (e.g. Autotool 2000CPK,
CPK power supply unit, and their cables) must be
packaged protected against impact and stored
separately from the overhead suspension.
