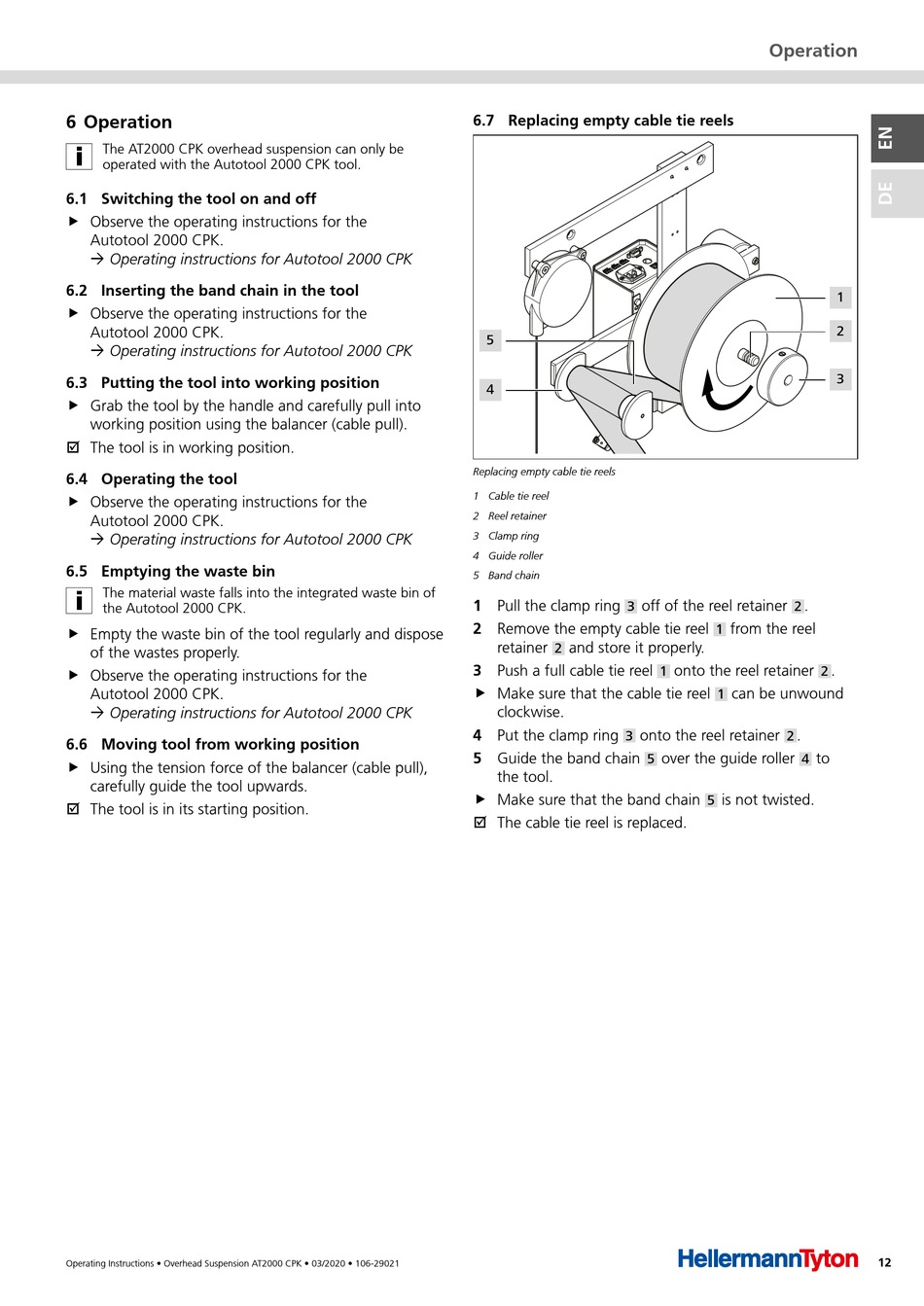

6 Operation
The AT2000 CPK overhead suspension can only be
operated with the Autotool 2000 CPK tool.
6 .1 Switching the tool on and off
f Observe the operating instructions for the
Autotool 2000 CPK.
à Operating instructions for Autotool 2000 CPK
6 .2 Inserting the band chain in the tool
f Observe the operating instructions for the
Autotool 2000 CPK.
à Operating instructions for Autotool 2000 CPK
6 .3 Putting the tool into working position
f Grab the tool by the handle and carefully pull into
working position using the balancer (cable pull).
; The tool is in working position.
6 .4 Operating the tool
f Observe the operating instructions for the
Autotool 2000 CPK.
à Operating instructions for Autotool 2000 CPK
6 .5 Emptying the waste bin
The material waste falls into the integrated waste bin of
the Autotool 2000 CPK.
f Empty the waste bin of the tool regularly and dispose
of the wastes properly.
f Observe the operating instructions for the
Autotool 2000 CPK.
à Operating instructions for Autotool 2000 CPK
6 .6 Moving tool from working position
f Using the tension force of the balancer (cable pull),
carefully guide the tool upwards.
; The tool is in its starting position.
Operating Instructions • Overhead Suspension AT2000 CPK • 03/2020 • 106-29021
6 .7 Replacing empty cable tie reels
5
4
Replacing empty cable tie reels
1 Cable tie reel
2 Reel retainer
3 Clamp ring
4 Guide roller
5 Band chain
1 Pull the clamp ring
off of the reel retainer
3
2 Remove the empty cable tie reel
retainer
and store it properly.
2
3 Push a full cable tie reel
f Make sure that the cable tie reel
clockwise.
4 Put the clamp ring
onto the reel retainer
3
5 Guide the band chain
5
the tool.
f Make sure that the band chain
; The cable tie reel is replaced.
Operation
.
2
from the reel
1
onto the reel retainer
.
1
2
can be unwound
1
.
2
over the guide roller
to
4
is not twisted.
5
1
2
3
12
