5.2.8 Multi-channel temperature and humidity sensor (Optional)

The WH3000SE PRO supports up to 8 additional thermo-hygrometer
sensors (DP50), and the console receives and sends this data directly
to ecowitt.net. The data is not displayed on the console (pass through
only) and cannot be calibrated.
Note: Do not use rechargeable batteries. We recommend fresh alkaline
batteries for outdoor temperature ranges between -10 °C and 60 °C and
fresh lithium batteries for outdoor temperature ranges between -40 °C
and -10 °C.

5.2.8.1 Install batteries

1. Remove the battery door on the back of the transmitter(s) by sliding
down the battery door, as shown in Figure 12 .

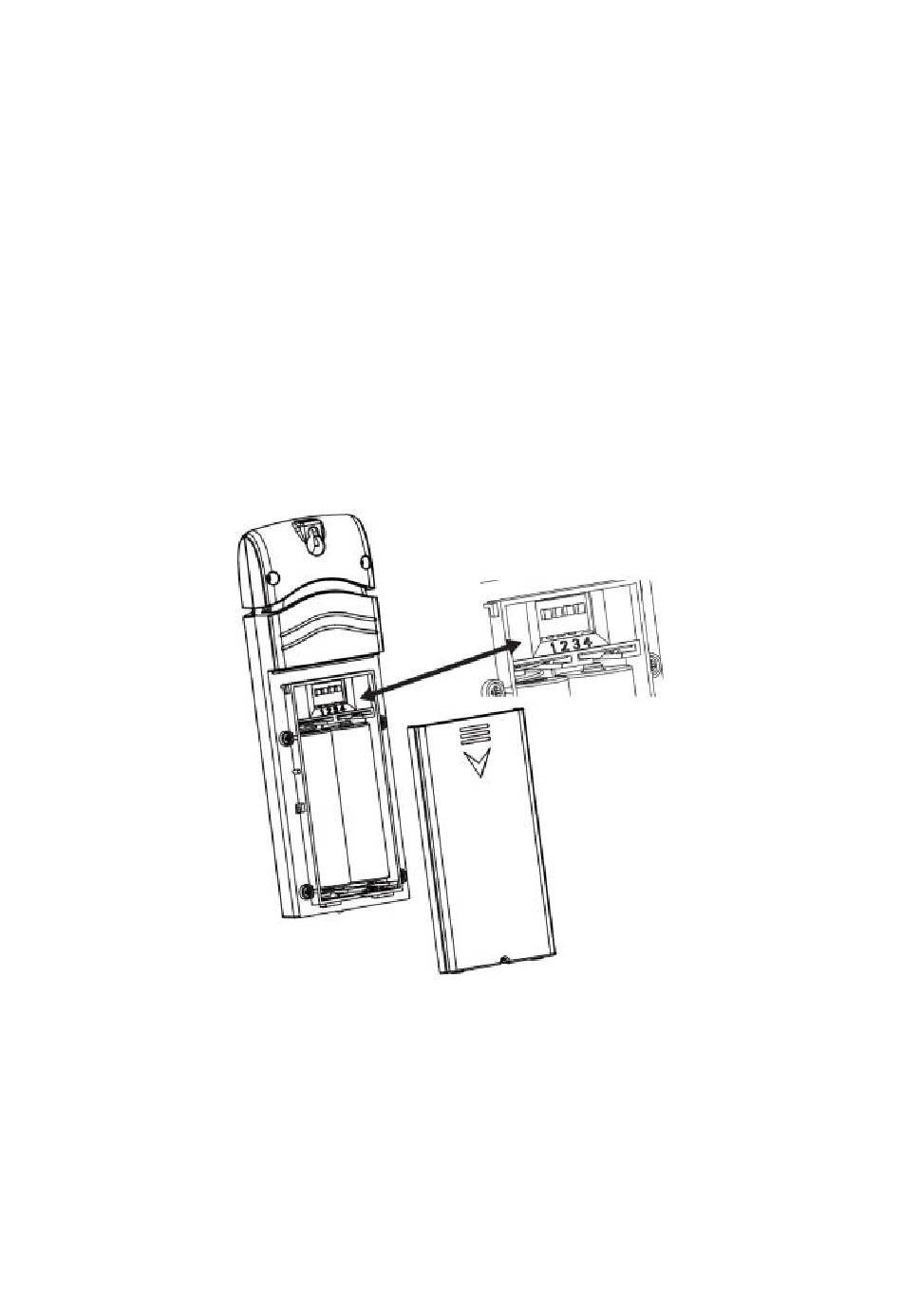

Figure 12: Battery installation for Multi-channel sensor
2. BEFORE inserting the batteries, locate the dip switches on the
inside cover of the lid of the transmitter.
Channel Number: The device supports up to eight sensors. To set
3.
each channel number change Dip Switches 1, 2 and 3, as
referenced in Figure 13 .
Temperature Units of Measure: To change the transmitter display
4.
units of measure (°F vs. °C), change Dip Switch 4, as referenced in
Figure 13.
12
