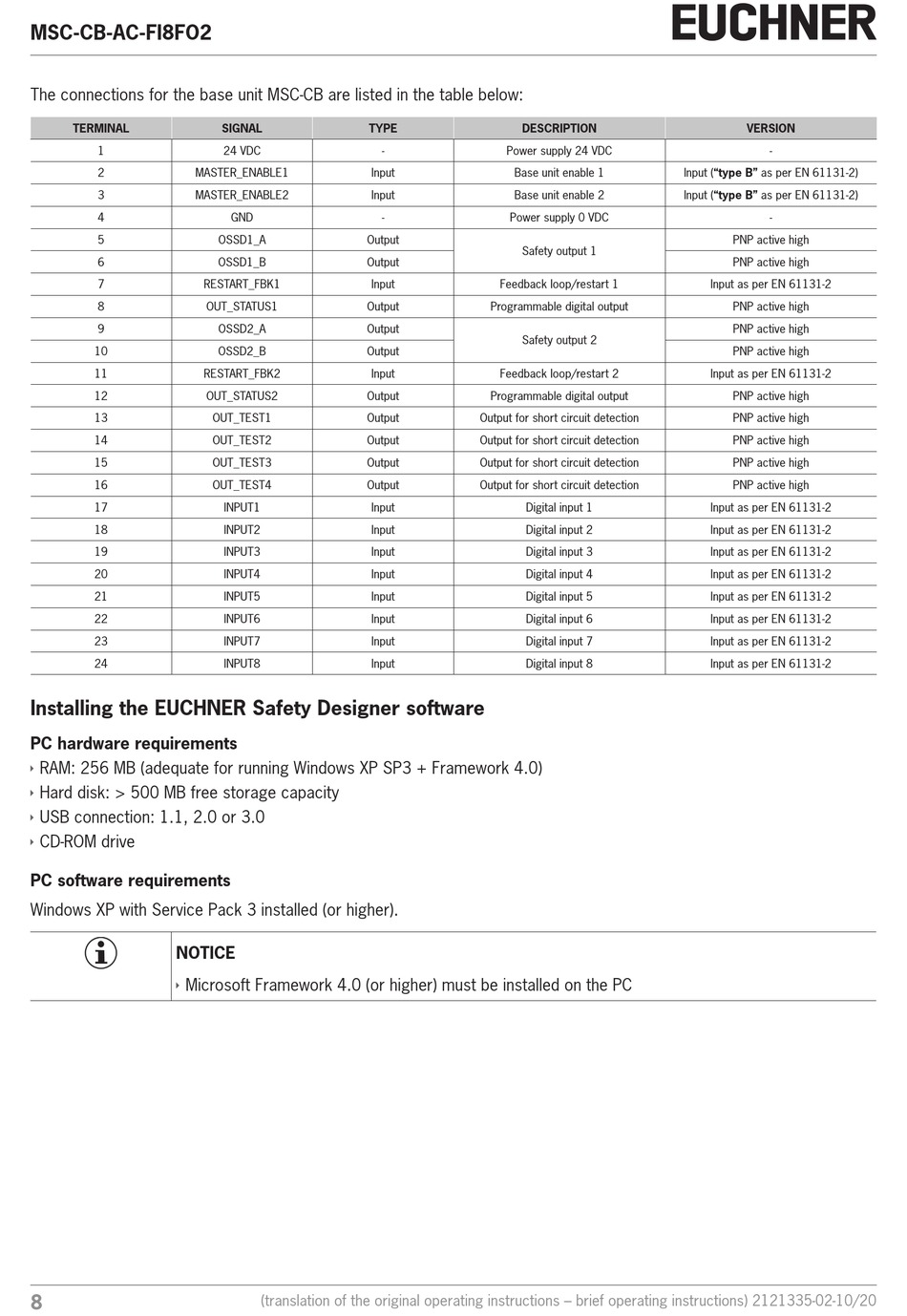

MSC-CB-AC-FI8FO2
The connections for the base unit MSC-CB are listed in the table below:
TERMINAL
1
2 MASTER_ENABLE1
3 MASTER_ENABLE2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Installing the EUCHNER Safety Designer software
PC hardware requirements
Ì RAM: 256 MB (adequate for running Windows XP SP3 + Framework 4.0)
Ì Hard disk: > 500 MB free storage capacity
Ì USB connection: 1.1, 2.0 or 3.0
Ì
CD-ROM drive
PC software requirements
Windows XP with Service Pack 3 installed (or higher).
NOTICE
Ì Microsoft Framework 4.0 (or higher) must be installed on the PC
8
SIGNAL TYPE
24 VDC
Input
Input
GND
OSSD1_A Output
OSSD1_B Output
RESTART_FBK1 Input
OUT_STATUS1 Output
OSSD2_A Output
OSSD2_B Output
RESTART_FBK2 Input
OUT_STATUS2 Output
OUT_TEST1 Output
OUT_TEST2 Output
OUT_TEST3 Output
OUT_TEST4 Output
INPUT1 Input
INPUT2 Input
INPUT3 Input
INPUT4 Input
INPUT5 Input
INPUT6 Input
INPUT7 Input
INPUT8 Input
(translation of the original operating instructions – brief operating instructions) 2121335-02-10/20
DESCRIPTION
- Power supply 24 VDC
Base unit enable 1
Base unit enable 2
- Power supply 0 VDC
Safety output 1
Feedback loop/restart 1
Programmable digital output
Safety output 2
Feedback loop/restart 2
Programmable digital output
Output for short circuit detection
Output for short circuit detection
Output for short circuit detection
Output for short circuit detection
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Digital input 5
Digital input 6
Digital input 7
Digital input 8
VERSION
-
Input ("type B" as per EN 61131-2)
Input ("type B" as per EN 61131-2)
-
PNP active high
PNP active high
Input as per EN 61131-2
PNP active high
PNP active high
PNP active high
Input as per EN 61131-2
PNP active high
PNP active high
PNP active high
PNP active high
PNP active high
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
Input as per EN 61131-2
