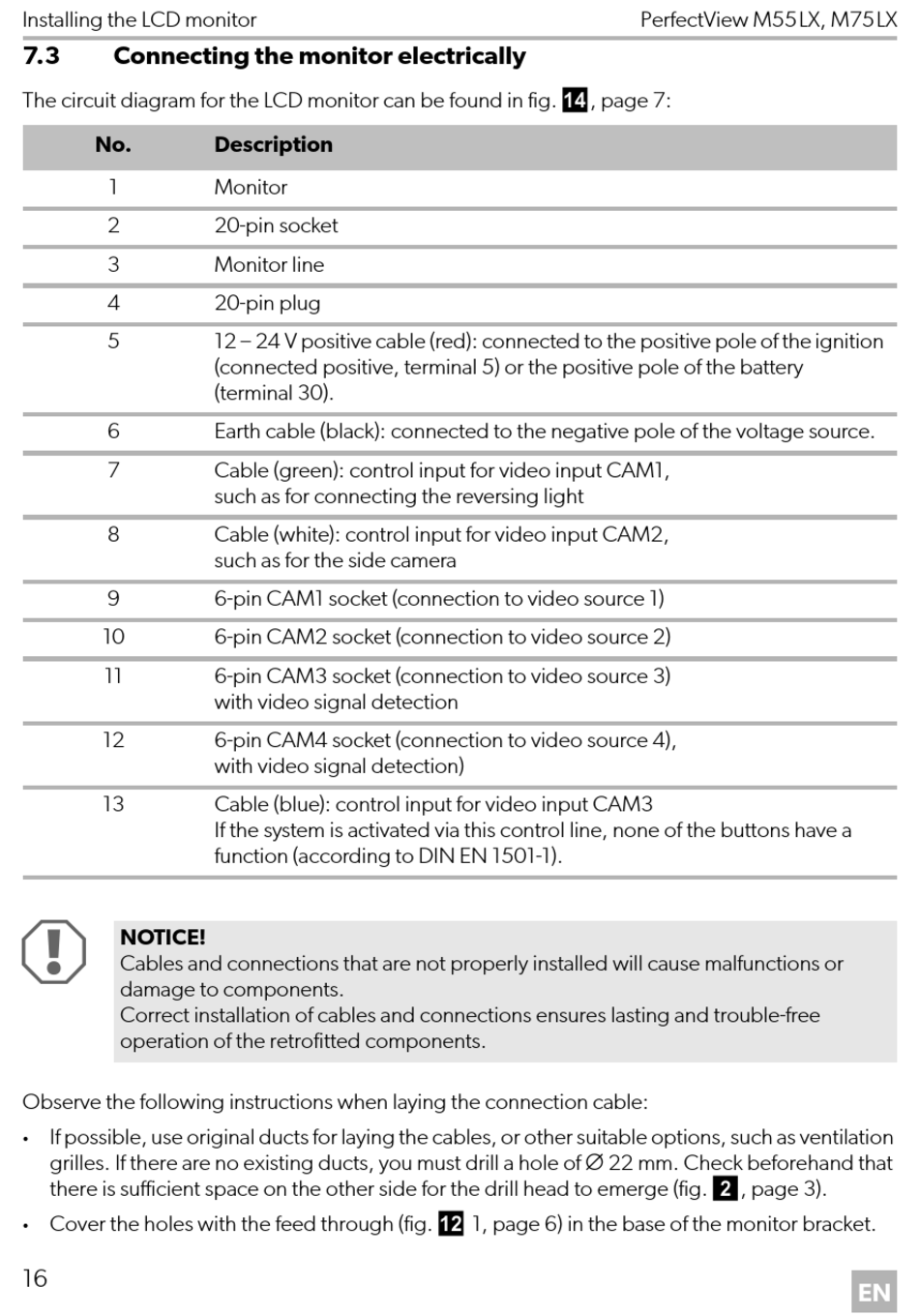

Installing the LCD monitor
7.3 Connecting the monitor electrically
The circuit diagram for the LCD monitor can be found in fig. d, page 7:
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
A
NOTICE!
Cables and connections that are not properly installed will cause malfunctions or
damage to components.
Correct installation of cables and connections ensures lasting and trouble-free
operation of the retrofitted components.
Observe the following instructions when laying the connection cable:
•
If possible, use original ducts for laying the cables, or other suitable options, such as ventilation
grilles. If there are no existing ducts, you must drill a hole of ∅ 22 mm. Check beforehand that
there is sufficient space on the other side for the drill head to emerge (fig. 2, page 3).
Cover the holes with the feed through (fig. b 1, page 6) in the base of the monitor bracket.
•
16
Description
Monitor
20-pin socket
Monitor line
20-pin plug
12 – 24 V positive cable (red): connected to the positive pole of the ignition
(connected positive, terminal 5) or the positive pole of the battery
(terminal 30).
Earth cable (black): connected to the negative pole of the voltage source.
Cable (green): control input for video input CAM1,
such as for connecting the reversing light
Cable (white): control input for video input CAM2,
such as for the side camera
6-pin CAM1 socket (connection to video source 1)
6-pin CAM2 socket (connection to video source 2)
6-pin CAM3 socket (connection to video source 3)
with video signal detection
6-pin CAM4 socket (connection to video source 4),
with video signal detection)
Cable (blue): control input for video input CAM3
If the system is activated via this control line, none of the buttons have a
function (according to DIN EN 1501-1).
PerfectView M55LX, M75LX
EN
