1.6

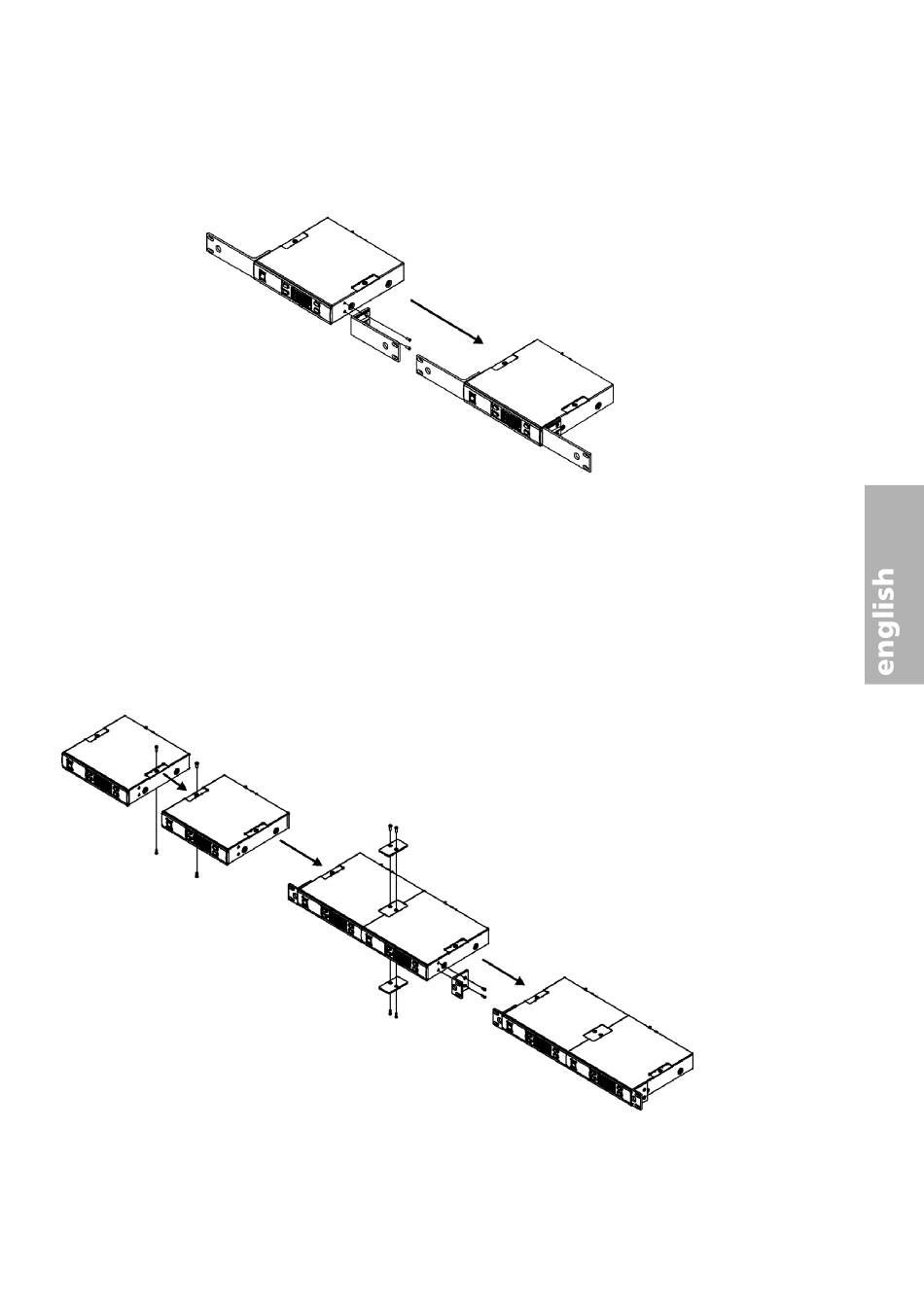

19"-Rack Mounting

One Transmitter
1. To mount the transmitter into a 19"-rack mount a FB 71 mounting bracket on the left
and right hand side of the transmitter.
Two Transmitters
1. Remove the screws on the top and bottom of the two transmitters.
2. Mount the connecting plates on the top and bottom of the two transmitters.
3. After joining the two transmitters together, mount a FB 72 mounting bracket on the left
and right hand side.
31
