1.

SE 900 Stereo Transmitter

The SE 900 is a UHF stereo transmitter. In each 24 MHz bandwidth there are 16 pre-programmed,
selectable and non-interfering frequencies available. The SE 900 employs the latest high-
efficiency transmitting circuitry and includes a rugged metal casing which combine to make
it the right choice for audio professionals.
1.1

Features

• LC-Display
• 9.5" casing
• Combo socket for balanced and unbalanced inputs
• For stereo and mono operation
• UHF PLL Synthesized technology for 16 pre-programmed, selectable frequencies
• Dynamic expander to ensure a S/N ratio of greater than 90 dB
• A built-in limiter avoids distortion at high input levels
• 1/4" (6.35 mm) headphone connection
1.2

Controls and Indicators

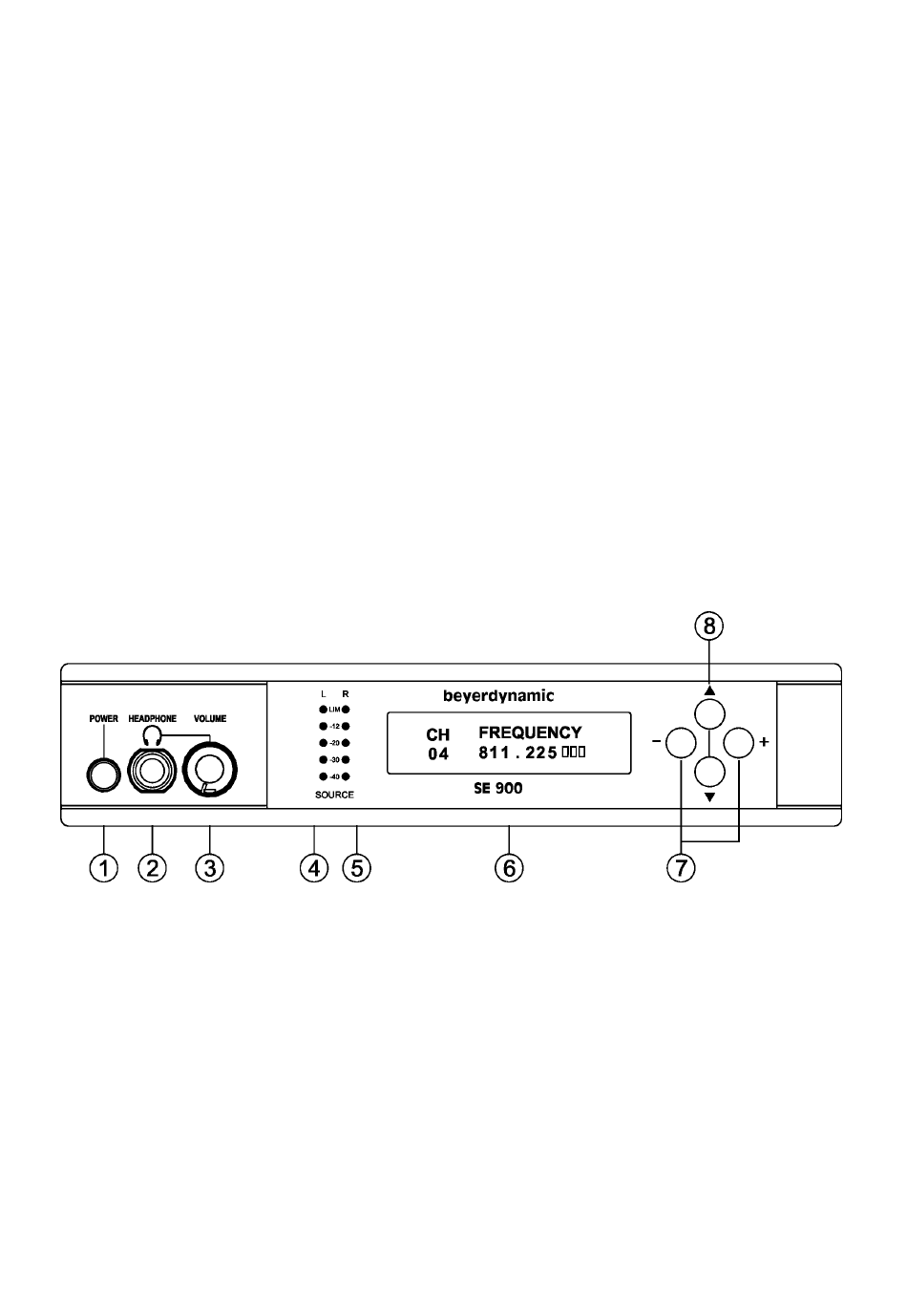

Front View
(1) Power switch On/Off
(2) Headphone connection
(3) Volume control for headphone/earphone
(4) Audio input (L) and limiter. Indicates audio signal strength on the left channel.
(5) Audio input (R) and limiter. Indicates audio signal strength on the right channel.
(6) LC-Display
(7) Setup buttons to adjust configuration
(8) Function buttons to select various menus
