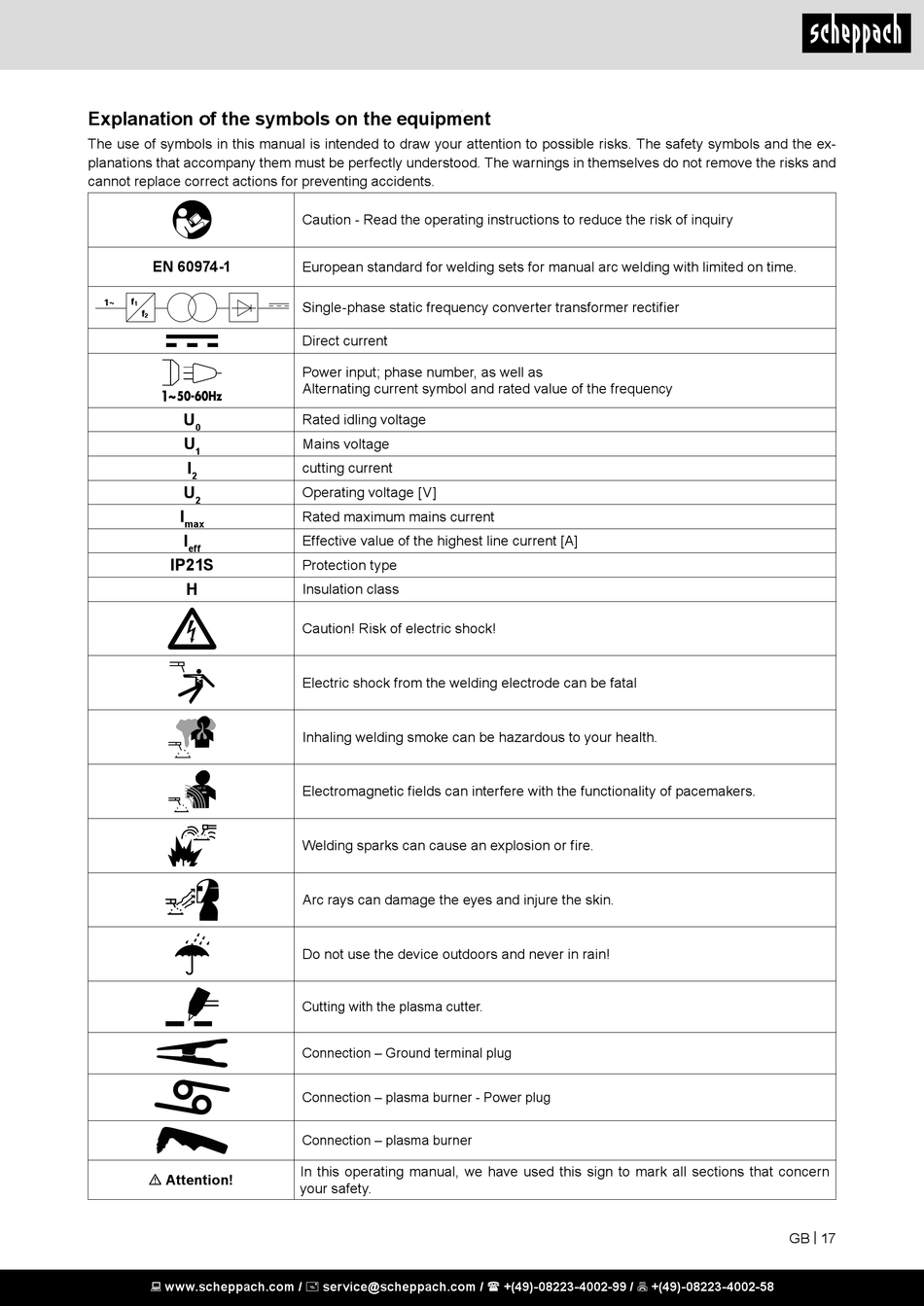

Explanation of the symbols on the equipment

The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the ex-
planations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and
cannot replace correct actions for preventing accidents.
EN 60974-1
f
1~
1
f
2
U
0
U
1
l
2
U
2
l
max
l
eff
IP21S
H
m Attention!
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
Caution - Read the operating instructions to reduce the risk of inquiry
European standard for welding sets for manual arc welding with limited on time.
Single-phase static frequency converter transformer rectifier
Direct current
Power input; phase number, as well as
Alternating current symbol and rated value of the frequency
Rated idling voltage
Mains voltage
cutting current
Operating voltage [V]
Rated maximum mains current
Effective value of the highest line current [A]
Protection type
Insulation class
Caution! Risk of electric shock!
Electric shock from the welding electrode can be fatal
Inhaling welding smoke can be hazardous to your health.
Electromagnetic fields can interfere with the functionality of pacemakers.
Welding sparks can cause an explosion or fire.
Arc rays can damage the eyes and injure the skin.
Do not use the device outdoors and never in rain!
Cutting with the plasma cutter.
Connection – Ground terminal plug
Connection – plasma burner - Power plug
Connection – plasma burner
In this operating manual, we have used this sign to mark all sections that concern
your safety.
