SCAFFOLDING
Set up the laser
Set up the receiver
Downloaded from www.Manualslib.com manuals search engine

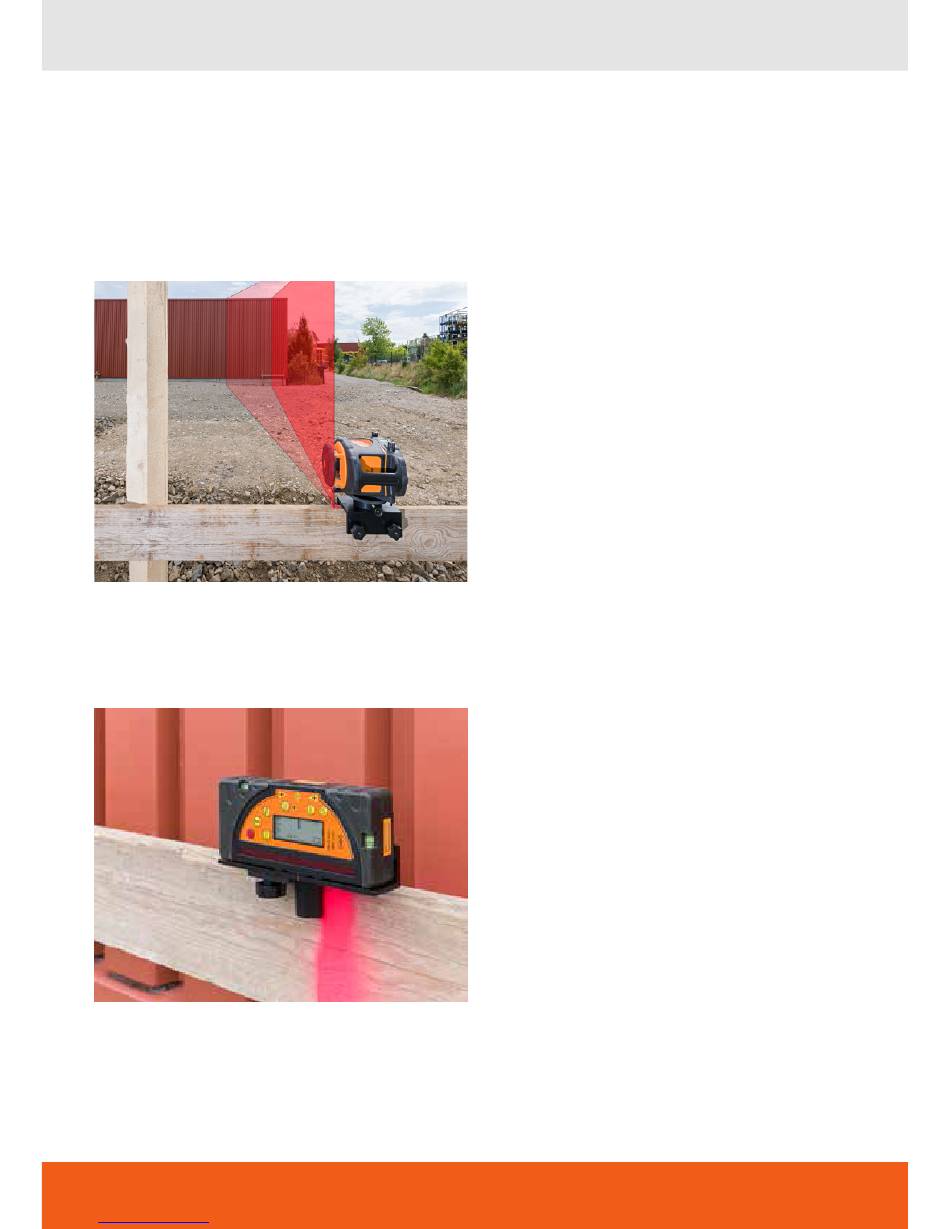

1. Attach the FL 275HV-TRACKING to the scaf-
fold clamp holder on the scaffold.
2. Switch on the laser and bring the laser beam
into coincidence with the reference nail.
1. Attach the receiver FR 77-MM TRACKING to
the scaffold using the clamp and the adapter
brackets.
2. Bring the zero mark of the receiver holder into
coincidence with the reference nail.
3. Switch on the the receiver.
