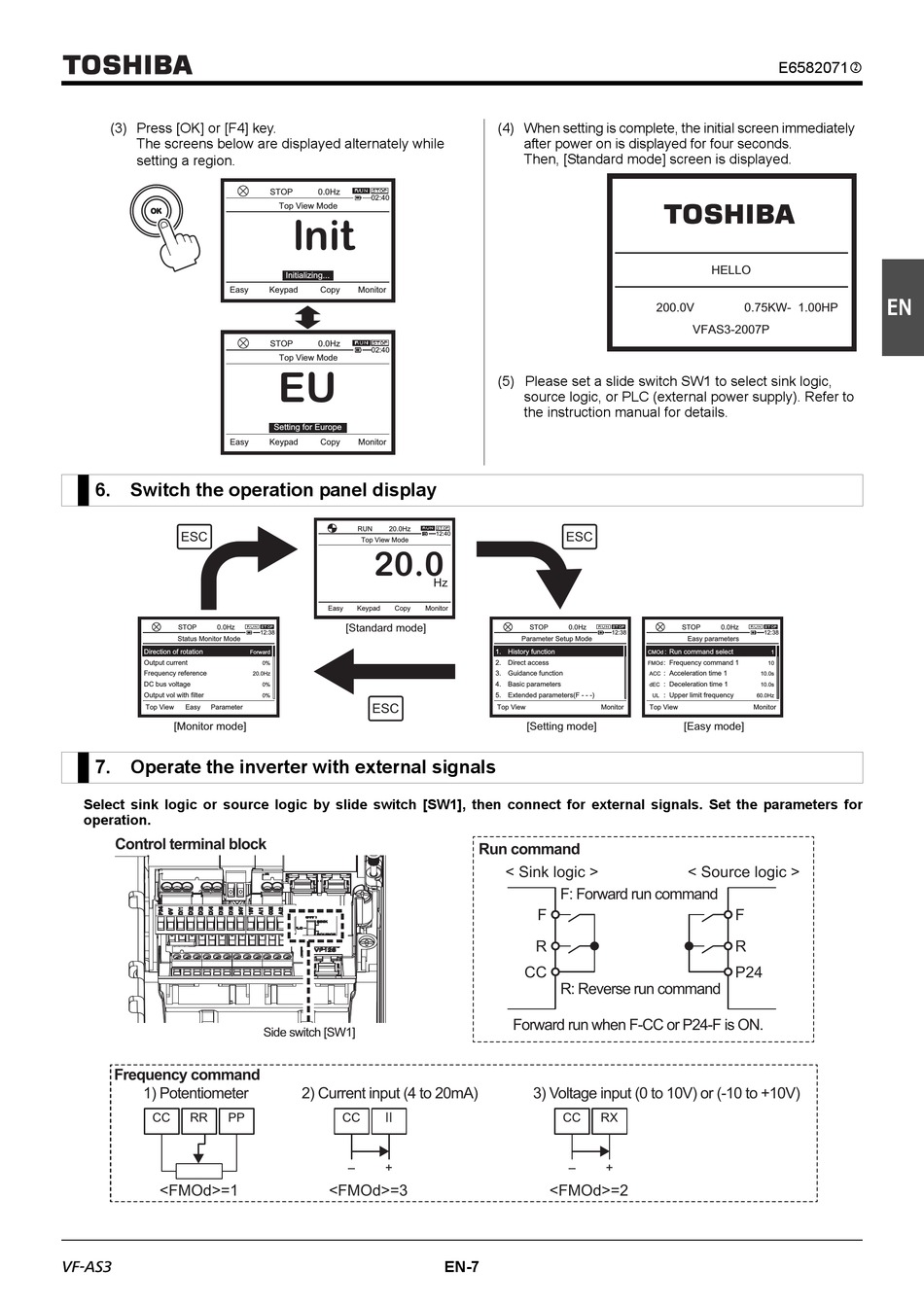

Toshiba TOSVERT VF-AS3 Schnellstartanleitung Seite 9

(3) Press [OK] or [F4] key.
The screens below are displayed alternately while
setting a region.
Easy
Easy
6. Switch the operation panel display
ESC
STOP 0.0Hz
Status Monitor Mode
Direction of rotation
Forward
Output current
Frequency reference
20.0Hz
DC bus voltage
Output vol with filter
Top View Easy Parameter
[Monitor mode]
7. Operate the inverter with external signals
Select sink logic or source logic by slide switch [SW1], then connect for external signals. Set the parameters for
operation.
Control terminal block
Frequency command
1) Potentiometer
CC RR PP
<FMOd>=1
STOP 0.0Hz
02:40
Top View Mode
lnit
Initializing...
Keypad Copy Monitor
STOP 0.0Hz
02:40
Top View Mode
EU
Setting for Europe
Keypad Copy Monitor
RUN 20.0Hz
Top View Mode
20.0
Hz
Easy Keypad Copy Monitor
[Standard mode]
12:38
0%
0%
0%
ESC
Side switch [SW1]
2) Current input (4 to 20mA)
CC
<FMOd>=3
(4) When setting is complete, the initial screen immediately
after power on is displayed for four seconds.
Then, [Standard mode] screen is displayed.
(5) Please set a slide switch SW1 to select sink logic,
source logic, or PLC (external power supply). Refer to
the instruction manual for details.
12:40
ESC
STOP 0.0Hz
Parameter Setup Mode
1. History function
2. Direct access
3. Guidance function
4. Basic parameters
5. Extended parameters(F - - -)
Top View Monitor
[Setting mode]
Run command
< Sink logic >
F: Forward run command
F
R
CC
R: Reverse run command
Forward run when F-CC or P24-F is ON.
3) Voltage input (0 to 10V) or (-10 to +10V)
CC RX
<FMOd>=2
EN-7
E6582071
HELLO
200.0V 0.75KW- 1.00HP
VFAS3-2007P
STOP 0.0Hz
12:38 12:38
Easy parameters
: Run command select
CMOd 1
: Frequency command 1
FMOd 10
: Acceleration time 1
ACC 10.0s
: Deceleration time 1 10.0s
dEC
: Upper limit frequency
UL 60.0Hz
Top View Monitor
[Easy mode]
< Source logic >
F
R
P24
