3.0 Installation

EN
This heater should be installed by a competent person, i.e. a qualified electrician. The ideal
mounting position for the MARK Infra ER electric radiant panel is on the ceiling, directly above
the area to be heated. If this is not possible, MARK Infra ER can be mounted on a wall and angled
downwards. In this situation, ensure the mounting height is in the range of 2,5-5m and the table is
within 4m of the wall.

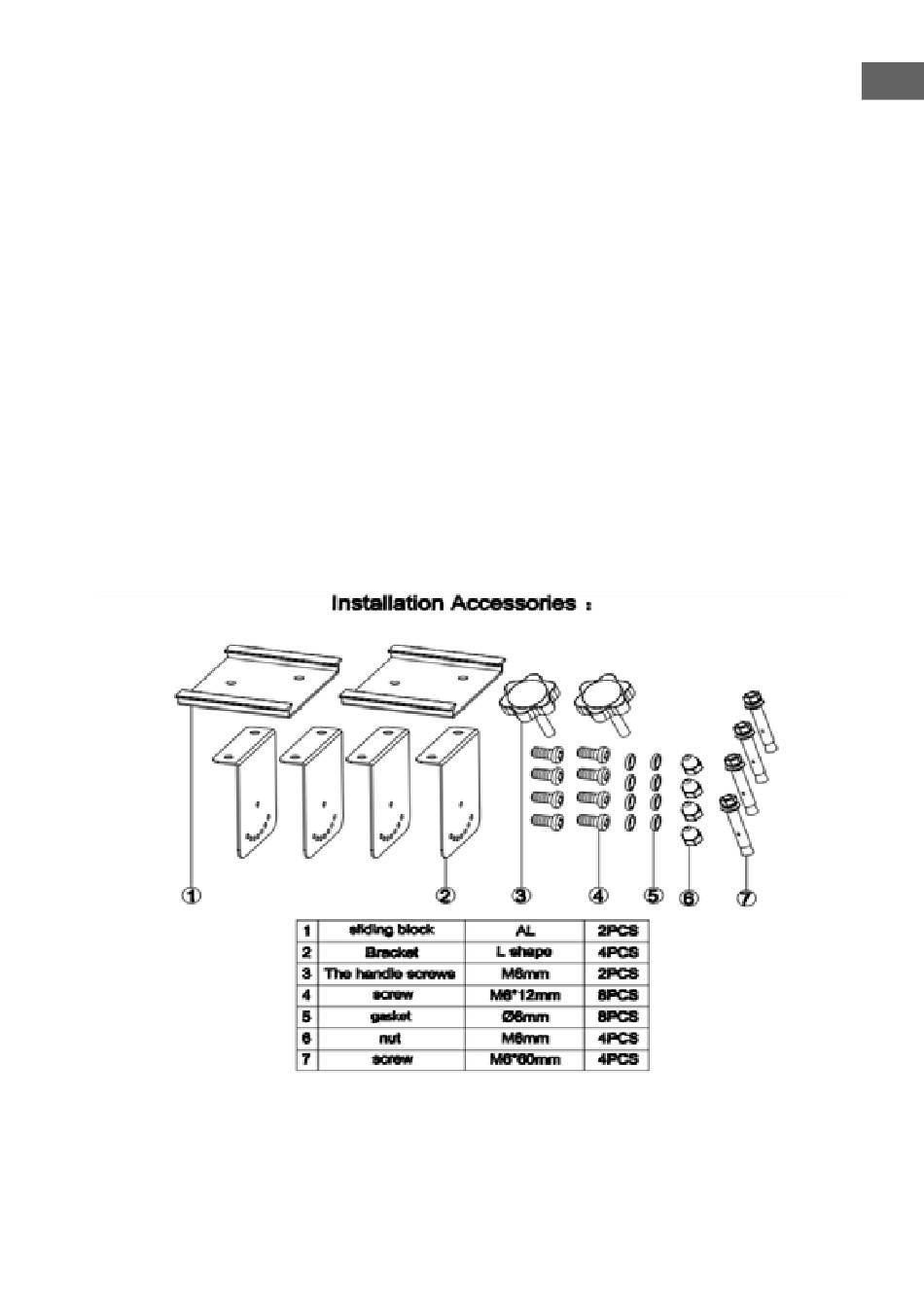

Wall/ceiling mount swivel brackets are provided with the heater which have been specifically
designed to allow this product to be fitted to a wall or ceiling. Before drilling, make sure that the
wall/ceiling is solid and that there are no hidden water pipes or electric wires.
For mounting heights more than 5m, we recommend the use of the optional accessories to
reduce the height of the heater to 2,5m-5m. This will increase the effectiveness of your MARK
Infra ER. Refer to the mounting accessory section for more information.
Electrical connections/GPO's should not be located at the back of the heater. They should be
located outside the physical footprint of the units to minimize heat build-up behind the units.
If the heater is to be mounted on an incline (eg. Vaulted ceiling), ensure the electrical connection
is located at the lowest point of the heater.
