TECHNICAL INFORMATION
FOR THE INSTALLER
Before installing the cooktop, remove the
protective film.
These cooking hobs are designed to be
embedded into kitchen fixtures measur-
ing 600 mm in depth and from 30 to 40
mm.
In order to install the cooker top into the
kitchen fixture, a hole with the dimen-
sions shown in fig. 4.1 has to be made,
keeping in consideration the following:
– within the fixture, between the bottom
side of the cooker top and the upper
surface of any other appliance or inter-
nal shelf there must be a clearance of
at least 30 mm;
– the cooker top must be kept no less
than 50 mm away from any side wall;
– the cooker top must be kept at a dis-
tance of no less than 50 mm from the
rear wall.
– there must be a distance of at least
650 mm between the hob and any wall
cupboard or extractor hood positioned
immediately above (see fig. 4.2).

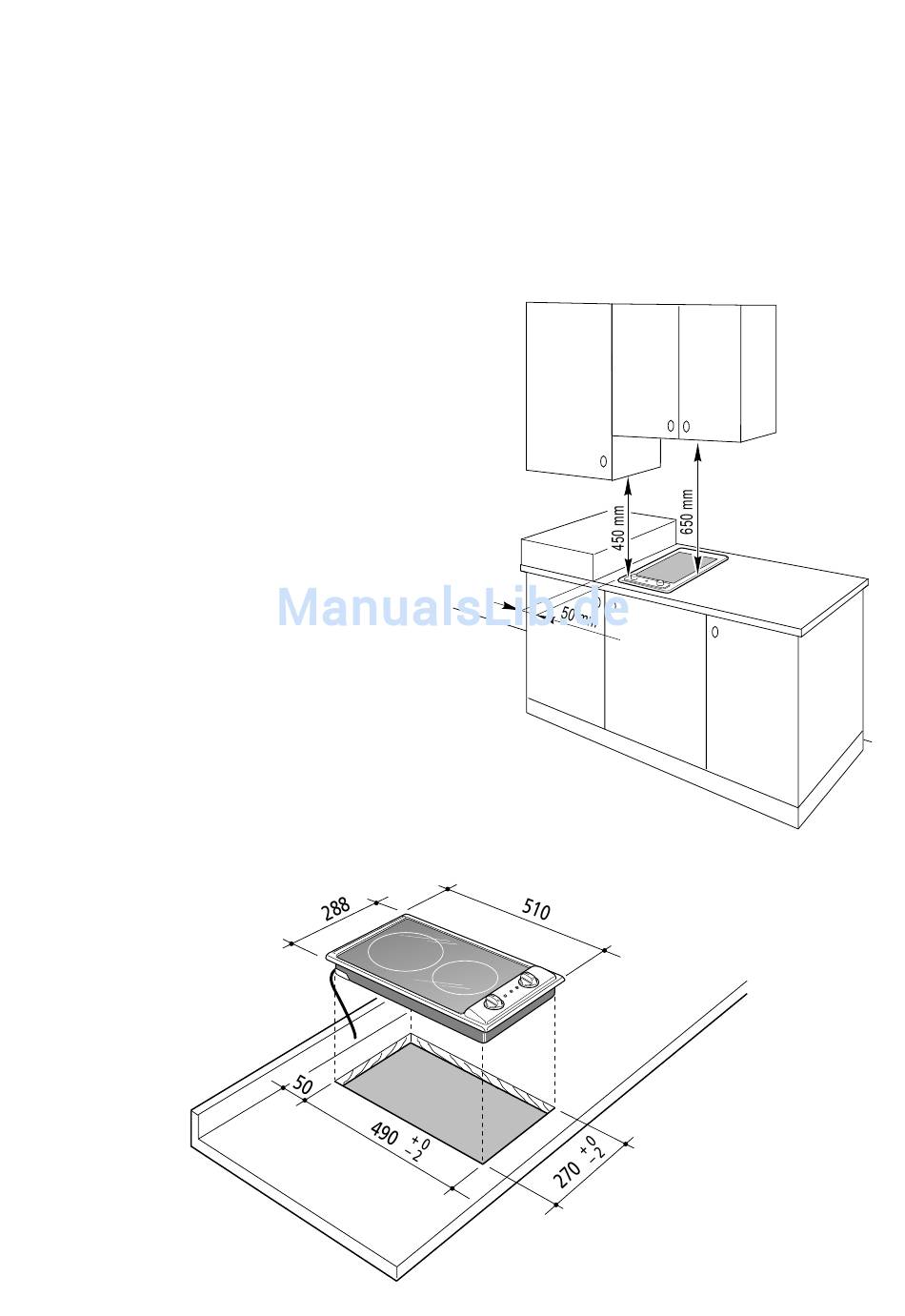

Fig. 4.1
– the coatings of the walls of the unit or
appliances near the cooktop must be
heat resistant ("Y" protection against
heating in compliance with standards
EN 60335-2-6).
Do not instal the appliance near
inflammable materials (eg. curtains).
Fig. 4.2
