2. Anschluss Schema
4. Connection diagram

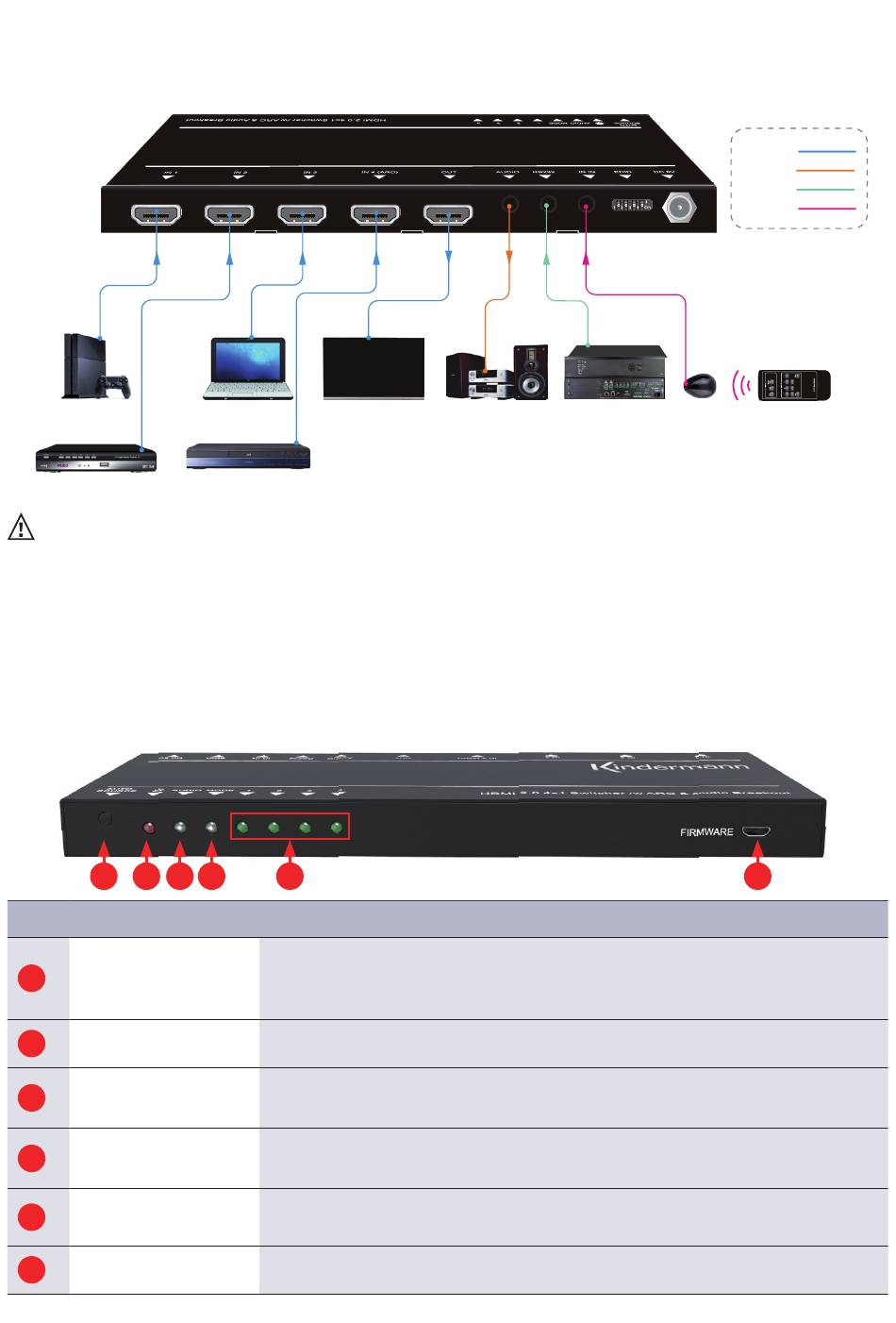

Die folgenden Systemdarstellungen zeigen typische Eingangs- und Ausgangsverbindungen, die mit diesem
The following system diagram shows typical input and output connections that can be used with this
switch:
Umschalter verwendet werden können:
Game Console
STB
Hinweis: Dieses Bild dient nur als Referenz.
Note: This image is for reference only.
5. Operating and display components
5.1 Front side
AUTO
☀
SOURCE
AUDIO
▼
▼
1
2
3
No.
Name
Switch
1
Auto/Manual
2
Operation LED
3
Audio Mode LED
4
Switching mode LED
5
LED for input 1-4
6
FIRMWARE
19
Laptop
Ray-Blu DVD
MODE
1
2
3
4
▼
▼
▼
▼
▼
▼
4
5
Description
Press to switch to the next input source.
Press and hold for at least three seconds to switch between manual
and automatic mode.
Illuminates red when power is applied.
Illuminates green when de-embedding audio.
Illuminates yellow in ARC mode.
Illuminates green in manual mode.
Illuminates yellow in auto switching mode.
The LED illuminates green when there is an active HDMI input on the corre-
sponding channel.
Micro USB port for fi rmware update.
TV
Speaker
5
Receiver
Central Control
System
HDMI:
Audio:
RS232:
Control:
Remote
