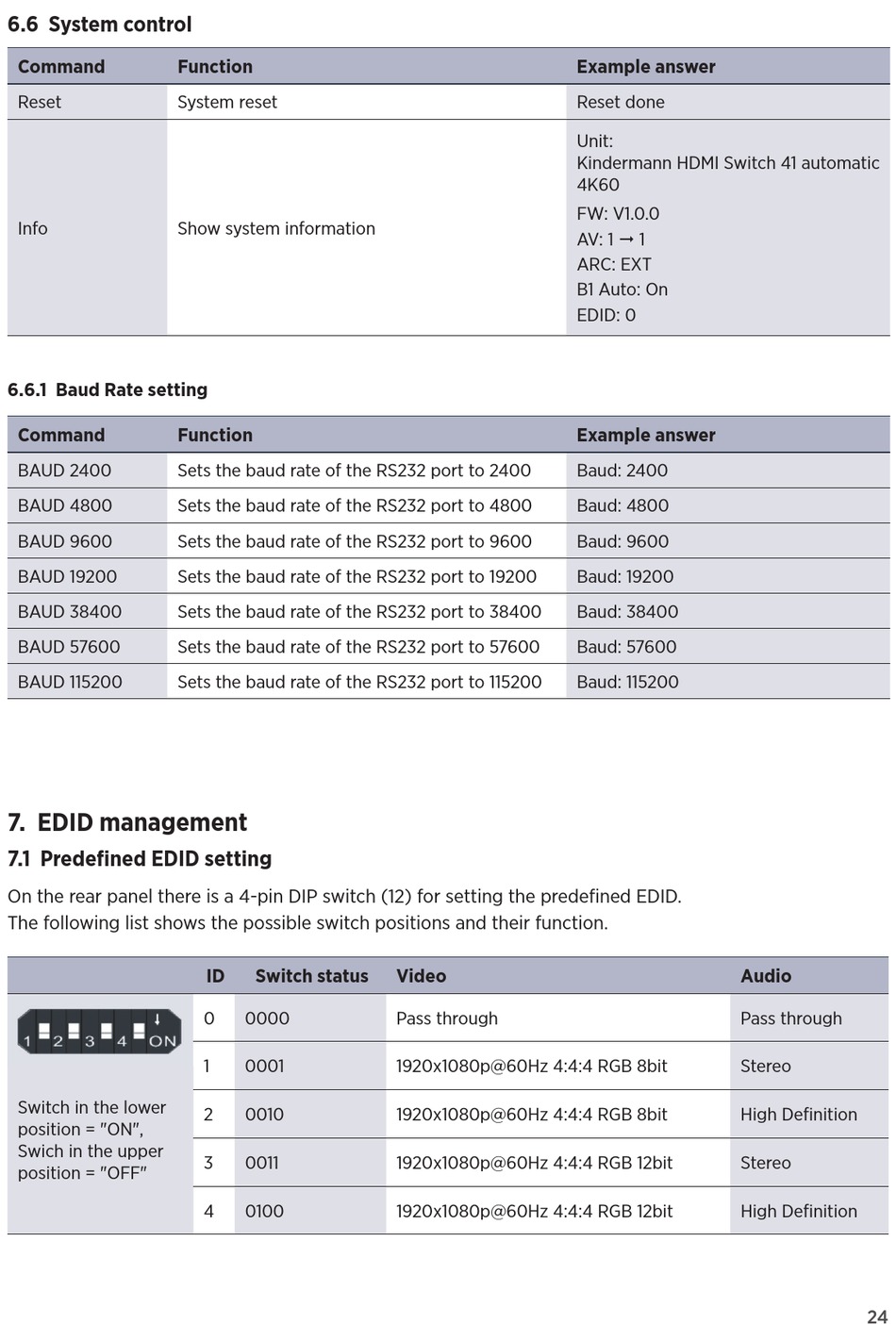

6.6 System control

Command
Reset
Info

6.6.1 Baud Rate setting

Command
BAUD 2400
BAUD 4800
BAUD 9600
BAUD 19200
BAUD 38400
BAUD 57600
BAUD 115200

7. EDID management

7.1 Predefi ned EDID setting
On the rear panel there is a 4-pin DIP switch (12) for setting the predefi ned EDID.
The following list shows the possible switch positions and their function.
Switch in the lower
position = "ON",
Swich in the upper
position = "OFF"
Function
System reset
Show system information
Function
Sets the baud rate of the RS232 port to 2400
Sets the baud rate of the RS232 port to 4800
Sets the baud rate of the RS232 port to 9600
Sets the baud rate of the RS232 port to 19200
Sets the baud rate of the RS232 port to 38400
Sets the baud rate of the RS232 port to 57600
Sets the baud rate of the RS232 port to 115200
ID Switch status
0 0000
1 0001
2 0010
3 0011
4 0100
Video
Pass through
1920x1080p@60Hz 4:4:4 RGB 8bit
1920x1080p@60Hz 4:4:4 RGB 8bit
1920x1080p@60Hz 4:4:4 RGB 12bit
1920x1080p@60Hz 4:4:4 RGB 12bit
Example answer
Reset done
Unit:
Kindermann HDMI Switch 41 automatic
4K60
FW: V1.0.0
AV: 1  1
ARC: EXT
B1 Auto: On
EDID: 0
Example answer
Baud: 2400
Baud: 4800
Baud: 9600
Baud: 19200
Baud: 38400
Baud: 57600
Baud: 115200
Audio
Pass through
Stereo
High Defi nition
Stereo
High Defi nition
