7.2 User-defi ned EDID setting
Additionally to the predifi ned EDID and the existing (on the device) EDID up to 5 individual confi gura-
tions can be stored and selcted on the switch. In order to create your individual EDID download it via an
appropriate device or software or create an EDID fi le by yourself.
1. Rename the custom EDID according to the following format:
� EC_xx_xxxx_xxx.bin
• EC: Corresponds to EDID.
• xx: Corresponds to EDID ID (11-15)
• xxxx: Corresponds to the video parameter.
• xxx: Corresponds to the audio format.
• Example: EC_11_720P_LPCM.bin
2. Turn on the switch and connect it to a PC with a USB cable.
The PC automatically recognizes a USB hard disk called "BOOTDISK".
3. Copy the renamed EDID (e. g. EC_11_720P_LPCM.bin) to "BOOTDISK".
4. Open the USB hard disk again and check that the fi le name "READY.TXT" is automatically
renamed to "SUCCESS.TXT". If so, the custom EDID was successfully imported into the switcher and
saved as the corresponding EDID ID. To activate the EDID set the DIP switch according to the list
below.
5. Repeat the third to fi fth step to copy other custom EDIDs to the "BOOTDISK".
6. Remove the USB cable.

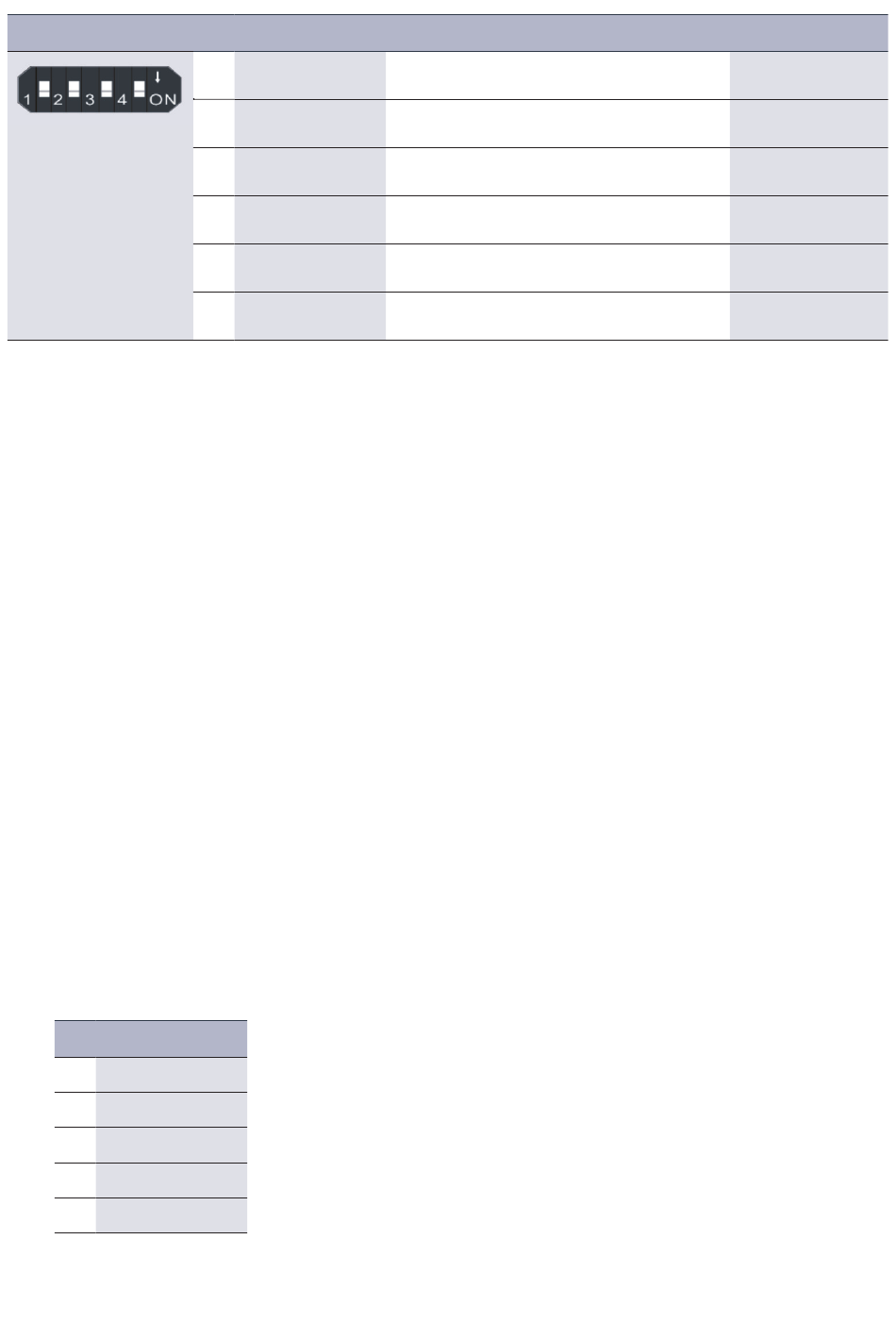

ID Switch status
11 1011
12 1100
13 1101
14 1110
15 1111
25
ID Switch status
5 0101
6 0110
7 0111
8 1000
9 1001
10 1010
Video
3840x2160p@60Hz 4:2:0 RGB 8bit
3840x2160p@60Hz 4:2:0 RGB 8bit
3840x2160p@60Hz 4:4:4 RGB 10bit HDR
3840x2160p@60Hz 4:4:4 RGB 10bit HDR
1280x800@60Hz
1920x1200@60Hz
Audio
Stereo
High Defi nition
Stereo
High Defi nition
Stereo
Stereo
