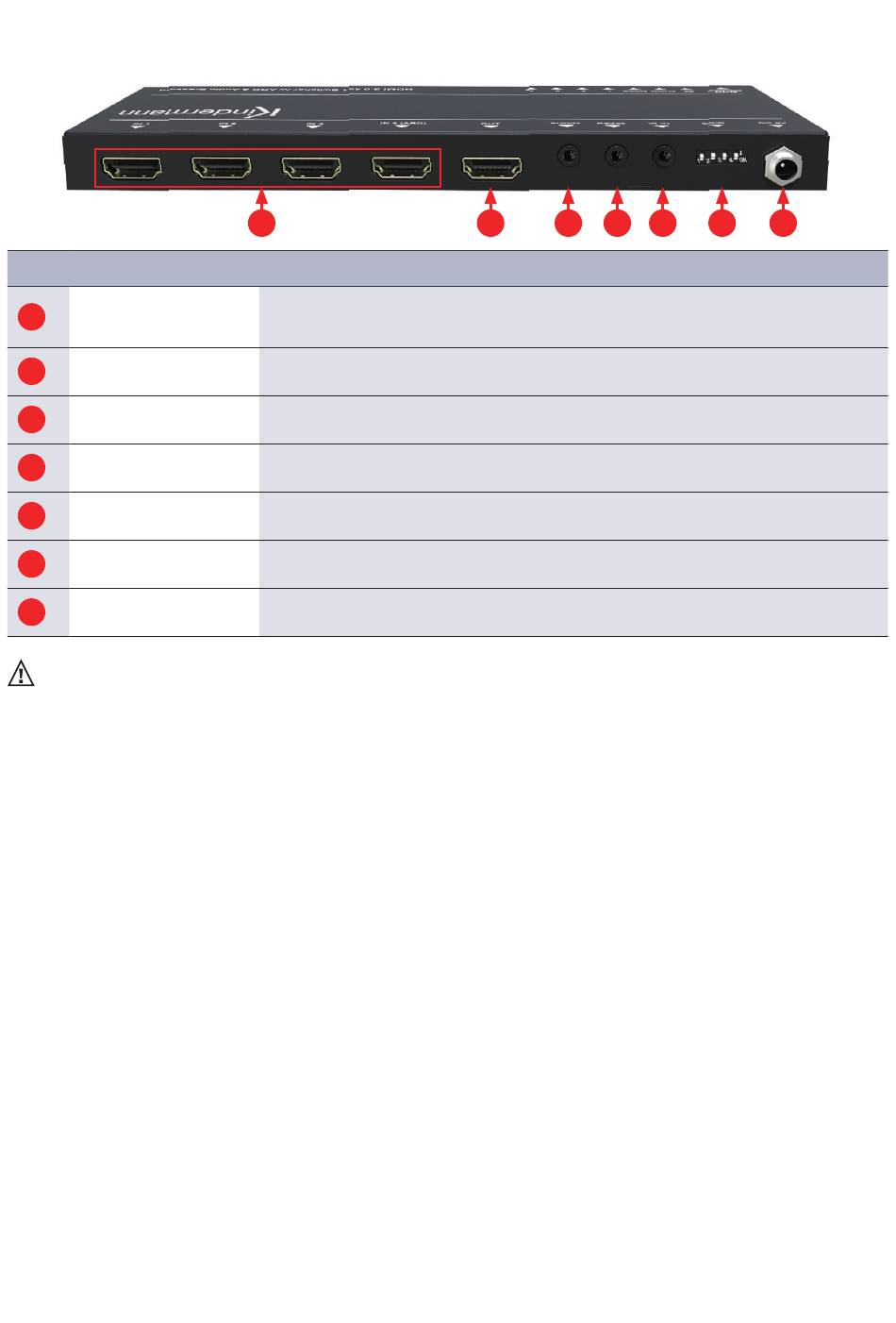

5.2 Rear side

IN 1
▼
No. Name
7 IN 1-4
8
OUT
9 AUDIO
10 RS232
11 IR IN
12 EDID
13 DC 5V
Note: The HDCP-compliant output status depends on the input signal.
If the input signal is with HDCP, the output signal is with HDCP and vice versa.

6. Operation

6.1 Manual selection

When the switch is in manual switch mode, the switch mode LED is green.
By pressing the "Auto/Source" button, you switch to the next input.

6.2 Automatic selection

To activate the automatic selection, press and hold the "Auto/Source" button for at least three seconds.
The "Switching Mode" LED will now light up in yellow.
If the automatic selection is switched on, it will switch according to these rules:
• New Input: If a new device is connected, the system automatically switches to this input. (When con-
nection notebooks you might activate the signal output on the device manually.)
• Reboot: In case of a power interruption, the unit switches to the last input, if the last selected source
is still available. Otherwise, the unit switches to the fi rst available active input, starting with HDMI
input 1. (Priority: 1 prior to 2, 2 prio to 2 and so on)
• Source removed: When an active source is removed, the switch switches to the fi rst available active
input, starting with HDMI input 1. (Priority: 1 prior to 2, 2 prio to 2 and so on)
IN 2 IN 3
IN 4 (ARC)
▼
▼
7
Description
Type A HDMI input connector for connecting HDMI sources.
HDMI connector 4 supports ARC.
Type A HDMI output connector for connecting a display.
3.5 mm jack socket for analogue stero audio output.
3.5 mm mini jack for connecting a control device (e. g. media control system).
3.5 mm mini jack socket for connecting the IR Sensor (in scope of delivery).
4-pin DIP switch for EDID setting.
Hollow plug socket; for connecting the enclosed 5V DC plug-in power supply unit.
OUT
AUDIO
▼
▼
▼
8 9
RS232 IR IN
EDID DC 5V
▼ ▼
▼ ▼
10 11 12 13
