MA506
28

Operation

Downloaded from www.Manualslib.com


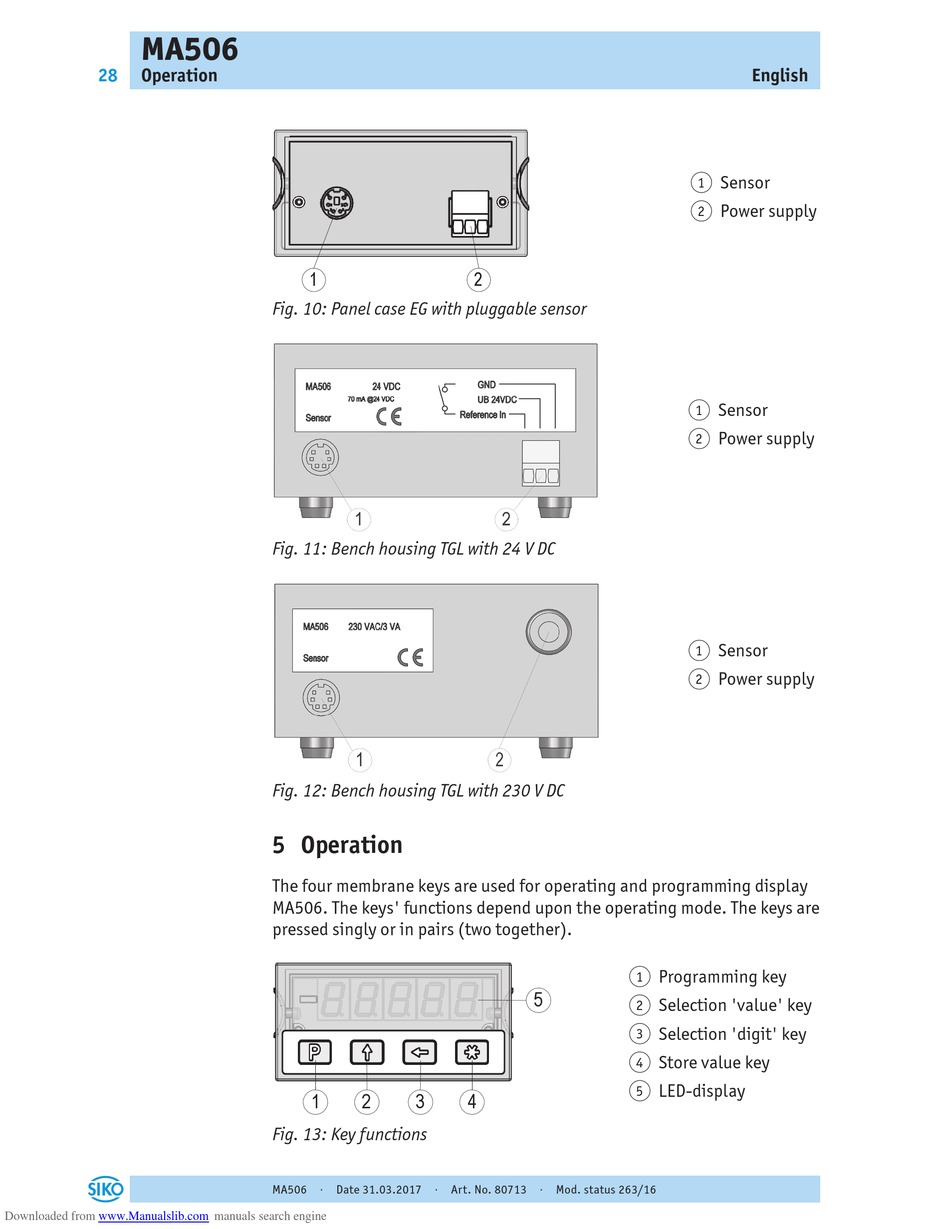

Fig. 10: Panel case EG with pluggable sensor
Fig. 11: Bench housing TGL with 24 V DC
Fig. 12: Bench housing TGL with 230 V DC
5 Operation
The four membrane keys are used for operating and programming display
MA506. The keys' functions depend upon the operating mode. The keys are
pressed singly or in pairs (two together).
 
Fig. 13: Key functions
MA506 · Date 31.03.2017 · Art. No. 80713 · Mod. status 263/16
manuals search engine


 
English
Sensor
1
Power supply
2
Sensor
1
Power supply
2
Sensor
1
Power supply
2
Programming key
1
Selection 'value' key
2
Selection 'digit' key
3
Store value key
4
LED-display
5
