MA506

Operation

Basically, all connections are protected against external interference.
NOTICE
Choose a place of operation that excludes inductive or capacitive inter-
ference influences on the magnetic sensor or its connection lines. When
mounting the system keep a maximum possible distance from lines loaded
with interference. If necessary, provide additional installations including
screening shields or metallized housings.
Sensor connection
Via 6 pole rear side Mini-Din socket (see

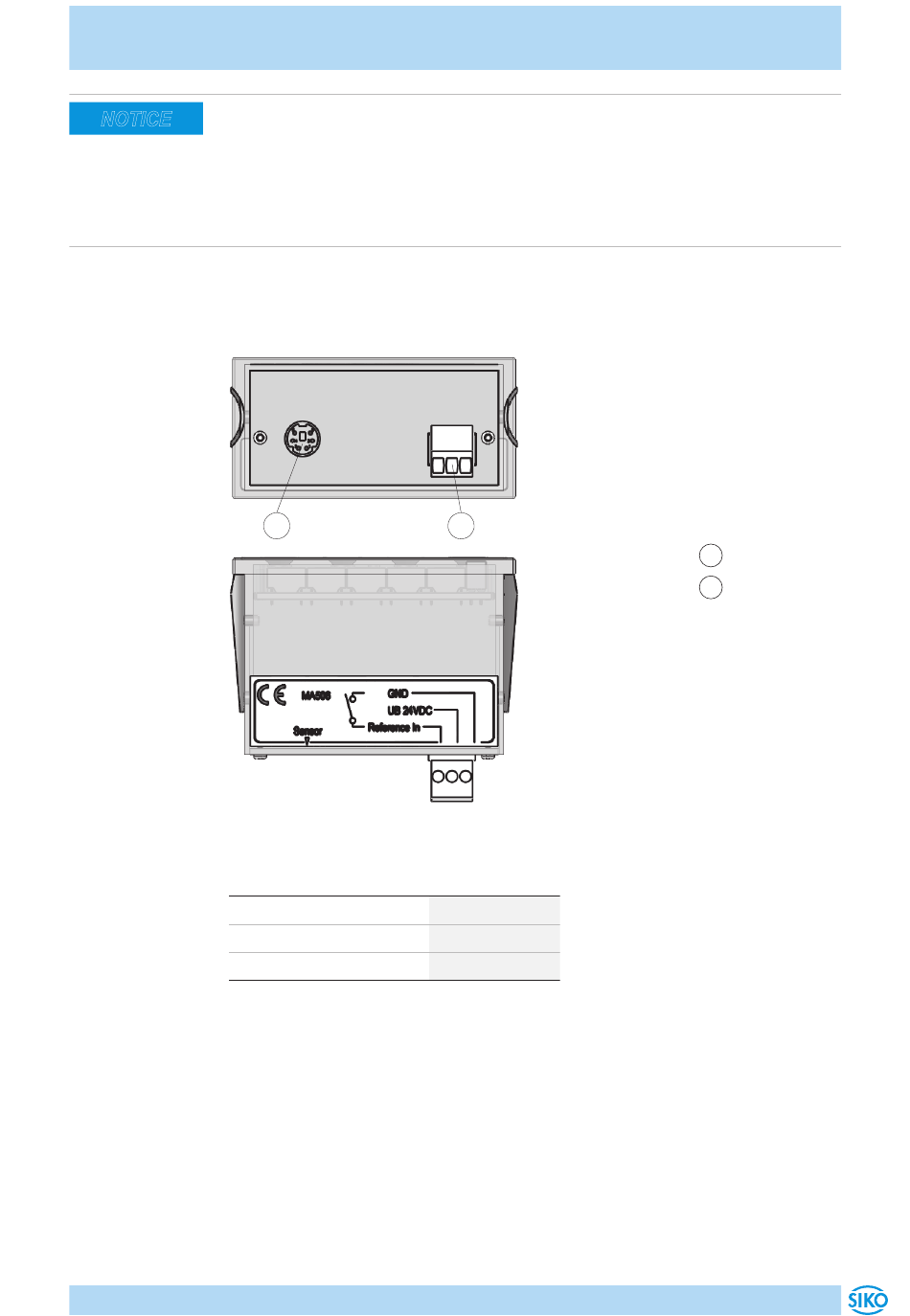

Fig. 2: Panel case EG with pluggable sensor
Signal
Reference input
+24 V DC
GND
5 Operation
The four membrane keys are used for operating and programming display
MA506. The keys' functions depend upon the operating mode. The keys are
pressed singly or in pairs (two together).
MA506 · Date 08.05.2019 · Art. No. 80713 · Mod. status 122/19
1
PIN
1
2
3
Fig. 2).
2
English 19
Sensor
1
Power supply
2
