Associating Wireless Daylight Sensors and GRAFIK Eye
(for wireless enabled units only)
Lutron's wireless Radio Powr Savr
GRAFIK Eye QS Wireless to adjust light levels when certain daylight levels are detected.
This section applies to installations where the GRAFIK Eye QS Wireless is being used in
a single-room wireless installation.

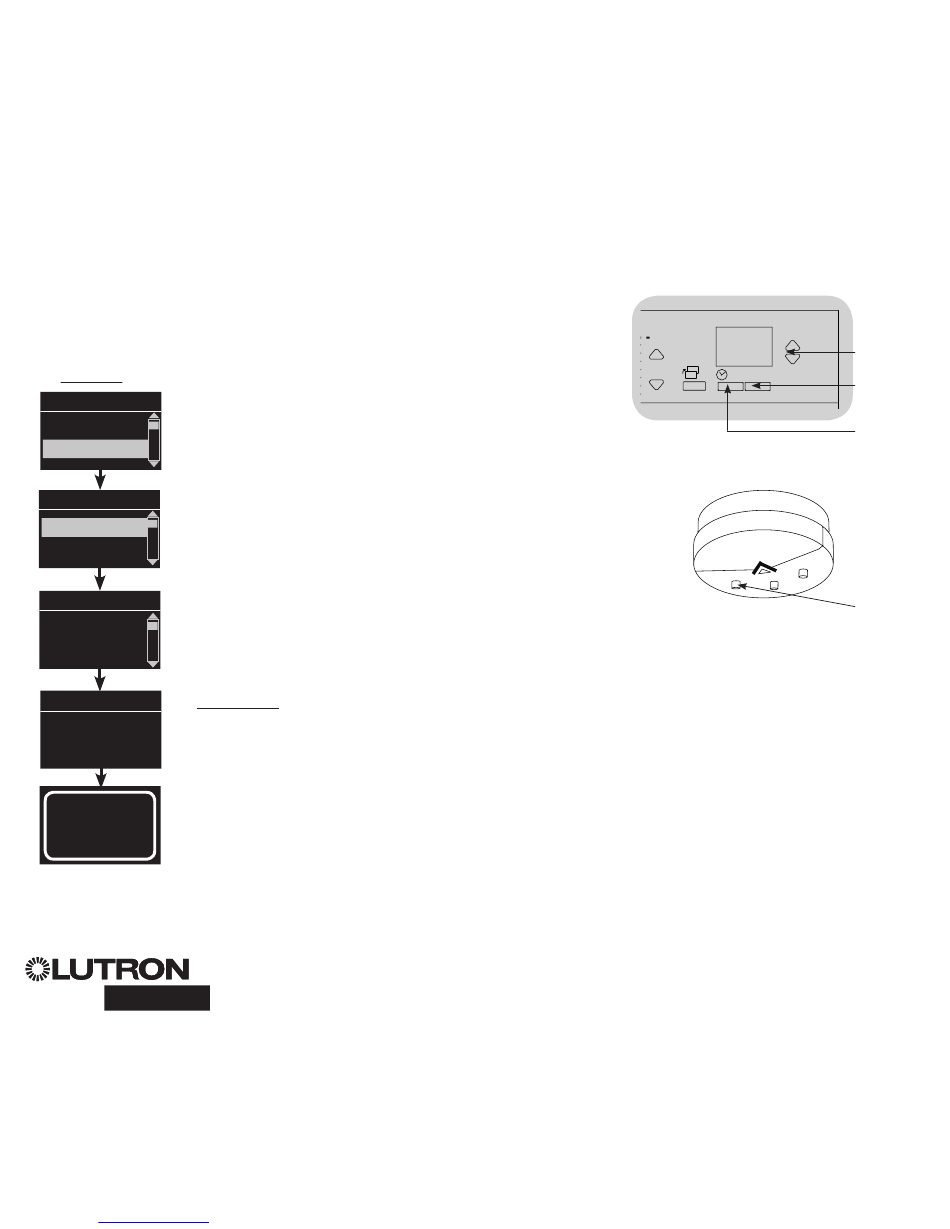

To associate wireless daylight sensors and GRAFIK Eye QS Wireless control units:
1. Make sure the wireless mode of the GRAFIK Eye QS control unit
Main menu
Zone Setup
Sensor Setup
2. Enter programming mode (see page 9).
3. Use the Master buttons to highlight "Sensor setup" and press
Sensor Setup
Add wireless sensors
4. Use the Master buttons to highlight "Add wireless sensors" and
Daylight
5. Press and hold the "Link" button on the front of the daylight
Add wireless sen
6. Press the OK button on the GRAFIK Eye QS control unit. A
Initiate association
of sensors
7. Repeat the above steps for all desired sensors.
8. Exit programming mode (see page 9).
Daylight
To disassociate wireless daylight sensors and GRAFIK Eye QS
control units:
SN: xxxx-xxxx:
Refer to the Radio Powr Savr daylight sensor install guide to return
press OK to Save the sensor to its "out-of-box" functionality . Doing so will remove
its programming from the GRAFIK Eye QS control unit.
Note: The wireless signal has a range of 10 m (30 feet) through
standard construction.
Saved
*Assigned*
Downloaded from www.Manualslib.com
daylight sensors can be associated with the
TM
is "Enabled" (see page 10).
Note: To properly save the wireless mode, exit and then re-enter
programming mode before associating wireless daylight
sensors.
the OK button to accept.
press the OK button to accept.
sensor until the sensor starts flashing. The info screen on the
GRAFIK Eye QS will display the sensor's serial number.
screen will confirm that the sensor has been assigned.
For additional information, see the complete installation and operation guide at www.lutron.com/qs
®
manuals search engine
1 9 2 10 3 11 4 12 5 13 6
GRAFIK Eye QS with DALI Quick Installation and Operation Guide 16
®
QS Wireless Control Units
®
14 7 15 8 16
9-16
1-8
OK
Master
buttons
OK
button
Timeclock
(back) button
Link
button
