11
TECHNICAL DATA
11.1

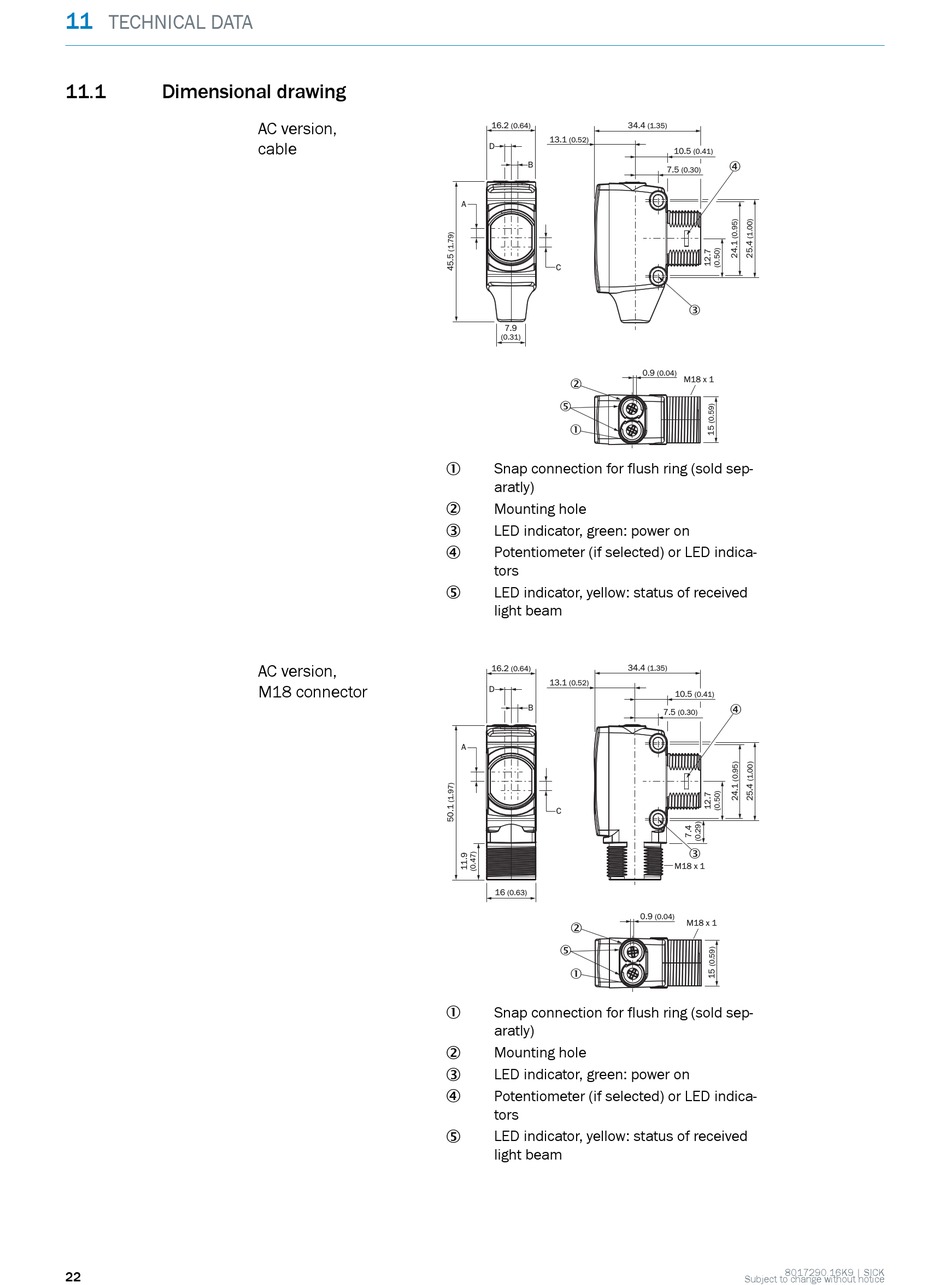

Dimensional drawing

22
AC version,
cable
AC version,
M18 connector
16.2 (0.64)
13.1
(0.52)
D
B
A
C
7.9
(0.31)
2
5
1
Snap connection for flush ring (sold sep‐
1
aratly)
Mounting hole
2
LED indicator, green: power on
3
Potentiometer (if selected) or LED indica‐
4
tors
LED indicator, yellow: status of received
5
light beam
16.2
(0.64)
13.1 (0.52)
D
B
A
C
16
(0.63)
2
5
1
Snap connection for flush ring (sold sep‐
1
aratly)
Mounting hole
2
LED indicator, green: power on
3
Potentiometer (if selected) or LED indica‐
4
tors
LED indicator, yellow: status of received
5
light beam
34.4
(1.35)
10.5
(0.41)
4
7.5
(0.30)
3
0.9
(0.04)
M18 x 1
34.4
(1.35)
10.5
(0.41)
4
7.5
(0.30)
3
M18 x 1
0.9
(0.04)
M18 x 1
