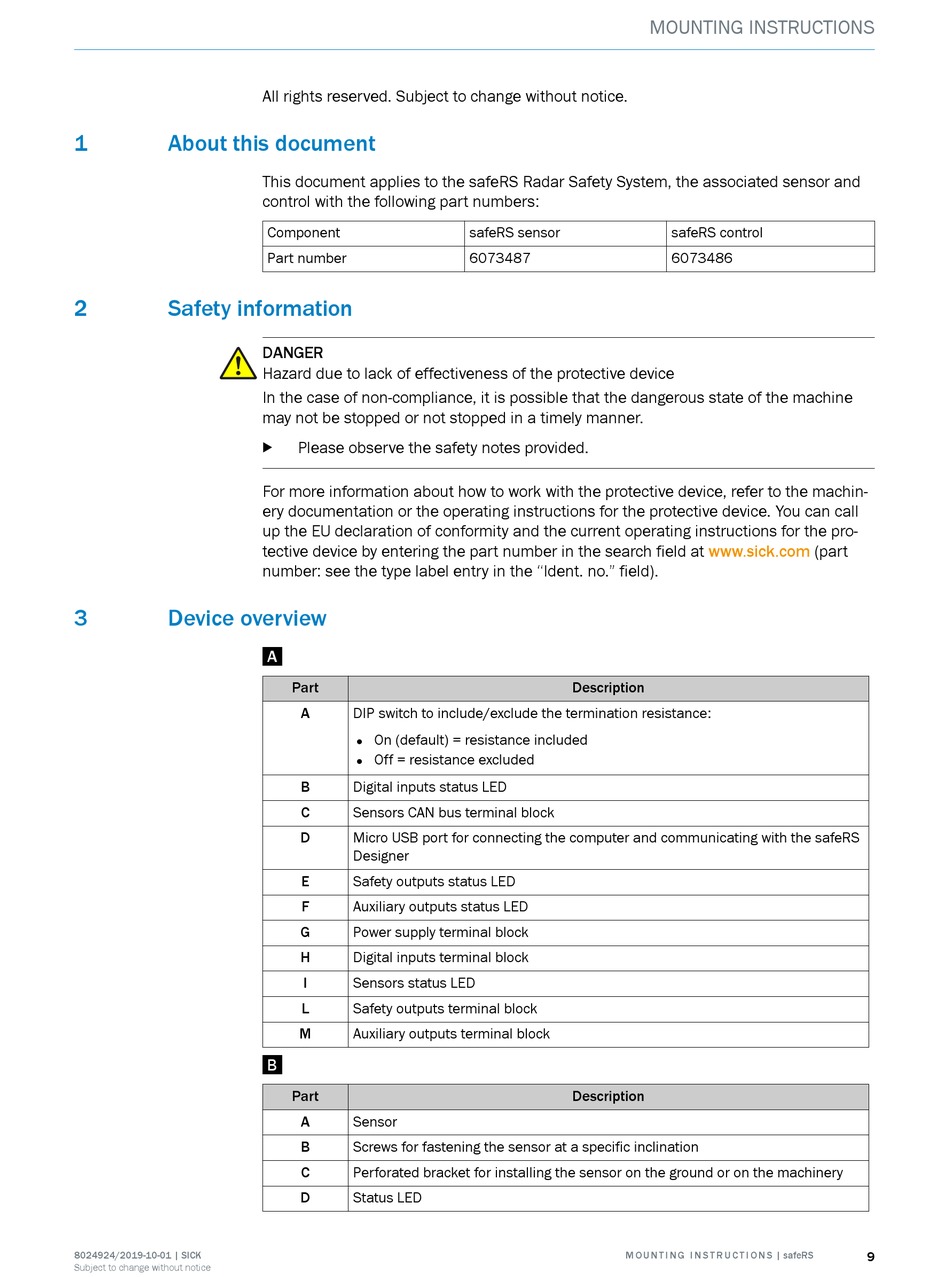

About this document

2

Safety information

3

Device overview

8024924/2019-10-01 | SICK
Subject to change without notice
All rights reserved. Subject to change without notice.
This document applies to the safeRS Radar Safety System, the associated sensor and
control with the following part numbers:
Component
Part number
DANGER
Hazard due to lack of effectiveness of the protective device
In the case of non-compliance, it is possible that the dangerous state of the machine
may not be stopped or not stopped in a timely manner.
Please observe the safety notes provided.
b
For more information about how to work with the protective device, refer to the machin‐
ery documentation or the operating instructions for the protective device. You can call
up the EU declaration of conformity and the current operating instructions for the pro‐
tective device by entering the part number in the search field at
number: see the type label entry in the "Ident. no." field).
A
Part
A DIP switch to include/exclude the termination resistance:
• On (default) = resistance included
• Off = resistance excluded
B Digital inputs status LED
C Sensors CAN bus terminal block
D Micro USB port for connecting the computer and communicating with the safeRS
Designer
E Safety outputs status LED
F Auxiliary outputs status LED
G Power supply terminal block
H Digital inputs terminal block
I Sensors status LED
L Safety outputs terminal block
M Auxiliary outputs terminal block
B
Part
A Sensor
B Screws for fastening the sensor at a specific inclination
C Perforated bracket for installing the sensor on the ground or on the machinery
D Status LED
safeRS sensor
6073487
Description
Description
M O U N T I N G I N S T R U C T I O N S | safeRS

MOUNTING INSTRUCTIONS

safeRS control
6073486
www.sick.com (part
9
